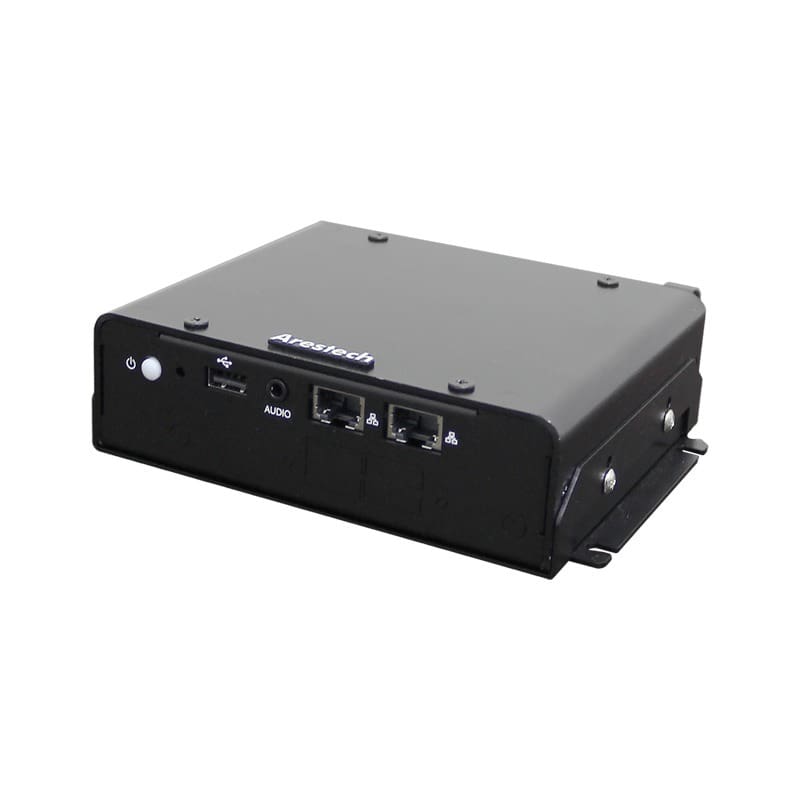

BPC-3023-1A1

Compact Intel® Celeron® N2930 Fanless Computer

  • Intel® Celeron® N2930 processor
  • 1x Mini PCIe expansion
  • Compact size and light weight
  • Dual Display with HDMI and VGA
Configure & Create Quote

Specifications

System
Processor Intel® Celeron® N2930 (2.16 GHz, 2M)
Chipset N/A
Graphics Integrated Intel® HD Graphics
Memory Up to 8GB SO-DIMM DDR3L
I/O
Ethernet 2-4x GbE
Video 1x VGA (Max. 1920 x 1200) 1x HDMI 1.4a (Max. 1920 x 1200) 1x Micro HDMI (Max. 1920 x 1200)
USB 1x USB 2.0 1x USB 3.0
Serial 1x RS-232 1x RS-232/422/485
Audio 1x Audio Out
Aux I/O -
Storage
SATA 1x Internal SATA for 2.5" SSD/HDD
mSATA 1x mSATA shared with full-size mini PCIe
Expansion
PCI Express -
PCI -
Mini PCIe 1x half-size mini PCIe socket 1x full-size mini PCIe socket shared with mSATA
Power Supply
Input 12V DC
Adapter -
Mechanical
Dimensions 5.51" (W) x 4.57" (D) x 1.67" (H)
Weight 1.32 lbs including SSD and RAM
Mounting Wall Mount
Environmental
Operating Temperature -20°C ~ 50°C
Storage Temperature -40°C ~ 85°C
Humidity 50°C at 80% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Certifications CE/FCC Class A
