12th Generation Fanless Embedded Computers Now Available at Industrial PC

12th Gen Intel® Core™ processors—a generation like no other before it. With unprecedented new performance hybrid architecture, 12th Gen Intel® Core™ processors offer a unique combination of Performance and Efficient-cores (P-core and E-core). And that means real-world performance, intuitively scaled to match whatever you’re doing.

Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel® 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance.

Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Browse 12th Gen Neousys Rugged Embedded Computers:

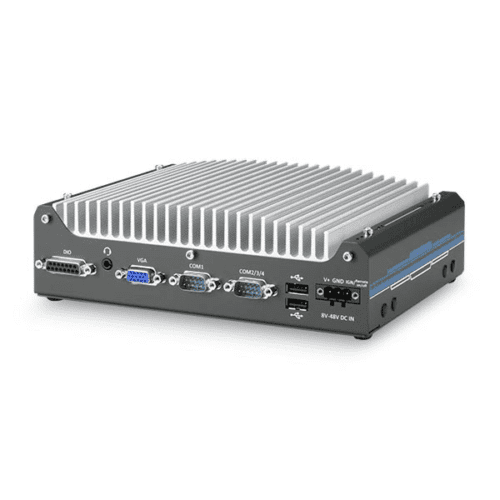

The Nuvo-9000 Series

Nuvo-9000 series inherits Neousys‘ patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot.

For users who need more flexible storage, Nuvo-9000LP has a 2.5″ HDD tray instead of an expansion Cassette to support a hotswappable 2.5″ HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity.

It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.

With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.

Create your IoT Advantage with 12th Gen Intel Core Processors.

Create your IoT Advantage with 12th Gen Intel Core Processors.

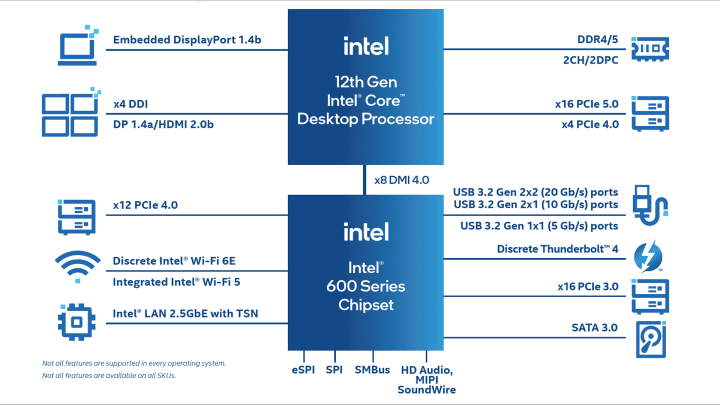

Innovative new high-performance chip design

12th Gen Intel® Core™ desktop processors are the first Intel® Core™ processors to feature performance hybrid architecture, Intel’s largest leap in Intel® Core™ Processor architecture and performance in years. This revolutionary chip design integrates up to eight Performance-cores, or P-cores, that enhance IoT workload consolidation, and up to eight Efficient-cores, or E-cores, that enhance background task management and multitasking. 12th Gen Intel® Core™ desktop processors drive up to 1.36x times faster in single-thread performance and up to 1.35x times faster in multi-thread performance3 vs. 10th Gen Intel® Core™ Processors.

Enhanced graphics performance for immersive, engaging video

Up to 32 graphics execution units (EUs) in the CPU design, based on Intel® UHD Graphics 770 driven by Intel® Xe Architecture, allows for eye-catching visuals. Delivers up to 1.94x times faster graphics performance compared to 10th Gen Intel® Core™ Processors. Up to four display pipes allow solution providers to deploy up to four independent 4K displays or up to 8K resolution in one display. Genlock video synchronization for Windows enables smooth video walls.

Fast AI with hardware acceleration and Intel® Xe Architecture

12th Gen Intel® Core™ desktop processors enable high-performing AI for machine vision use cases with fast AI inferencing. Up to 32 graphics execution units allow for a high degree of parallelization for AI workloads, combined with built-in AI acceleration from Intel® Deep Learning Boost (Intel® DL Boost) and the Intel® Distribution of OpenVINO™ toolkit. Up to 2.81x times faster in GPU image classification inference performance.

Real-Time Capabilities

Real-time-capable features Intel® Time Coordinated Computing (Intel® TCC) and Time-Sensitive Networking (TSN) help ensure smooth operation across multiple edge devices in industrial implementations.

12th Gen Intel Core Processors

Use Cases

Retail, Banking, Hospitality,
Education

Build video walls with up to four 4K60 HDR concurrent displays and AI capabilities for analytics. Point of sale, kiosks, video walls, digital security, and digital signage.

Industrial

Converge infrastructure and deploy machine vision/AI on the factory floor. Support real-time features on the desktop platform. Assembly-line defect detection, human-machine interfaces, and industrial PCs.

Healthcare

Accelerate AI to assist with medical advances. Improve graphics for enhanced imaging. Ultrasound imaging, medical carts, endoscopy, and clinical devices.

Video

Deploy fast object recognition, high-channel density for AI video analytics. AI video at the edge and network video recorders (NVRs).
