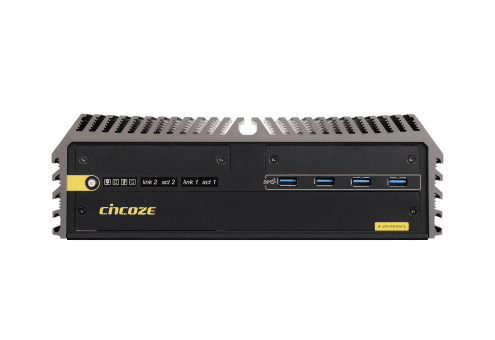

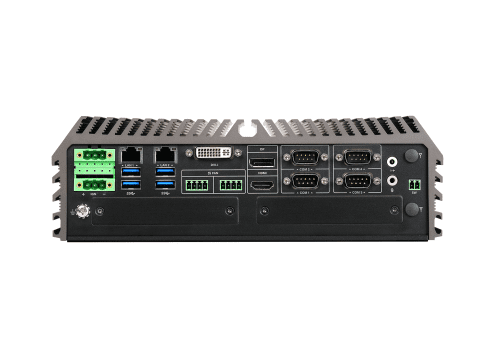

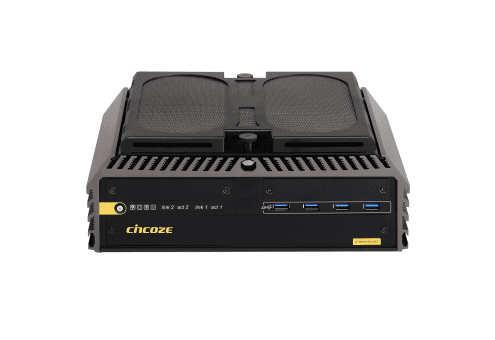

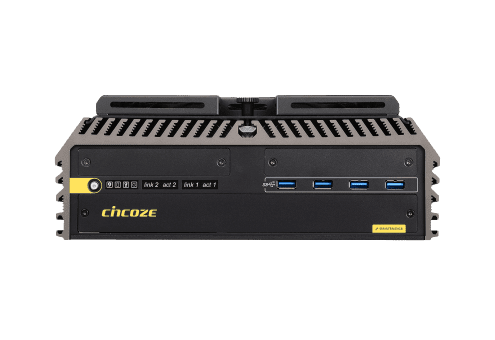

GM-1000
9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket
- Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores
- Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
- 2x DDR4 SO-DIMM sockets, up to 2666MHz, 128GB
- Supports wide operating temperature (-40°C – 70°C) and vibration/shock tolerance (5G/50G)
- 260 mm x 200 mm x 85 mm compact footprint
- Flexible functionality expansions:
- – M.2 E key (CNVi), full-size Mini-PCIe and M.2 M Key (NVMe SSD)
- – Proprietary CMI interface for various I/O expandability
- – Proprietary CFM interface for PoE+ or Power Ignition Sensing
Generous 360W Power Budget Core Performance
The 360W power allotment provided by the GM-1000’s specialized power design counteracts the typical limitations of fanless embedded systems. A unique thermal design, which combines independent CPU and GPU cooling systems with an extruded aluminum chassis with integrated copper heat piping, ensures operational reliability in the field.
High Speed I/O
High-speed vision cameras necessitate high-speed connections for near-instantaneous image processing and analysis data transfer. The GM-1000 offers high-speed I/O interfaces such as USB3.2 Gen2 and GbE LAN. Through proprietary modules, PoE, additional LAN, and 10GbE can be accessed.
MXM GPU Expansion
GPUs are indispensable for ultrafast image processing. The expansion slot for MXM 3.1 Type A/B is compatible with modern MXM GPUs. Standard options include an Nvidia Quadro RTX3000/T1000 or AMD Radeon E9174 GPU, but enhancements to even faster MXM GPUs (up to 160 W) can accelerate performance even further.
Compact Size

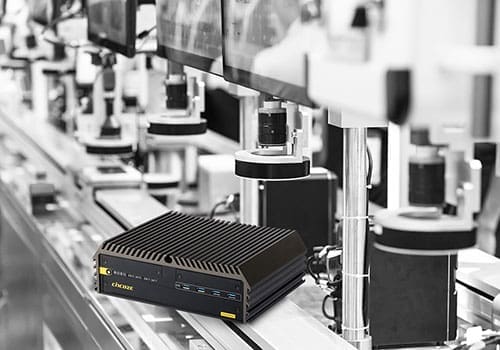

The GM-1000’s diminutive dimensions of 260 x 200 x 85 mm (WxLxH) make it an attractive option for space-constrained applications such as robotic arms and automatic optical inspection (AOI) equipment.
Cincoze GM-1000 Specifications
| System | |
| Processor | • 9th Generation Intel® Coffee Lake-R CPU: - Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake CPU: - Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W - Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W - Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W - Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W - Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W |
| Chipset | Intel C246 |
| Graphics | • Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI) |
| Memory | 2x DDR4 2666/2400 MHz SO-DIMM Sockets * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz Supports ECC / non-ECC Type Up to 64GB |
| AUDIO | Realtek® ALC888, High Definition Audio |
| BIOS | AMI BIOS |
| I/O | |
| HDMI | 1x HDMI Connector (4096 x 2160 @ 30Hz) |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 |
| DVI | 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60Hz) |
| LAN | 2x GbE LAN Ports (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 |
| Serial | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB | 4x 10Gbps USB3.2 Gen2 Ports, Type-A 4x 5Gbps USB3.2 Gen1 Ports, Type-A |
| Expansion | |
| MXM Socket | 1x MXM Carrier Board Interface for MXM GPU Module Expansion |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules - CFM-IGN01: Ignition Sensing Function |
| Mini PCI Express | 3x Full-size Mini-PCIe Sockets |
| M.2 | 1x M.2 2230 Socket (Key E), support Intel CNVi Module |
| SIM Socket | 12x SIM Socket |
| Storage | |
| SSD/HDD | 2x SATA III (6Gbps) Front Accessible 2.5” HDD/SSD Trays (up to 15mm in Height) |
| mSATA | 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) |
| RAID | Supports S/W RAID 0, 1, 5 & 10 |
| PCIe | 1x PCIe x4 M.2 Key M 2280 Socket, Supports NVMe SSD |
| Power | |
| Power Type | AT/ATX |
| Power Input Voltage | 9-48 VDC, Single Power Source |
| Total Power Budget/td> | 360W |
| Connector | 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector |
| Mechanical | |
| Dimensions | 260 x 200 x 85 mm |
| Weight | 4.6kg |
| Mounting | Wall / VESA / DIN Rail / Side |
| Environmental | |
| Operating Temperature | - 35W CPU: -40°C - 70°C - 65W CPU + FAN: -40°C - 60°C - 80W CPU + FAN: -40°C - 55°C * PassMark BurnInTest: 100% CPU, 2D Graphics (without thermal throttling) * For GM-1000 + MXM GPU Module operating temperature, please refer to product datasheet * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 95% RH @ 70°C (Non-condensing) |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
Configure & Create a Quote:
Order the GM-1000
The high-speed picture capturing and processing requirements of machine vision applications are difficult for many processors to handle. Because the combination yields the quickest and most accurate results for image processing and data analysis, increasing productivity and efficiency, both CPU computational capability and GPU graphics acceleration are required. Automatic inspection, process control, and robot guiding all depend on machine vision.
The Cincoze GM-1000 GPU Computer is a machine vision computer with adequate extra resources for artificial intelligence and image processing in addition to machine vision applications. All this in a sturdy, portable, and trustworthy package.
