CINCOZE

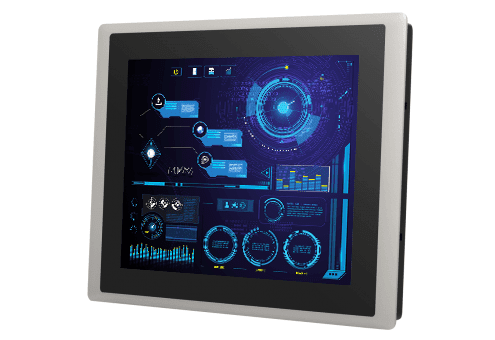

CV-115 / P1101
15″ TFT-LCD Panel PC, w/ Intel® Atom® / Pentium® Processor, 4x USB, 4x COM, 1x VGA and 1x DisplayPort
Highlights of the Cincoze CV-115 / P1101 Series

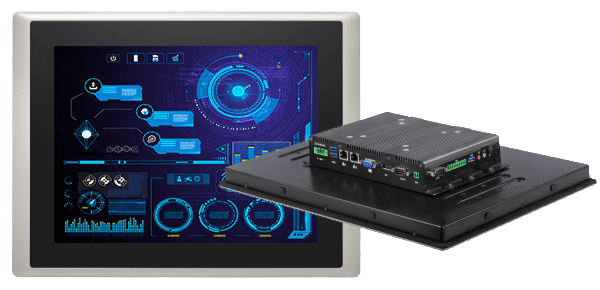

Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-115/P1101 Series also supports Convertible Display System (CDS) technology.
- 15″ TFT-LCD XGA with Resistive 5-wire / Projected Capacitive Touch
- Onboard Intel® Atom® / Pentium® Processor
- Triple Independent Displays (via VGA and DisplayPort outputs)
- 2x LAN, 4x USB, 4x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- Designed with Aluminum Die-Casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Supports CDS Technology, Ignition Sensing and Power over Ethernet
Configure & Create a Quote:
CV-115 Specifications
| Display | |
| LCD Size | 15" (4:3) |
| Max Resolution | 1024 x 768 |
| Brightness (cd/m2) | 350 |
| LCD Color | 16.2M |
| Backlight MTBF | 50,000 hrs (LED) |
| Touch Screen | |
| Touchscreen Type | CV-115R: Resistive 5-Wire CV-115C: Projected Capacitive |
| Physical | |
| Dimension (WxDxH) | 408 x 312.4 x 59.2 mm |
| Weight | 4.36kg |
| Mechanical Construction | Die-Casting Flat Surface |
| Environment | |
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | 0°C to 65°C (with Industrial Grade peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 65°C |
| Relative Humidity | 80% RH @ 50°C (Non-Condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
P1101 Specifications
| System | |
| Processor | Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Supports up to 8GB (un-buffered and non-ECC) |
| Graphics | |
| Graphics Engine | Integrated Intel® HD Graphics 505 |
| Maximum Display Output | Supports Triple Independent Display |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface |
| VGA | 1x VGA (1920 x 1200 @60Hz) |
| DP | 1x DisplayPort (4K x 2K @60Hz) |
| Audio | |
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out / Mic-in | 1x Line-out, Phone Jack 3.5mm 1x Mic-in, Phone Jack 3.5mm |
| I/O | |
| LAN / USB | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 4x USB 3.2 Gen1 (Type A) |
| Serial Port / DIO | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block |
| Storage | |
| SSD/HDD | 1x 2.5” HDD Drive Bay (SATA 3.0) |
| SIM Socket | 1 x SIM Socket |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) |
Order the Cincoze CV-115/P1101 Series
Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-115/P1101 Series is appropriate for harsh environments and critical applications.
