Intel® Pentium® N4200 Processor Compact Fanless Embedded Computer

Cincoze DC-1200

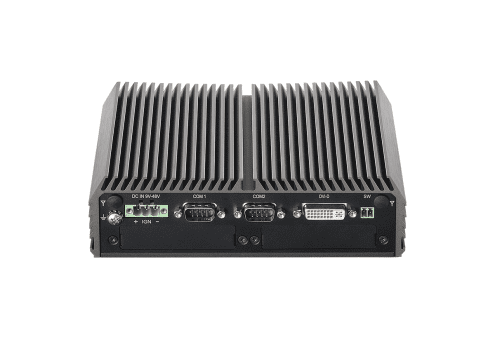

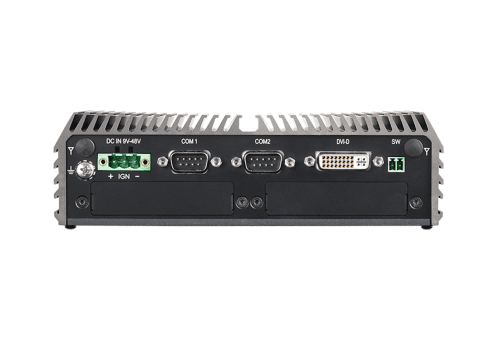

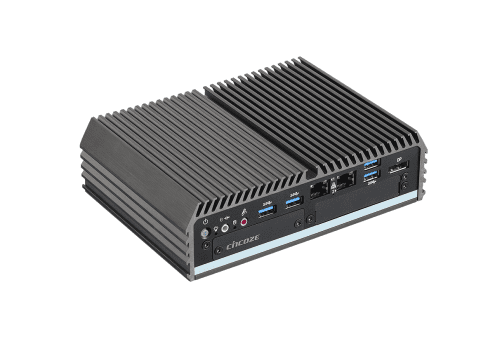

Cincoze DC-1200 Intel® Pentium® N4200 Processor Compact

Product Highlights:

  • Onboard Intel® Pentium® N4200 Processor
  • Supports Triple Independent Display

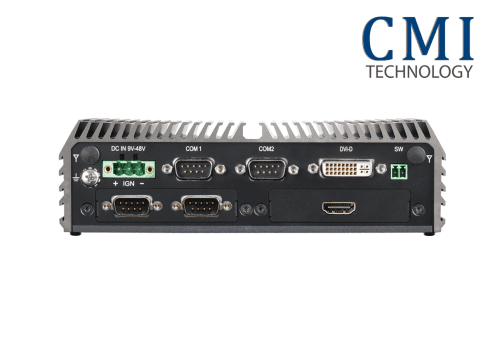

  • Supports CMI Interface for I/O Expandability
  • Supports PoE+ and Power Ignition Function (with optional CFM modules)
  • 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
  • Compact Size (185 x 131 x 56.5 mm)
  • Wide Operating Temperature -40°C to 70°C
  • E-Mark (E13, No. 10R-0515075), LVD EN62368-1

Cincoze DC-1200 Specifications

CPU Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
BIOS AMI BIOS, 8MB SPI Flash ROM built on board
USB 3.2 Gen1 4
COM Port 2 (DB9, RS-232/422/485 with Auto Flow Control (Supports 5V/12V))
DVI-D 1 (1920 x 1080 @60Hz)
DP 1 (4096 x 2160 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160.
GbE LAN 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE)
Mini PCIe Socket 2 (Full-size)
SIM Socket 2 (for Signal Redundancy)
Control Function Module (CFM) Interface 2
Combined Multiple I/O (CMI) Interface 2
2.5" HDD/SSD Drive Bay 1 (SATA 3.0)
mSATA 1 (SATA 3.0, Shared by Mini-PCIe Socket)
Power Supply
Power Type AT/ATX
Power Supply Voltage 9~48VDC
Dimensions 185 x 131 x 56.5 mm
Weight 1.42kg
Mounting Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit)
Operating Temperature -40°C to 70°C
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
* w/ SSD, according to IEC60068-2-27
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
* w/ SSD, according to IEC60068-2-64

Order the DC-1200

A robust and adaptable industrial computer, the Cincoze DC-1200 was created to handle the rigorous demands of numerous applications. The Intel Core CPU in this sturdy and small device ensures excellent performance and effective processing skills. A variety of I/O ports, including several USB, Ethernet, serial, and display connectors, are available on the DC-1200, allowing for easy connectivity to a large range of peripherals and devices. It is appropriate for severe situations thanks to its sturdy structure, wide working temperature range, and resistance to shock and vibration. The Cincoze DC-1200 is a perfect choice for difficult applications including industrial automation, machine vision, transportation, and more thanks to its cutting-edge features.
