Starting at $560.08
DA-1100
PRODUCT HIGHLIGHTS
- Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
- Supports Triple Independent Display
- Supports PoE+ Function (with optional CFM module)
- Supports CMI Interface for I/O Expandability
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
- Ultra Compact Size (150 x 105 x 52.3 mm)
- Wide Operating Temperature -40°C to 70°C
- Safety: UL, cUL, CB, IEC/EN62368-1
About the Computer

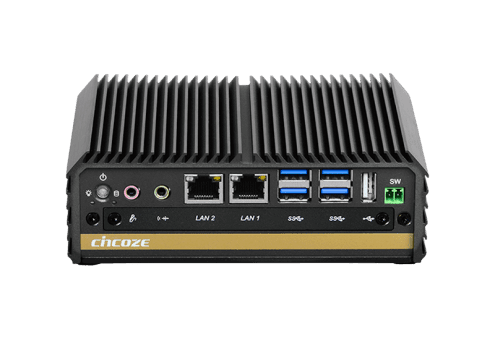

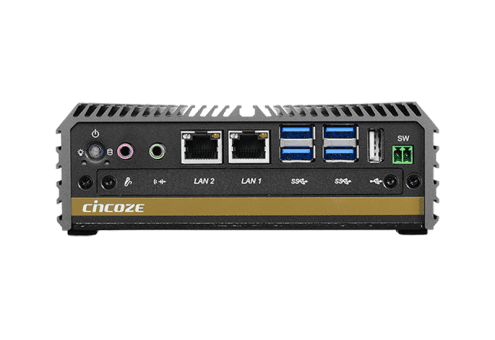

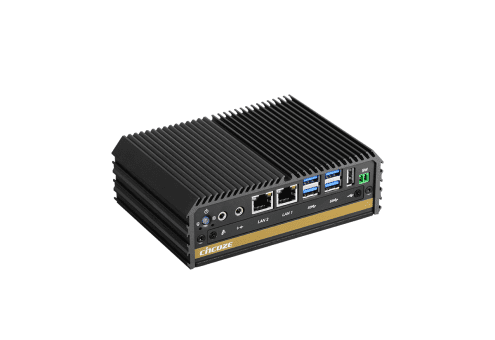

Cincoze DA-1100 Embedded Computer
The Cincoze DA-1100 is a compact and rugged embedded computer designed for industrial applications that require reliable and efficient computing performance. Powered by an Intel Atom processor, the DA-1100 offers a balance between power efficiency and processing capability. Its small form factor allows for easy integration into space-constrained environments.
The computer features a variety of I/O ports, including USB, Ethernet, serial, and display interfaces, enabling seamless connectivity to peripherals and devices. Additionally, the DA-1100 is built to withstand harsh operating conditions, with its wide temperature range, shock resistance, and vibration resistance. With its robust design and reliable performance, the Cincoze DA-1100 is an excellent choice for industrial automation, edge computing, and surveillance applications.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
Configure and Order the DA-1100
* Model and Processor are required selections
Cincoze DA-1100
$560.08
Intel® Pentium® N4200 / Celeron® N3350 Processor Affordable Fanless Embedded Computer
- Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
- Supports Triple Independent Display
- Supports PoE+ Function (with optional CFM module)
- Supports CMI Interface for I/O Expandability
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
- Ultra Compact Size (150 x 105 x 52.3 mm)
- Wide Operating Temperature -40°C to 70°C
- Safety: UL, cUL, CB, IEC/EN62368-1
Additional information
| Processor | Hexa-Core Intel® Core™ i5-8000, Hexa-Core Intel® Core™ i7-8000, Quad-Core Intel® Core™ i3-8000 |
|---|---|
| Operating System | Windows 10 Pro (64-bit) |
Related products
Not ready to order, or not finding your exact configuration? No problem.
Build your custom quote here.
SHIPS FROM INDIANA
3-YEAR WARRANTY
30-DAY TRIAL PERIOD
ASSEMBLED IN THE US
Need help?
Call (888) 255-5508
Cincoze DA-1100 Specifications
| System | |
| CPU | • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz |
| BIOS | AMI BIOS, 8MB SPI Flash ROM built on board |
| I/O | |
| DVI-1 | 1 (1920 x 1080 @60Hz) |
| GbE LAN | 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE) |
| USB | 4x 5Gbps USB 3.2 Gen1, Type A 1x 480Mbps USB 2.0, Type A |

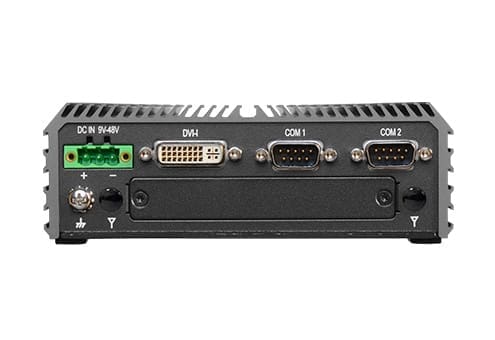

| COM Port | 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control) |
| Expansion | |
| Mini PCIe Socket | 2 (Full-size) |
| SIM Socket | 1 |
| Control Function Module (CFM) Interface | 1 |
| Combined Multiple I/O (CMI) Interface | 1 |
| Storage | |
| SATA Drive Bay | 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| mSATA | 1 (SATA 3.0, Shared by Mini-PCIe Socket) |
| Power Supply | |
| Power Type | AT/ATX |
| Power Supply Voltage | 9~48VDC |
| Mechanical | |
| Dimensions | 150 x 105 x 52.3 mm |
| Weight | 0.87kg |
| Mounting | Wall / VESA (Optional DIN-Rail/Side Mounting) |
| Environmental | |
| Operating Temperature | -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C |
| Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
Order the DA-1100
The Cincoze DA-1100 is a compact and rugged embedded computer designed for industrial applications that require reliable and efficient computing performance. Powered by an Intel Atom processor, the DA-1100 offers a balance between power efficiency and processing capability. Its small form factor allows for easy integration into space-constrained environments. The computer features a variety of I/O ports, including USB, Ethernet, serial, and display interfaces, enabling seamless connectivity to peripherals and devices. Additionally, the DA-1100 is built to withstand harsh operating conditions, with its wide temperature range, shock resistance, and vibration resistance. With its robust design and reliable performance, the Cincoze DA-1100 is an excellent choice for industrial automation, edge computing, and surveillance applications.
