Starting at $1739.44
DS-1400 Series

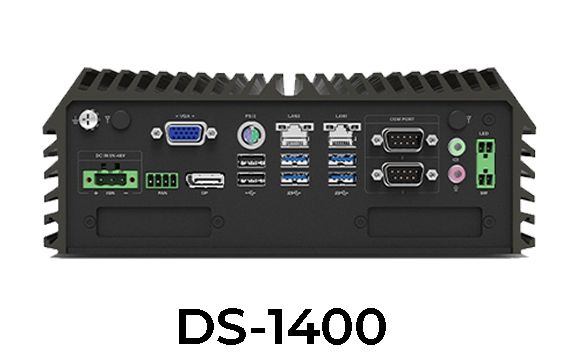

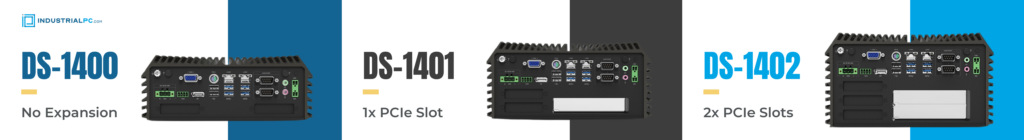

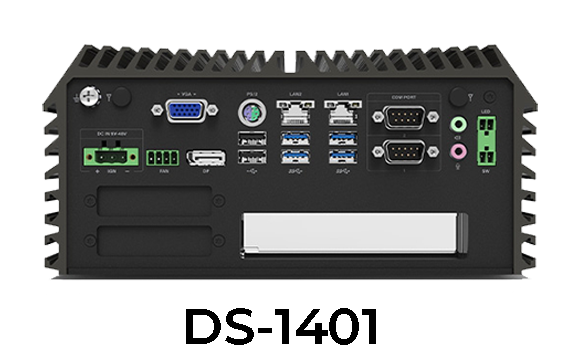

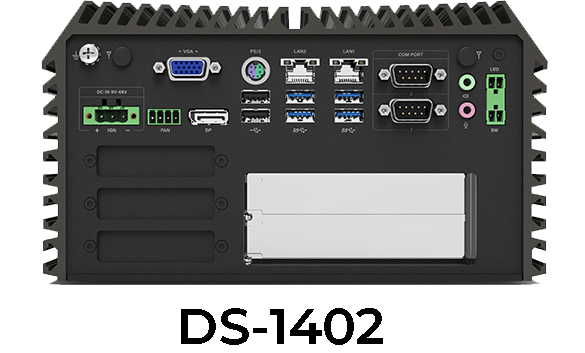

DS-1400 (no expansion), DS-1401 (1x PCIe), DS-1402 (2x PCIe)
PRODUCT HIGHLIGHTS
- Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5″ SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
About the Computer

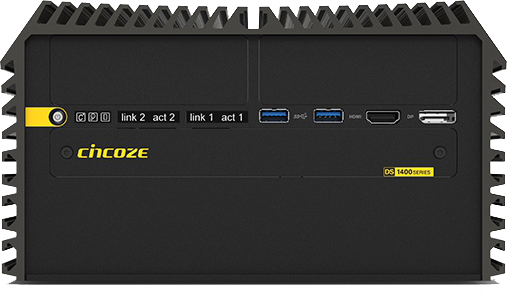

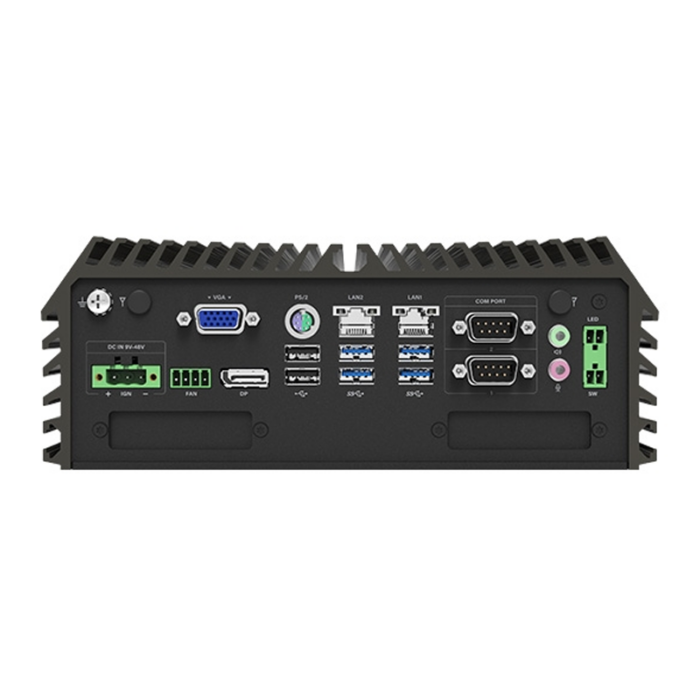

Cincoze DS-1400 Embedded Computer
The DS-1400 is a high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities.
To meet various application needs, it can flexibly expand the required I/O and specific functions through Cincoze’s unique CMI, CFM, and MEC expansion modules.
Moreover, the DS-1400 has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
Configure and Order the DS-1400
* Model and Processor are required selections
Cincoze DS-1400
$1,739.44
Cincoze DS-1400 Powered by 12th Gen Intel® Core™ Series Processors
- Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5″ SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
Additional information
| Processor | Hexa-Core Intel® Core™ i5-8000, Hexa-Core Intel® Core™ i7-8000, Quad-Core Intel® Core™ i3-8000 |
|---|---|
| Operating System | Windows 10 Pro (64-bit) |
Related products
Not ready to order, or not finding your exact configuration? No problem.
Build your custom quote here.
SHIPS FROM INDIANA
3-YEAR WARRANTY
30-DAY TRIAL PERIOD
ASSEMBLED IN THE US
Need help?
Call (888) 255-5508
DS-1400
Specifications
| System | |
| Processor | 12th Generation Intel® Alder Lake-S Series CPU: – Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W – Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W – Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W – Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W – Intel® Core™ i9-12900aTE 16 Cores Up to 4.8 GHz, TDP 35W – Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W – Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W – Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W – Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W – Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W – Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W – Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W |
| Chipset | Intel R680E Chipset |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB |
| BIOS | AMI BIOS |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Audio | Realtek® ALC888, High Definition Audio |
| Mechanical | |
| Dimensions | 227 x 261 x 88 mm |
| Weight | 4.5kg |
| Mounting | Wall |
| Expansion | |
| Mini PCI Express | 3x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket |
| CMI (Combined Multiple I/O Interface) | 2 x High Speed CMI Interface for optional CMI Module Expansion 2 x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion |
| I/O | |
| Ethernet | 2x GbE LAN, RJ45 – GbE1: Intel® I219 – GbE2: Intel® I210 |
| Video | 2x DisplayPort, supporting 4096 x 2160 1x HDMI, supporting 4096 x 2160 1x VGA, supporting 1920 x 1080 |
| USB | 2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A 2x 480Mbps USB 2.0, Type A |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| Storage | |
| SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
| RAID | Support RAID 0/1/5/10 |
| Power Supply | |
| Power Type | AT/ATX |
| Power Input | 9 – 48VDC, 3-pin Terminal Block |
| Environmental | |
| Operating Temperature | 35W TDP Processor: -40°C to 70°C 65W TDP Processor: -40°C to 50°C (With External Fan Kit) – With extended temperature peripherals; Ambient with air flow – According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 95%RH @ 70°C (non-Condensing) |
| Vibration | MIL-STD-810G |
| Shock | MIL-STD-810G |
