Starting at $1,525.04
Nuvo-9000E / 9000DE
PRODUCT HIGHLIGHTS
- 12th gen. Intel® Core™ i5/i7/i9 CPUs with up to 16 cores
- Up to 6x GbE ports with optional PoE+
- -20 ~ 75°C operating temperature with 35W CPU
- 2x 2.5″ HDD/SSD and M.2 storage options with RAID support
- Supports Windows 11 Pro, Windows 10 Pro, Windows 10 IoT, and select Linux distributions
About the Computer

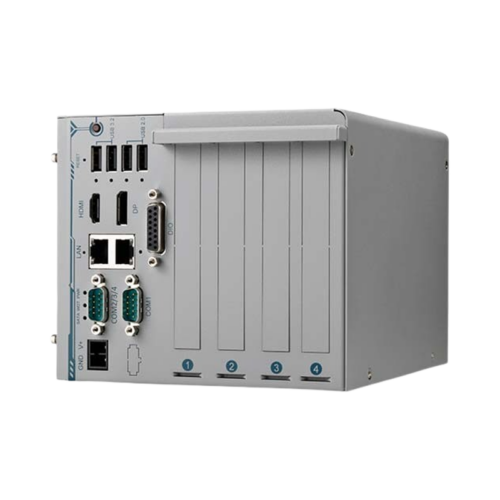

Neousys Nuvo-9000E /9000DE Embedded Computer
The Nuvo-9000E is another remarkable rugged computer offered by Neousys, renowned for its expertise in producing reliable embedded systems.
This model is designed to meet the rigorous demands of industrial environments, making it an ideal solution for applications in sectors such as automation, machine vision, and AI computing.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
Nuvo-9000E
Specifications
| System | |
| Processor | Intel® Core™ i9-12900E 16-Core (5.0 GHz (max), 14M, 65W TDP) Intel® Core™ i9-12900TE 16-Core (4.8 GHz (max), 14M, 35W TDP) Intel® Core™ i7-12700E 12-Core (4.8 GHz (max), 12M, 65W TDP) Intel® Core™ i7-12700TE 12-Core (4.6 GHz (max), 12M, 35W TDP) Intel® Core™ i5-12500E 6-Core (4.5 GHz (max), 7.5M, 65W TDP) Intel® Core™ i5-12500TE 6-Core (4.3 GHz (max), 7.5M, 35W TDP) |
| Chipset | Intel® Q670 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 64GB SO-DIMM DDR5 4800 |
| AMT | Supports Intel® vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| Expansion | |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette (Nuvo-9002E/9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/9006DE) |
| PCI | 1x PCI slot in Cassette (Nuvo-9002P/9006P) |
| Mini PCIe | 1x mini PCI-E socket |
| M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
| Expandable I/O | 1x MezIO™ expansion port for MezIO™ modules |
| Mechanical | |
| Dimensions | Nuvo-9000E /P 9.45″ (W) x 8.86″ (D) x 3.54″ (H) 240 mm (W) x 225 mm (D) x 90 mm (H) Nuvo-9000DE 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | Nuvo-9000E/P 9.7 lbs including SSD and RAM Nuvo-9000DE TBD |
| Mounting | Wall Mount DIN-Rail Mount (optional) |
| I/O | |
| Ethernet | 1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9002E/P/DE) with screw-lock 5x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9006E/P/DE) with screw-lock |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
| Video | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| USB | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen 1×1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports |
| Serial | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage | |
| SATA | 2x internal SATA for 2.5″ SSD/HDD, supporting RAID 0/1 |
| M.2 NVME | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Power Supply | |
| Input | 1x 3-pin power connector for 8~48V DC |
| Adapter | 160W Power Adapter (optional) |
| Ignition Control | Optional |
| Remote Ctrl & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C (35W TDP) -25°C ~ 50°C (65W TDP) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Certifications | CE/FCC Class A, according to EN 55022 & EN 55024 |
Neousys Nuvo-9000E:
Rugged Reliability for Demanding Industries
The Nuvo-9000E is another remarkable rugged computer offered by Neousys, renowned for its expertise in producing reliable embedded systems. This model is designed to meet the rigorous demands of industrial environments, making it an ideal solution for applications in sectors such as automation, machine vision, and AI computing.
The Nuvo-9000E excels in ruggedness and durability. It is built with a fanless design, ensuring silent operation and eliminating potential points of failure associated with fan-based cooling. The computer is constructed with industrial-grade components and has undergone stringent testing to meet rigorous standards for shock and vibration resistance. With an extended operating temperature range of -25°C to 60°C, it can reliably function in challenging conditions, including extreme temperatures.
Order the Neousys Nuvo-9000E
Performance is a key strength of the Nuvo-9000E. It supports high-performance Intel processors, providing exceptional computing power to handle demanding applications and complex tasks. The computer offers multiple expansion slots, allowing users to customize their system by adding various I/O modules, such as additional LAN ports, serial ports, or fieldbus interfaces. This flexibility enables seamless integration into diverse industrial environments.
Connectivity options are abundant in the Nuvo-9000E. It features multiple USB 3.1 Gen 2 ports for high-speed data transfer, multiple Gigabit Ethernet ports for reliable networking, and HDMI/DisplayPort outputs for video display. The computer also supports wireless connectivity with options for Wi-Fi and 4G LTE, ensuring seamless communication in remote or mobile deployments. Additionally, the Nuvo-9000E provides ample storage options, including multiple SATA ports and M.2 slots, allowing for efficient data storage and retrieval.
The US-Leader in Industrial Computing Since 1996
Founded in 1996, Industrial PC, Inc. has grown to become the leader in high-performance, industrial-grade computing solutions for the most rugged and demanding environments.
Headquartered in Indianapolis, our team of experienced and trusted experts is dedicated to providing our clients throughout the world with a host of state-of-the-art industrial computer solutions to meet their precise needs.
Take your new computer for a
test & trial period
Nuvo 9000E Industrial Applications
Given its compact size, powerful performance, and rich I/O functions, the Nuvo-9000E is a valuable asset for a variety of industrial applications.
Here are just a couple examples:
