Starting at $818.20
POC-700
PRODUCT HIGHLIGHTS
- Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores or Atom® x7425E
- Up to 16GB DDR5-4800 SODIMM
- -25 °C to 70 °C rugged wide temperature operation
- 4x GbE ports PoE+ / 4x USB3.2 Gen 2 with screw-lock
- M.2 2280 M key SATA socket
- DP++ / HDMI 1.4b dual display outputs
- 4-CH isolated DI + 4-CH isolated DO
- Front I/O access DIN-mounting design
- MezIO® compatible
About the Computer

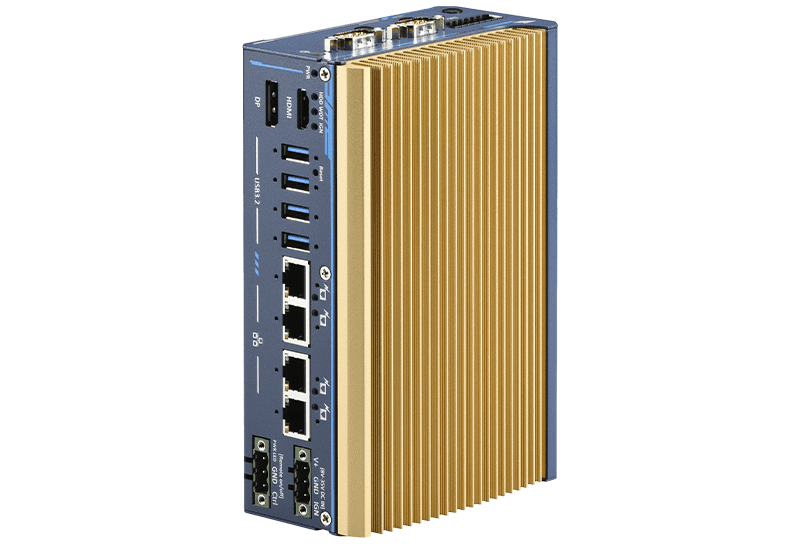

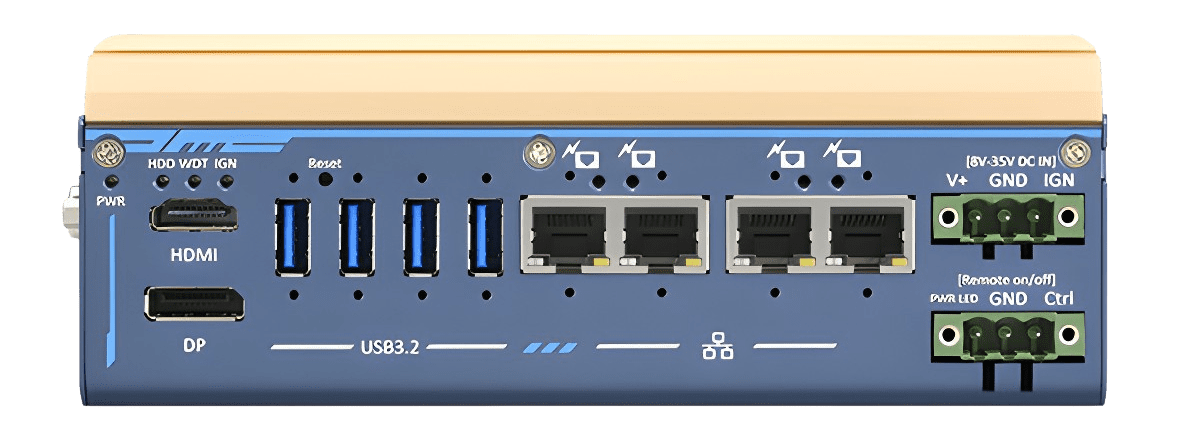

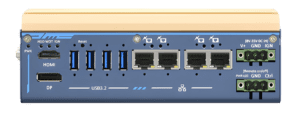

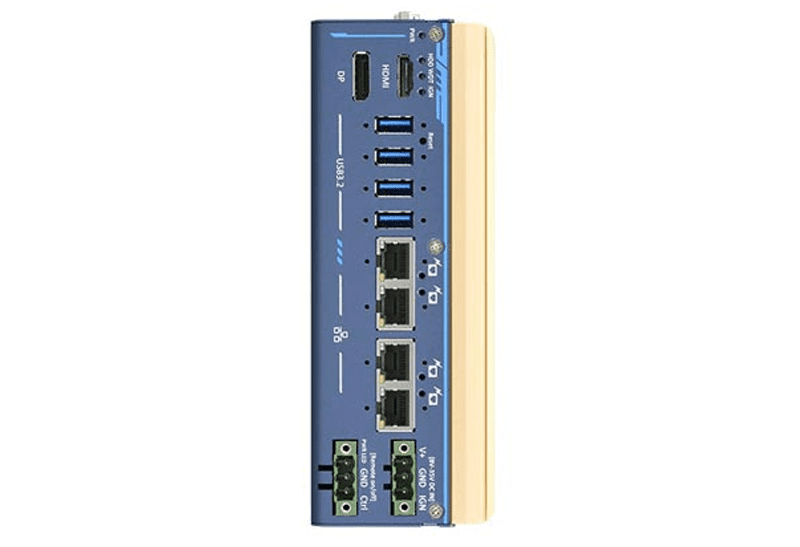

Neousys POC-700 Embedded Computer
One of Industry’s First Core i Ultra-compact Fanless Embedded Computers.
POC-700 is Neousys’ next-generation ultra-compact embedded controller, with a choice of the latest Intel® Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
Configure and Order the POC-700
* Model and Processor are required selections
POC-700
$818.20
Intel® Core™ i3-N305/ Atom® x7425E Ultra-compact Embedded Computer with 4x PoE+, USB 3.2, and MezIO® Interface
- Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores or Atom® x7425E
- Up to 16GB DDR5-4800 SODIMM
- -25 °C to 70 °C rugged wide temperature operation
- 4x GbE ports PoE+ / 4x USB3.2 Gen 2 with screw-lock
- M.2 2280 M key SATA socket
- DP++ / HDMI 1.4b dual display outputs
- 4-CH isolated DI + 4-CH isolated DO
- Front I/O access DIN-mounting design
- MezIO® compatible
Additional information
| Processor | Hexa-Core Intel® Core™ i5-8000, Hexa-Core Intel® Core™ i7-8000, Quad-Core Intel® Core™ i3-8000 |
|---|---|
| Operating System | Windows 10 Pro (64-bit) |
Related products
Not ready to order, or not finding your exact configuration? No problem.
Build your custom quote here.
SHIPS FROM INDIANA
3-YEAR WARRANTY
30-DAY TRIAL PERIOD
ASSEMBLED IN THE US
Need help?
Call (888) 255-5508
POC-700 Series
Specifications
POC-700 Series
Specifications
| System | |
|---|---|
| Processor | POC-715 Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP)POC-712 Intel® Alder Lake Atom® x7425E processor (4C/4T, 1.5 /3.4 GHz, 12W TDP) |
| Graphics | POC-715 Integrated Intel® UHD Graphics with 32EUsPOC-712 Integrated Intel® UHD Graphics with 24EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM | Supports TPM 2.0 (fTPM/ dTPM) |
| Panel I/O Interface | |
|---|---|
| Ethernet | 4x Gb Ethernet ports by Intel® I350-AM4 |
| PoE+ | POC-715 IEEE 802.3at PoE+ on port #1~ 4POC-712 n/a |
| Native Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB | 4x USB 3.2 Gen2 ports with screw-lock |

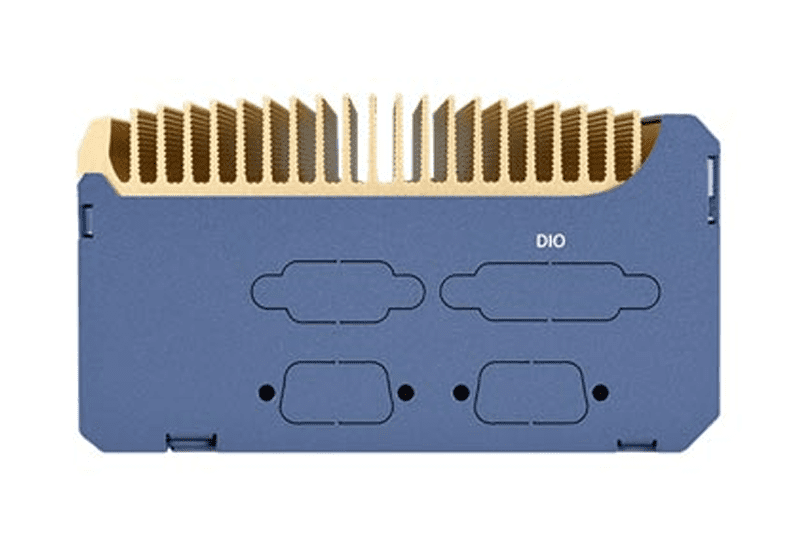

| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Storage Interface | |
|---|---|
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) |
| Expansion Bus | |
|---|---|
| Mini-PCIe | 1x full-size mini PCI Express socket with internal micro SIM socket |
| Expandable I/O | 1x MezIO® expansion interface for Neousys MezIO® modules |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input 1x 3-pin pluggable terminal block for 12 to 35V DC input (UL series) |
| Remote Ctrl.& LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 64 (W) x 116 (D) x 176 (H) mm |
| Weight | 1.2kg |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Fan | Optional external-accessible 80mm x 80mm fan for system heat dissipation |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 70°C* *For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required. |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.6, Category 4 |
| Shock | MIL-STD-810H, Method 516.6, Procedure I |
| Safety | EN62368-1 |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55035 |
| Safety | UL 62368-1, IEC 62368-1 (UL series only) |
POC-700: Industrial Power in a Compact Package
Neousys POC-700 is powered by Intel’s Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom® x7425E featuring 4-core/ 4-thread with 24EUs UHD Graphics to support Intel OpenVINO™ for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance.
It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, POC-700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.
Order the POC-700
The Neousys POC-700 series packs impressive power into its ultra-compact design. Utilizing Intel’s Alder Lake processors, including the 8-core i3-N305 with enhanced UHD Graphics, and fast DDR5 memory, it excels at AI inference and demanding applications. Four USB 3.2 Gen2 and PoE+ ports with screw-lock mechanisms ensure reliable connectivity for machine vision setups. Despite its small size, the POC-700 offers an M.2 slot, mini-PCIe socket, and isolated DIO for flexible expansion and control.
