Starting at $366.59
SB-142-1J64
PRODUCT HIGHLIGHTS
- Intel® Celeron® J6412 CPU for smooth multitasking and efficient processing
- Quad Gigabit LAN for high-speed networking and data transfer
- 4K Ultra HD video output via HDMI and DisplayPort
- M.2 SSD storage for fast data access
- Compact and fanless design for quiet, reliable operation in harsh conditions
- Wide operating temperature range (-20°C to 60°C)
- Multiple expansion options, including GPIO and optional 3G/4G module
- Multiple mounting options: Desk-mount, wall-mount, or DIN-rail
About the Computer

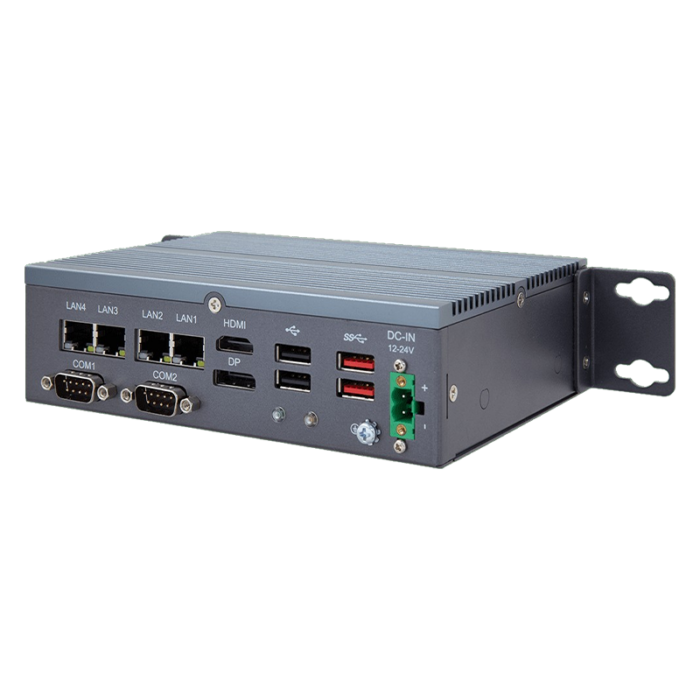

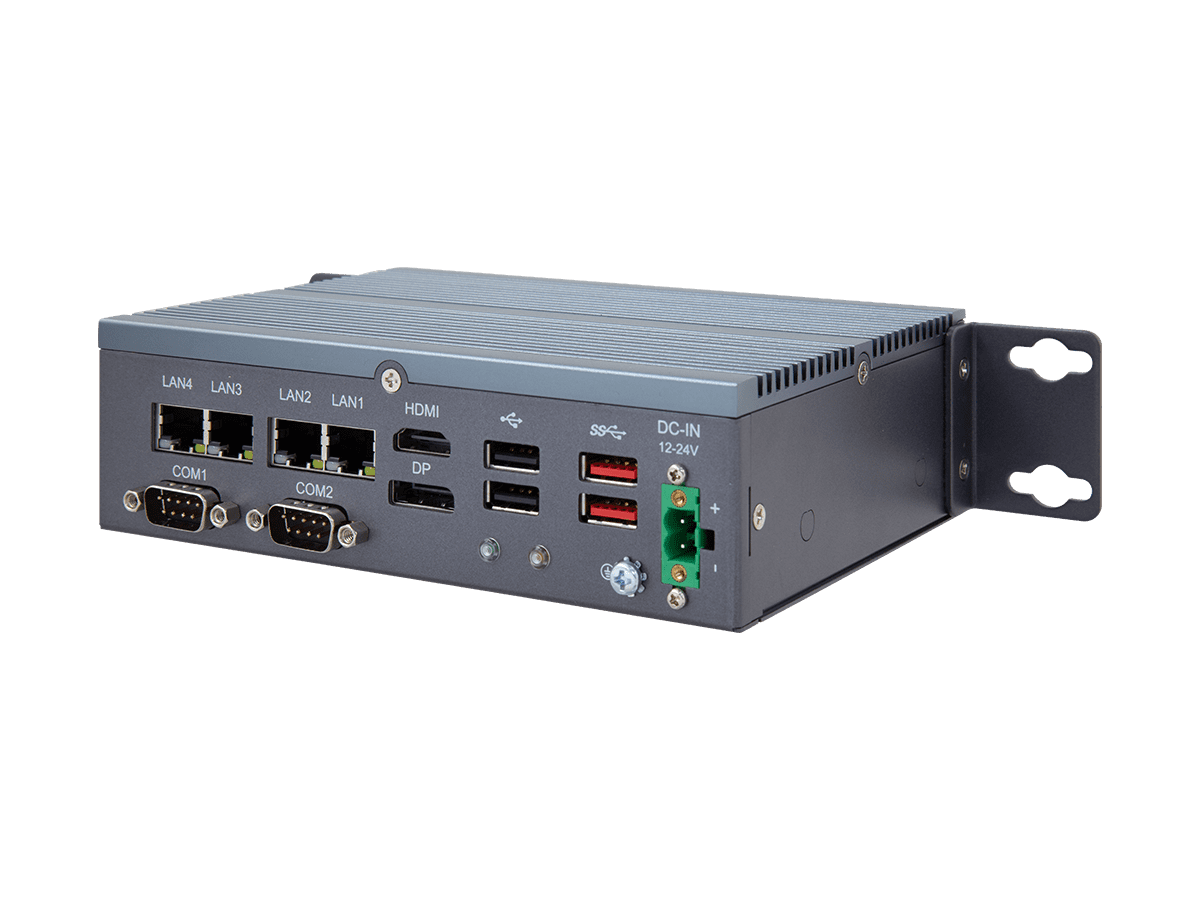

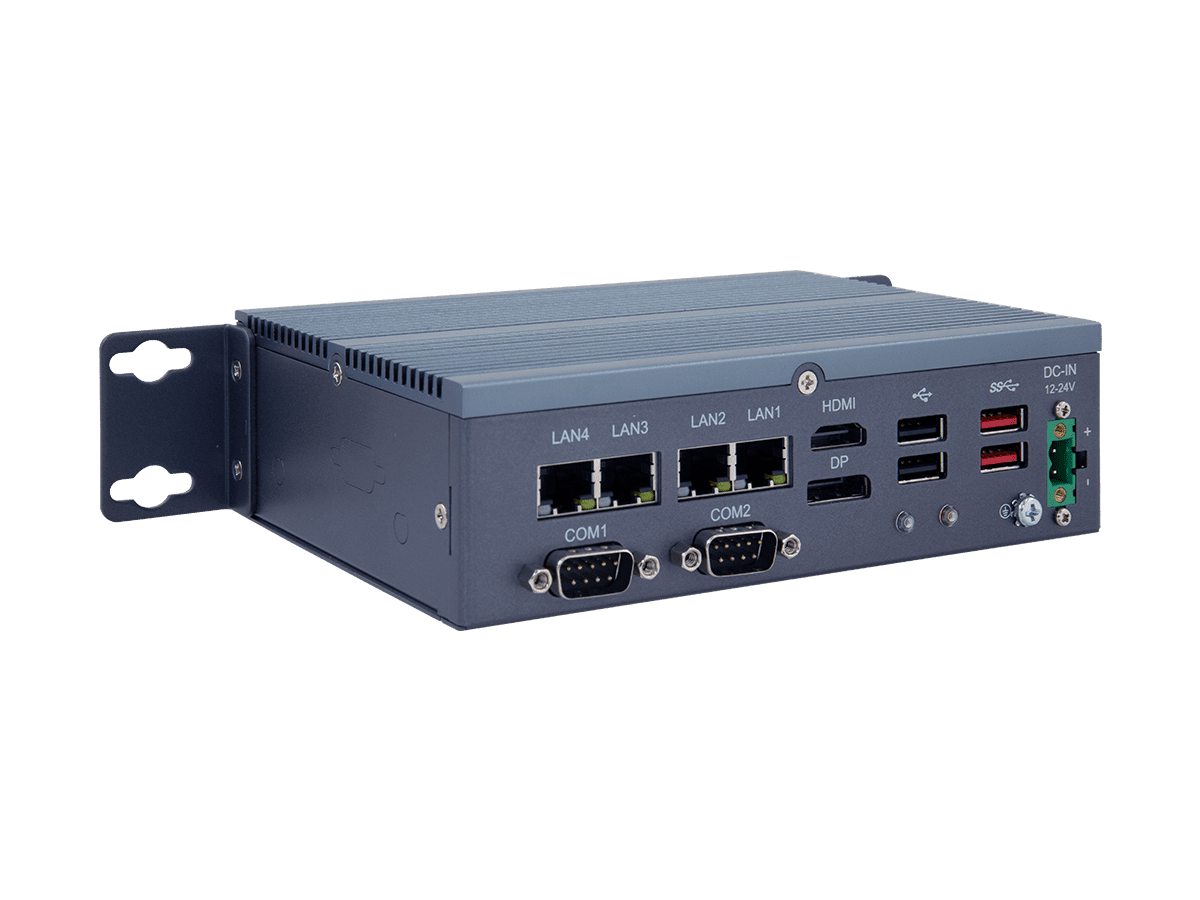

Arbor SB-142-1J64 Embedded Computer
The SB-142-1J64 is a compact industrial powerhouse, packed with features to streamline your operations. Its Intel® Celeron® processor ensures smooth multitasking and efficient processing, while quad Gigabit LAN provides unmatched connectivity. Enjoy crystal-clear visuals on multiple displays thanks to its 4K video output, and rest assured that your data is secure with its fast M.2 SSD storage.
Expandable with Mini-PCIe and M.2, this fanless PC thrives in harsh environments with its rugged design and wide operating temperature range. Plus, with options for serial ports, GPIO, and even a SIM card slot, the SB-142-1J64 adapts to your specific needs.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
SB-142-1J64
Specifications
SB-142-1J64
Specifications
| System | |
|---|---|
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz) |
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 32G), 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN Chipset | 1 x Intel I210AT 3 x Intel I226-V |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| Qualification | |
|---|---|
| Certification | CCC, CE, FCC |
| Power System | |
|---|---|
| Power Input | 12-24V DC, 2-pin phoenix connector |
| Storage | |
|---|---|
| Device | 1 x M.2 2242 (SATA3.0) 128GB M.2 SSD pre-installed*(CTOS) |
| Audio | |
|---|---|
| Type | 1 x Line-out 1 x Mic-in |
| Mechanical | |
|---|---|
| LED | 1 x Power LED 1 x HDD LED |
| Chassis | Aluminum Alloy |

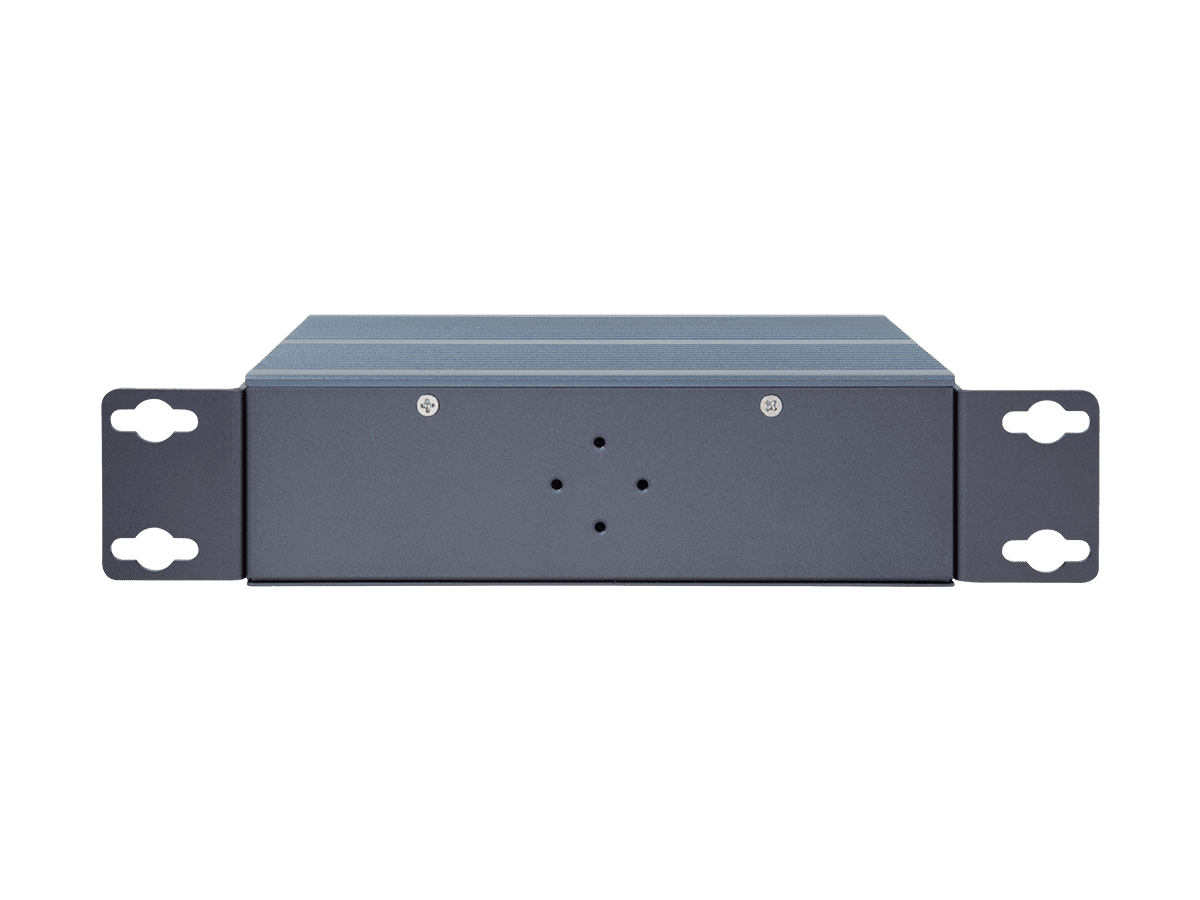

| Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) |
| Weight (Net) | 0.8kg |
| Dimensions (W x H x D) |
165 x 120 x 50 mm |

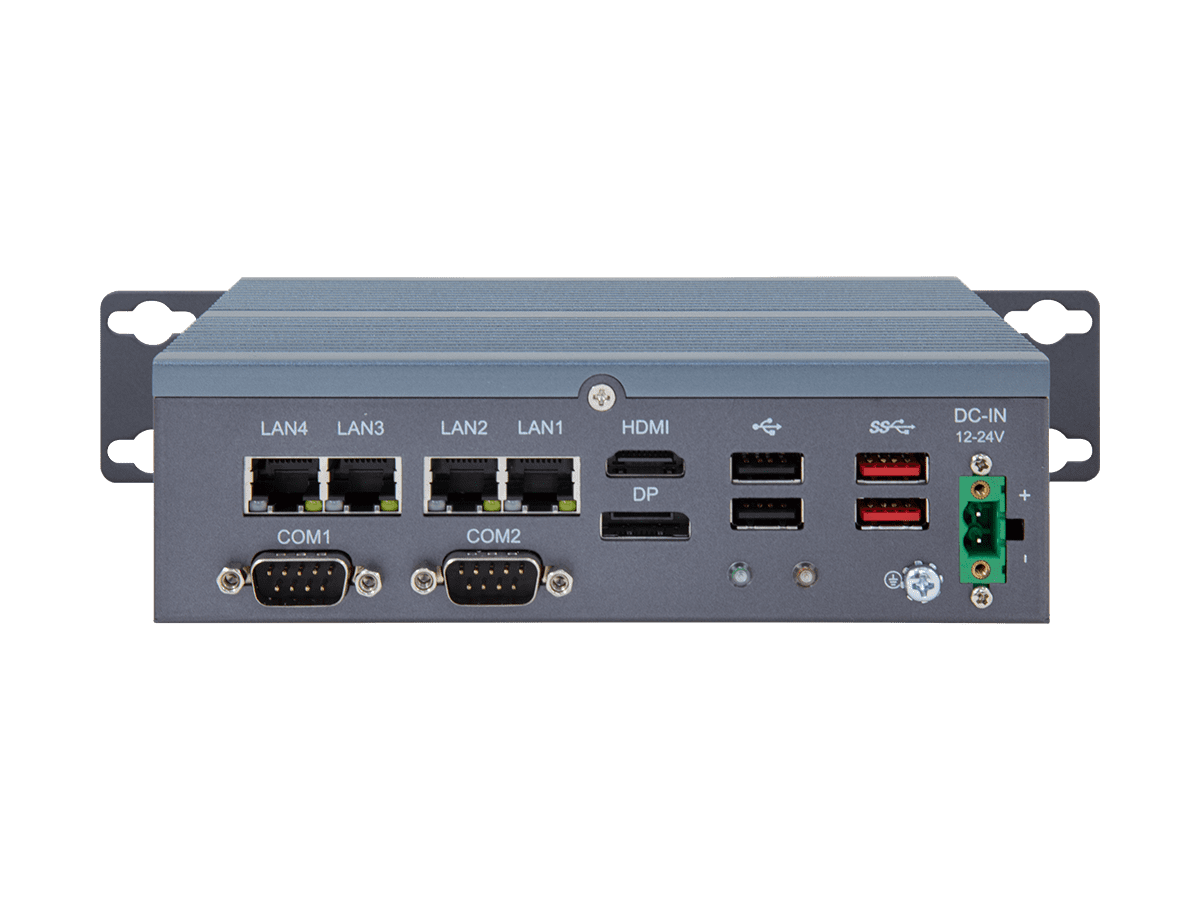

| External I/O | |
|---|---|
| Serial Ports | 2 x RS232/422/485(default RS-232) with auto flow control |
| USB Ports | 2 x USB3.1 2 x USB2.0 |
| LAN | 4 x RJ45 |
| Video Ports | 1 x HDMI up to 4096 x 2160 @ 24 Hz 1 x DP up to 4096 x 2160 @ 60 Hz |
| Internal I/O | |
|---|---|
| Expansion Slot | 1 x M.2 2242 SSD slot (SATA signal supported) |
| USB | 2 x USB2.0 encryption dongle (optional by internal pin head ) |
| GPIO | 1 x 8bit programmable GPIO (default 3.3V, 5V optional) (optional by internal pin head ) |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -40 ~ 85°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| OS Support | |
|---|---|
| System | Windows 10, Ubuntu 20.04 |
| Ordering Information | |
|---|---|
| SB-142-1J64-R4S128 | Fanless System with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, 2xLAN, 6xCOM, 4xUSB (up to 6), 1xHDMI, DC12-36V power input |
| PAC-60W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA), 12V,60W,2 WIRE w/ USA POWER CORD |
| PAC-60W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA), 12V,60W,2 WIRE w/ EU POWER CORD |
*CTOS means Configure-to-Order Service.
Order the SB-142-1J64
Partnering with IndustrialPC for your SB-142-1J64 ensures a seamless experience tailored to your specific needs. Our team of industrial computing experts provides unparalleled guidance, helping you select the perfect configuration and accessories for your application. We offer custom configuration services, competitive pricing, fast shipping, and dedicated technical support to ensure your satisfaction throughout the entire process. With a proven track record of delivering high-quality solutions and exceptional service, IndustrialPC is your trusted partner in industrial automation.
Frequently Asked Questions
What operating systems are supported by the SB-142-1J64?
The SB-142-1J64 supports Windows 10 and Ubuntu 20.04, providing flexibility for your software preferences.
Can I expand the storage capacity beyond the pre-installed 128GB M.2 SSD?
Yes, the SB-142-1J64 features an additional M.2 slot (2242 SATA) for expanding storage capacity.
How many network ports are available and what speeds do they support?
The SB-142-1J64 is equipped with four Gigabit Ethernet ports for high-speed networking: one Intel I210AT GbE controller and three Intel I226-V 2.5GbE controllers.
Does the SB-142-1J64 support wireless connectivity?
While not included by default, the SB-142-1J64 has the capability for wireless connectivity through the optional installation of a 3G/4G module in the SIM card slot.
What is the purpose of the watchdog timer?
The programmable watchdog timer is a safety feature that can detect system malfunctions and automatically reset the PC if it becomes unresponsive, ensuring maximum uptime and reliability in critical applications.
