SB-226-1J64 Industrial Fanless PC

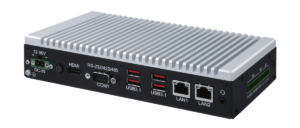

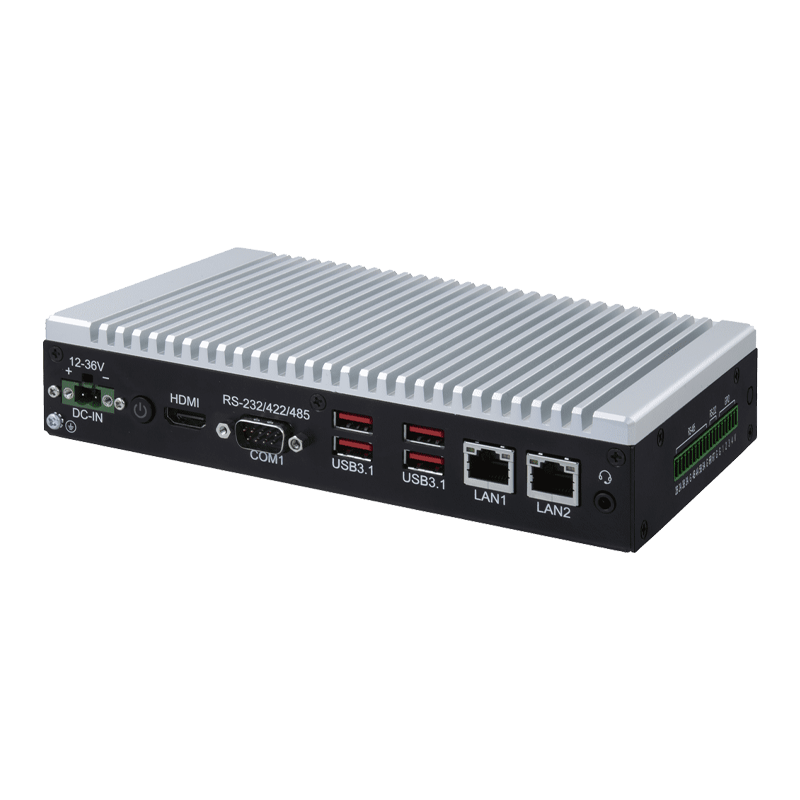

SB-226-1J64 view 1
SB-226-1J64 view 2
SB-226-1J64 view 3
SB-226-1J64 view 4

Industrial Fanless PC

SB-226-1J64

Intel® Celeron® Elkhart Lake Compact Fanless Computer with 2x GbE, 4x RS-485, 4x USB 3.2 & 12-36V DC Input



Processor

Intel Celeron J6412



Memory

Up to 32GB DDR4 3200



Storage

1x M.2 SATA + 1x mSATA



Ethernet

2x GbE



Operating Temp

-20°C to 60°C



Power Input

12–36V DC

Configure & QuoteOrdering & Resources

About the SB-226-1J64

The SB-226-1J64 is a compact fanless computer from Arbor built on the Intel Celeron (Elkhart Lake) platform with integrated Intel UHD Graphics. Its aluminum alloy enclosure measures 200 x 130 x 41 mm (7.9" x 5.1" x 1.6") and weighs 1.5 kg. It suits serial-heavy control, data acquisition and edge gateway work where you need several COM ports and dual network links in a small footprint.

You get 2x GbE on Intel I210-AT controllers, 4x USB 3.2 and 2x optional internal USB 2.0. Serial I/O includes 1x RS-232/422/485 with auto flow control, 4x RS-485 with ±2kV protection and 1x RS-232, alongside one HDMI output that drives 4096x2160 at 60Hz. The I/O also includes a 4-bit programmable GPIO (3.3V default, 5V optional), line-out and mic-in. Storage uses an M.2 2242 M-key SATA socket or mSATA through the full-size Mini PCIe slot, a SIM socket supports 3G/4G modules, and memory scales to 32GB DDR4 3200 in one SO-DIMM slot.

The SB-226-1J64 accepts 12-36V DC through a 2-pin Phoenix connector with over-voltage and reversed power insertion protection. It operates from -20°C to 60°C (ambient with air flow, wide-temp RAM and SSD) and is rated for 5-500Hz, 2Grms vibration and 10G shock during operation. Desktop and wall mounting are included, DIN rail mounting is optional, and the unit carries CE and FCC certifications.

Why Industrial PC, Inc?

👴 Our experience is unmatched. We've been around since 1996 (30 years!)

📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.

🤷🏻‍♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!

📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.

⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.

Full Specifications

SB-226-1J64 by Arbor: complete technical specifications

System Core
ProcessorIntel Celeron (Elkhart Lake)
ChipsetIntegrated in CPU
GraphicsIntel UHD Graphics for 10th Gen Intel processors
Watchdog Timer1–255 levels reset
I/O Interface
Ethernet2x GbE (Intel I210-AT)
USB
  • 4x USB 3.2 (vendor states USB3.1)
  • 2x USB 2.0 (optional, internal)
Serial Ports
  • 1x RS-232/422/485 (default RS-232, auto flow control)
  • 4x RS-485 (±2kV protection)
  • 1x RS-232
Video Output1x HDMI (4096x2160 @ 60Hz)
GPIO1x 4-bit programmable GPIO (3.3V default, 5V optional)
Audio1x Line-out & Mic-in (chipset ALC888S/897)
Mechanical
Dimensions200 x 130 x 41 mm (W x D x H) / 7.9" x 5.1" x 1.6"
Weight1.5 kg (3.3 lbs)
Mounting
  • Desktop, Wall mount (included)
  • DIN rail (optional)
ConstructionAluminum alloy
CoolingFanless
Certifications
CertificationsCE, FCC
Memory
MemoryUp to 32GB SO-DIMM DDR4 3200 (1x SO-DIMM slot)
Storage
M.2 2242 SATA1x M.2 2242 M-key (SATA)
mSATA SATA1x mSATA (SATA), via MiniPCIe slot
Expansion
Mini PCIe1x full-size Mini PCIe slot (also supports mSATA)
SIM Socket1x SIM card socket for 3G/4G module
Power
DC Input12–36V DC, 2-pin Phoenix connector
ProtectionOver-voltage protection, reversed power insertion protection
Power Button1x power button with LED
Environmental
Operating Temperature-20°C to 60°C (ambient with air flow, wide-temp RAM & SSD)
Storage Temperature-40°C to 85°C
Humidity5–95% @ 40°C, non-condensing
Vibration5–500Hz, 2Grms (operating)
Shock10G @ 11ms (operating), 30G @ 11ms (non-operating)
Operating System
Supported OSWindows 10/11, Ubuntu 22.04

Build Your Custom Quote

Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.

Name(Required)
30 Years in Business3-Year WarrantyUS-Based Support

SB-226-1J64 is Ideal for Applications Like:

RS-485 Fieldbus Gateway

Four RS-485 ports with ±2kV protection plus one RS-232/422/485 port let the SB-226-1J64 poll meters, drives and controllers across several serial segments. Dual Intel I210-AT GbE ports forward that data to separate plant and supervisory networks.

Remote Cellular Monitoring

The full-size Mini PCIe slot and SIM card socket accept a 3G/4G module for sites without wired backhaul. A 12-36V DC input with over-voltage and reversed power insertion protection handles varied field power sources.

Machine-Side Operator Display

The HDMI output supports 4096x2160 at 60Hz, with Intel UHD Graphics rendering the operator interface. Four USB 3.2 ports connect input devices and scanners, and the 4-bit programmable GPIO reads or drives simple machine signals.

Ordering Information

Available configurations and model numbers for the SB-226-1J64.

Models
SB-226-1J64Base system: Intel Celeron (Elkhart Lake), fanless, 2x GbE, 4x RS-485, HDMI, 1x DDR4 SO-DIMM up to 32GB, 12-36V DC input.
SB-226-1J64-R4S128SB-226-1J64 platform: Intel Celeron (Elkhart Lake), fanless, 2x GbE, 4x RS-485, HDMI, M.2 2242 SATA and mSATA storage, 12-36V DC.
SB-226-1J64-R8S128SB-226-1J64 platform: Intel Celeron (Elkhart Lake), fanless, 2x GbE, 4x USB 3.2, HDMI, up to 32GB DDR4 3200, 12-36V DC input.
