About the Computer

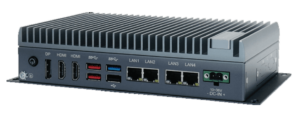

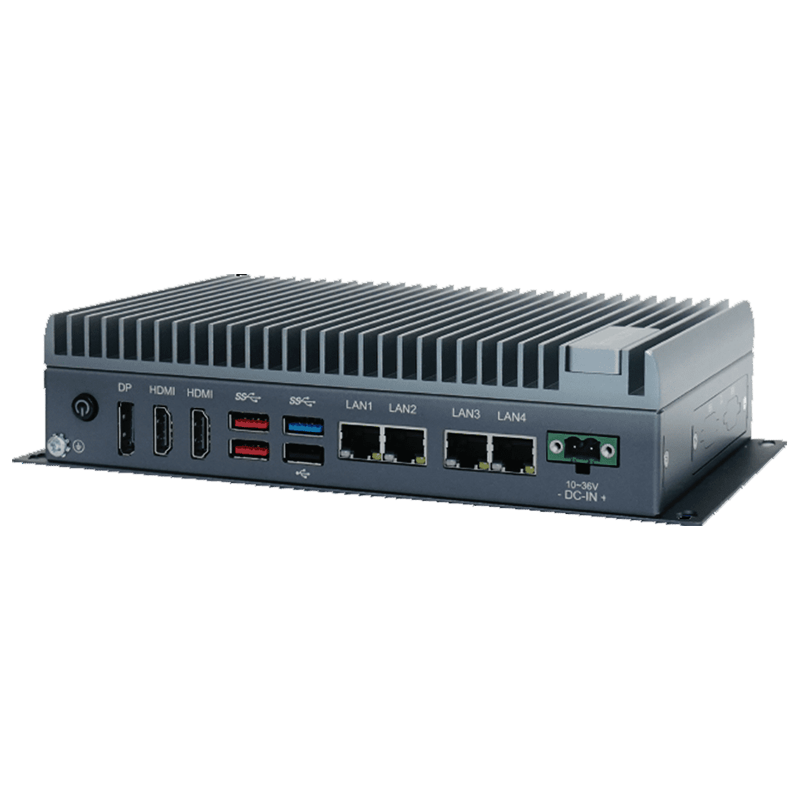

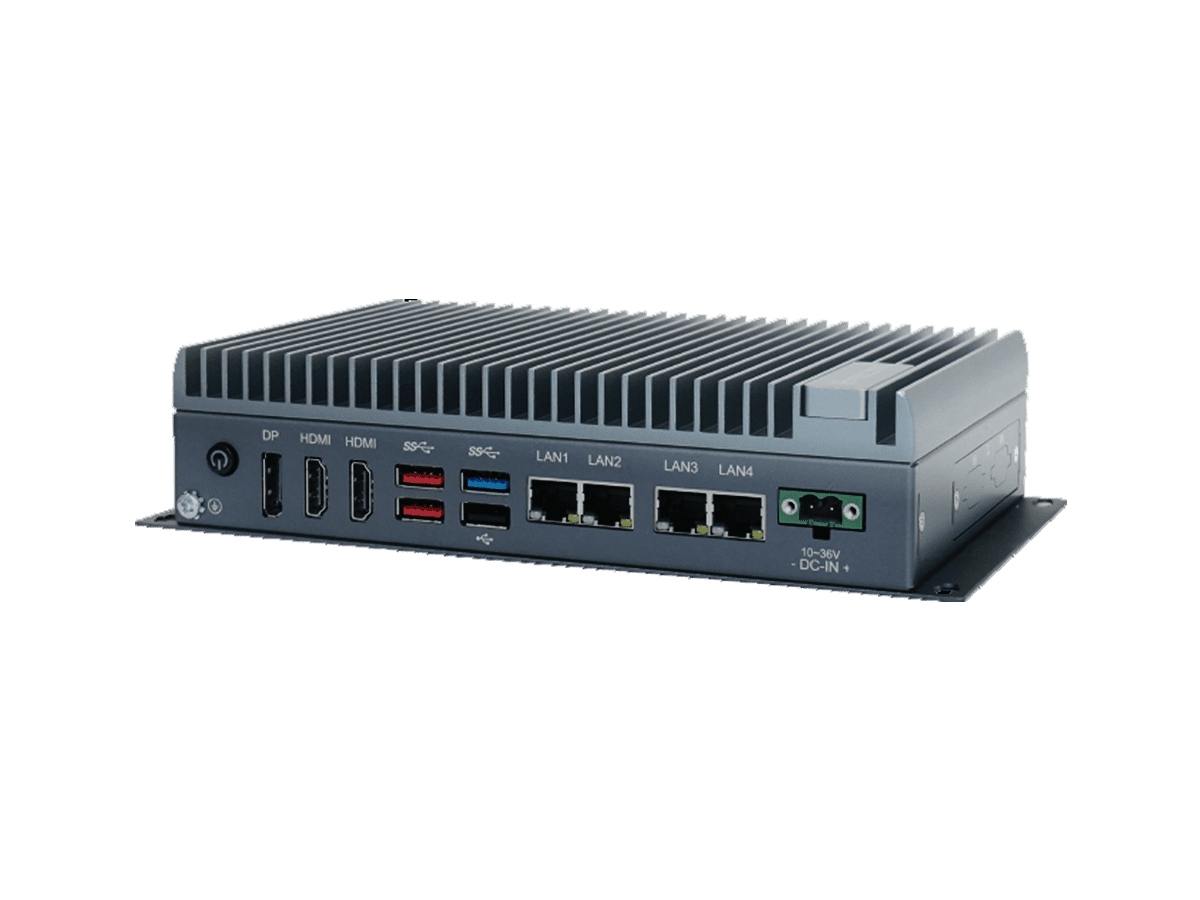

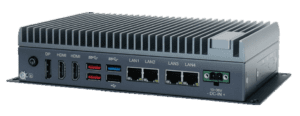

Arbor SB-244-11135G7 Embedded Computer
The SB-244-11135G7 is the epitome of industrial-grade computing, combining raw power, flexible connectivity, and rugged reliability. This fanless PC excels in demanding environments, effortlessly handling complex tasks with its high-performance Intel CPU.
With quad Gigabit LAN, triple 4K display support, ample storage options, and diverse expansion capabilities, the SB-244-11135G7 is ready to revolutionize your industrial automation and computing workflows.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
Configure and Order the SB-244-11135G7
* Model and Processor are required selections
SB-244-11135G7
$840.78

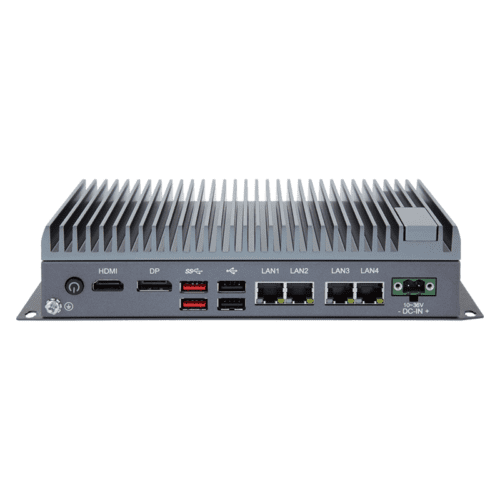

Related products
Not ready to order, or not finding your exact configuration? No problem.
Build your custom quote here.
SHIPS FROM INDIANA
3-YEAR WARRANTY
30-DAY TRIAL PERIOD
ASSEMBLED IN THE US
Need help?
Call (888) 255-5508
SB-244-11135G7
Specifications
SB-244-11135G7
Specifications
| System | |
|---|---|
| CPU | Intel® Tiger lake i5-1135G7 2.4G (8M Cache, up to 4.2GHz) |
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 32G) 4GB WT DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® Iris® Xe graphics, up to 96 graphics execution units (EU) |
| LAN Chipset | 1 x RJ45 Intel i219LM for 10/100/1000 Mbps 3 x RJ45 Intel i210 for 10/100/1000 Mbps (Colay 1211GbE) |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| Qualification | |
|---|---|
| Certification | CE, FCC |
| Power System | |
|---|---|
| Power Input | 10-36VDC, 2-pin phoenix connector |
| Storage | |
|---|---|
| Device | 1 x SATA 3.1 (2.5” HD) 1 x M.2 2242 (SATA3.0) 128GB M.2 WT SSD pre-installed*(CTOS) |
| Audio | |
|---|---|
| Type | 1 x Audio(Line-out & Mic-in) Chip 888S/897 |
| Mechanical | |
|---|---|
| Button | 1 x Power button W/Led |
| Chassis | Aluminum Alloy |
| Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75x75mm, 100x100mm optional) |
| Weight (Net) | 1.6kg |
| Dimensions (W x H x D) | 224 x 140 x 49.2 mm |
| External I/O | |
|---|---|

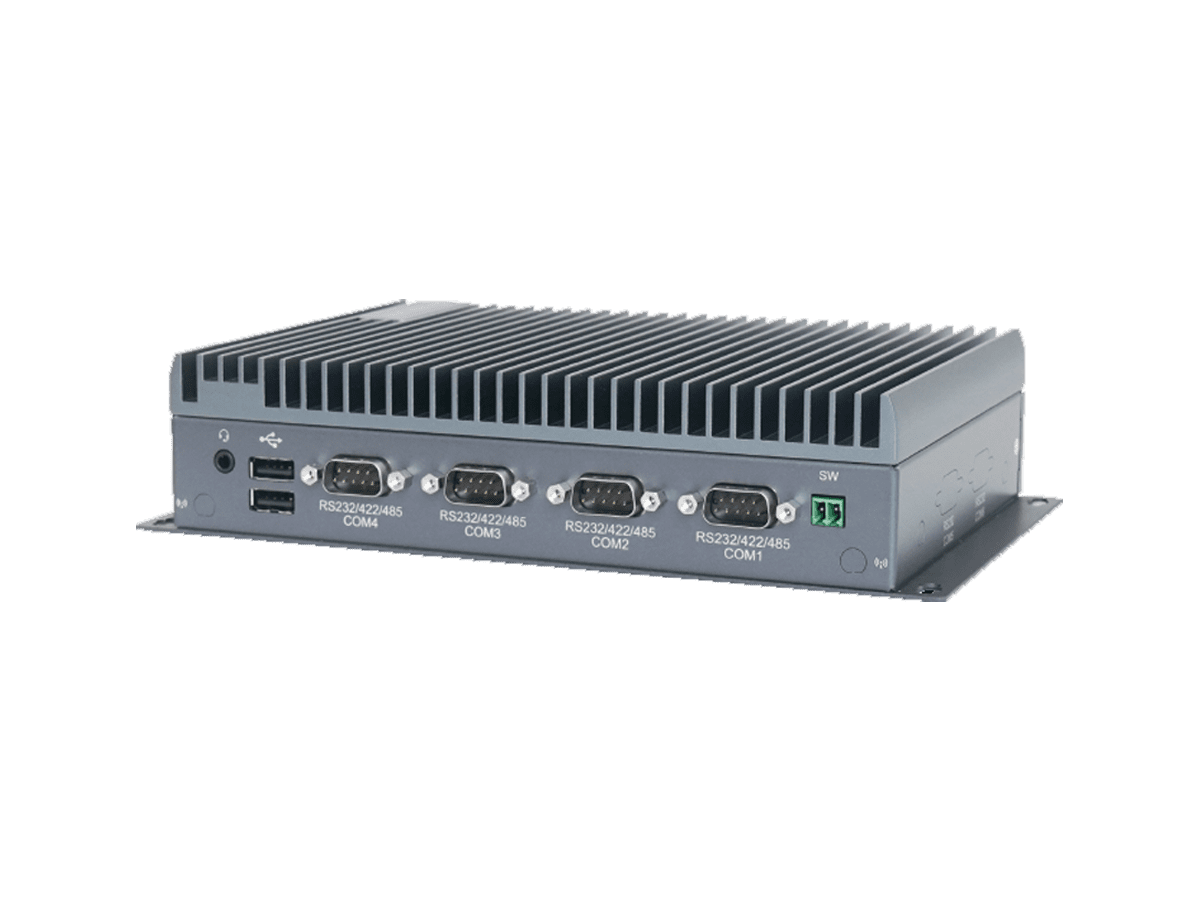

| Serial Ports | 4 x RS232/RS422/RS485 (default RS-232) with auto flow control |
| USB Ports | 3 x USB3.2 Gen. 2 3 x USB2.0 |
| LAN | 4 x RJ45 |
| Video Ports | 2 x HDMI up to 4K x 2K x 24bpp @ 24 Hz 1 x DP up to 4096 x 2304 x 36bpp @ 60 Hz |
| Remote | 1 x SW |
| Internal I/O | |
|---|---|
| Expansion Slot | 1 x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported) 1 x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported) |
| SIM Card | 1 x SIM Card socket for 3G/4G module |
| USB 2.0 Ports | 2 x USB2.0 by Pinhead |
| COM Ports | 2 x COM232 by Pinhead |
| GPIO | 1 x 8 b i t programmable GPIO pin header (3.3 | 5V Jump adjustable) |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ 60°C |
| Storage Temperature | -40 ~ 85°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| OS Support | |
|---|---|
| System | Windows 10, Ubuntu 20.04 |
| Ordering Information | |
|---|---|
| SB-244-11135G7 | Fanless System with, Intel Tiger lake i5-1135G7, 4xLAN, 4xCOM(up to 6),6xUSB, 2xHDMI, 1xDP, DC 10-36V power input |
| AC-DC Power Adapter (US) | Input: 100V-240V, Output: 19V/6.3A 120W; W/2-pin Terminal Block with screws, US Plug |
| AC-DC Power Adapter (EU) | Input: 100V-240V, Output: 19V/6.3A 120W; W/2-pin Terminal Block with screws, EU Plug |
*CTOS means Configure-to-Order Service.
Order the SB-244-11135G7
Partnering with IndustrialPC for your SB-244-11135G7 purchase means gaining a trusted ally in your industrial automation journey. Our team of experts will guide you through every step, from selecting the optimal configuration to providing ongoing technical support. We offer tailored solutions, competitive pricing, and value-added services to ensure your investment delivers maximum value and seamlessly integrates into your existing infrastructure. With a proven track record in the industry, IndustrialPC is your reliable partner for all your industrial computing needs.
Frequently Asked Questions
What is the maximum amount of RAM the SB-244-11135G7 can support?
The SB-244-11135G7 has one SODIMM slot and can support up to 32GB of DDR4 3200 MHz RAM.
Can I use this PC to drive multiple displays simultaneously?
Yes, the SB-244-11135G7 features two HDMI ports and one DisplayPort, allowing you to connect up to three independent displays with resolutions up to 4K.
Does this industrial PC come with an operating system pre-installed?
The SB-244-11135G7 is available as a barebone system or with Windows 10 or Ubuntu 20.04 pre-installed through our configure-to-order service.
What is the difference between the E-Key and mPCIe slots?
The E-Key M.2 slot is primarily designed for WiFi modules, while the mPCIe slot offers greater flexibility, supporting PCIe, USB 2.0, or USB 3.0 signals for various expansion cards.
What is the purpose of the programmable GPIO?
The programmable GPIO provides 8-bit digital input/output pins, allowing you to customize control and automation functionalities for specific industrial applications.
