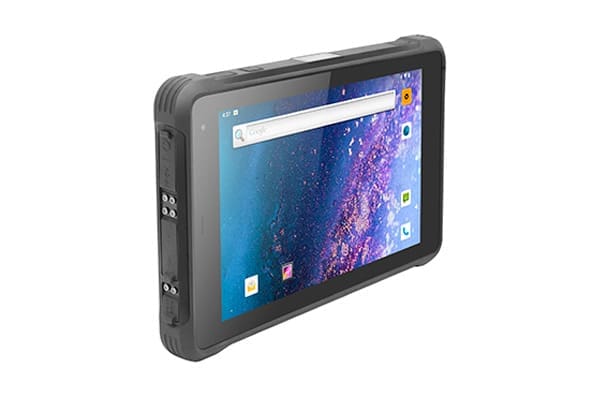

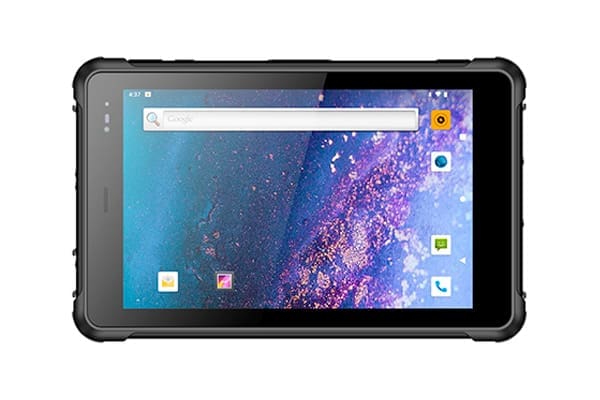

8-inch MTK 6769 Rugged Tablet

Choose a rugged tablet designed for demanding industrial environments.

The versatile Geshem 8 Inch MTK 6769 Rugged Tablet excels with Industrial PC customization.

Product Highlights:

  • MT6769 processor for smooth operation.
  • 6GB RAM + 64GB storage.
  • 1.2m drop resistant, IP65/IP67 rated.
  • 500 cd/m2 display (1000 cd/m2 optional).
  • Customizable with NFC/RFID and barcode scanners.
  • Front and rear cameras.
  • Comprehensive sensors suite.
  • Long-lasting 9800mAh battery.
  • Wide operating temperature range (-10°C to 50°C).
  • 4G, WiFi, and Bluetooth connectivity.

NFC/RFID Function

Streamline data collection with the Geshem 8 Inch MTK 6769 Rugged Tablet’s optional NFC/RFID functions. Choose from NFC, HF-RFID, or UHF-RFID to tailor the tablet to your specific needs. Whether you require short-range asset tracking, contactless data exchange, or long-range inventory management, this tablet delivers efficient and reliable solutions.

Powerful MT6769 Processor

Experience reliable and responsive performance with the powerful MT6769 processor at the heart of this rugged tablet. Tackle demanding industrial applications, multitask effortlessly, and enjoy a fluid user experience even in harsh environments.

10 hour Battery Life

Power through your workday or remote assignments with confidence thanks to the Geshem 8 Inch MTK 6769 Rugged Tablet. Its generous 9800mAh battery delivers up to 10 hours of use, minimizing downtime and ensuring you stay connected and productive even in locations without immediate access to power outlets.

MT6769 Rugged Tablet

The Geshem 8 Inch MTK 6769 Rugged Tablet is built to withstand the demands of harsh environments. Its 1.2m drop resistance protects against accidental falls, while IP65/IP67 (optional) sealing safeguards it from dust and water intrusion. This tablet thrives in challenging settings, ensuring reliable operation whether you’re on the factory floor, a construction site, or out in the field.

Geshem 8-inch MTK 6769 Specifications

System Hardware
CPU MT6769,2 ARM® Cortex-A75 2.0 GHz + 6 ARM® Cortex-A55 1.8 GHz
RAM + Storage 6GB + 64GB
Camera Front 5MP (fixed focus), Rear 13MP (autofocus)
Flash Light Support
Speaker Single speaker, 1.2W/8Ω aluminum film, Standard IP65, optional IP67 waterproof
MIC Standard IP65, optional IP67 waterproof microphone
Earpiece Standard IP65, optional IP67 waterproof earpiece
Button Power, Volume +/-, 1*Customize function key, 1*Barcode scanner shortcut key
LED Indicator Charging indicator
Sensor G­sensor, Gyroscope, geomagnetism, Distance sensor, Motor, Light sensor, air pressure
Max. Resolution 800*1280
Cover Glass Corning Gorilla Glass III, hardness 7H, light transmittance 85%
Luminance 500 cd/m2, Optional 1000 cd/m2
Touchscreen 5-Points projected capacitive, Optional AG+AF+Wet Hand/Glove
OS Android 12
I/O Interface
USB 1*USB Type C (USB OTG+Charging), 1*USB 2.0, Type A
DC Jack 1*DC Jack
Audio 3.5mm Headphone Jack
TF Card Slot 1*TF Card Slot (up to 128GB)
SIM Card Slot 1*Micro SIM Card Slot
Aviation Plug 1-way CAN interface (customizable)
Network Communication
4G GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TDD: B34/B38/B39/B40/B41
WIFI WIFI5 802.11(a/b/g/n/ac)
Bluetooth Bluetooth 5.0
GNSS GPS/BeiDou/GLonass/Galileo
Extended Functions
NFC/RFID Optional NFC/HF-RFID/UHF-RFID (choose one out of three)
Barcode Scanner Optional 1D/2D barcode scanner (choose one out of two)
Power Input 5V/3A, Level 6 Energy Efficiency DC Interface Adapter (Customizable: power input DC 5~24V, no battery)
Battery 9800mAh, 3.8V Li-Ion battery
Battery Life 10 hours (Play 1080P video under LCD 50% backlight)
Drop Resistance 1.2m free fall to the wooden floor
IP Rating Standard IP65, optional IP67
Operating Temp. -10℃~50℃
Storage Temp. -30℃~70℃
Certificate CE, ROHS, UN38.3, MSDS
Dimensions (W x H x D) 227 * 142.4 * 22.9mm (Optional UHF RFID module increases thickness by 9.5mm)
Weight 0.80kg
Color Black
Accessory Hand strap, Type-C OTG cable, 5V/3A Level 6 Energy Efficiency DC Interface Adapter
Optional Accessory Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Vehicle charging bracket

Order the Geshem 8-inch MTK 6769

The Geshem 8 Inch MTK 6769 Rugged Tablet packs powerful hardware for demanding field operations. It features the MT6769 processor for smooth performance, 6GB of RAM for multitasking, and ample storage for apps and data. Industrial PC helps you get the most out of this robust device. We’ll guide you to the perfect configuration, customize it with options like NFC/RFID or barcode scanners, and provide ongoing support to ensure your investment delivers maximum value.

Frequently Asked Questions

How Are Geshem Windows Rugged Tablets Different From Ordinary Tablets?

Geshem tablets are built with industrial-grade components and undergo rigorous testing (MIL-STD-810G) to withstand harsh environments. They survive drops, spills, shocks, extreme temperatures, and dust far better than consumer tablets.

Why Would I Choose A Rugged Tablet Over A Regular One

Less Downtime: They’re less likely to break, helping you maintain productivity and avoid costly repairs.
Protect Your Investment: A rugged tablet lasts longer, saving you money in the long run.
Work Anywhere: Use it confidently outdoors, on factory floors, or other challenging locations.

I Need A Windows Rugged Tablet, But How Do I Choose The Right One?

Industrial PC simplifies the process! We offer a diverse range of Geshem Windows rugged tablets with options for different performance needs and budgets. Whether you require a cost-effective solution with a Celeron processor or maximum power with a Core i7, we’ll find the perfect fit.

What Specific Features Make Geshem Tablets Rugged?

Key features include:

  • Shock-resistant materials: Designed to handle impacts and drops.
  • Sealed Construction: Protects against dust and water intrusion.
  • Wide Temperature Tolerance: Functions reliably in freezing conditions and high heat.

How Do I Know Which Geshem Tablet Is Right For Me?

Industrial PC can help! Our experts will assess your specific applications and environment.

We’ll guide you to the ideal Geshem tablet based on factors like:

Software Demands: Do you run resource-intensive programs?
Environmental Conditions: Extreme temperatures or dust exposure?
Budget Considerations: We’ll help you balance performance and cost.

I'm Interested In Geshem Windows Rugged Tablets. What Windows Versions Are Supported?

Industrial PC offers a range of Geshem Windows rugged tablets compatible with various operating systems, including Windows 7, Windows 10, and Windows 10 IoT. Additionally, Windows 10 Pro, Home, and IoT versions are available for specific needs.

How Long Does The Battery Last In Geshem Rugged Tablets?

Geshem rugged tablets are designed to keep up with your workday. Many models offer up to 10 hours of battery life on a single charge. However, actual battery life will depend on how you use the tablet and its specific settings.
