TR156-111A

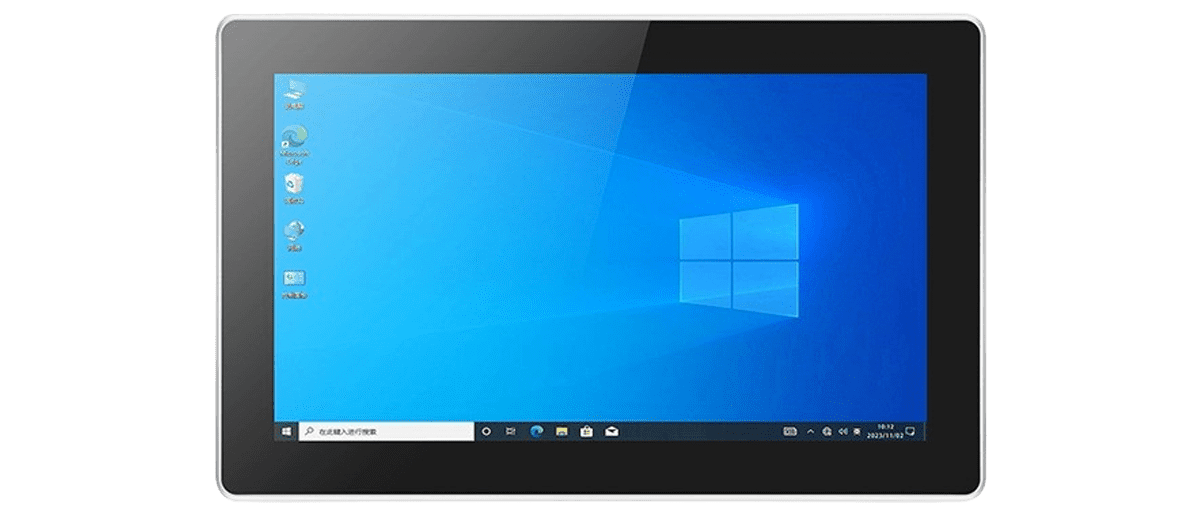

15.6 Inch Intel Celeron J6412 Cableless Capacitive Panel PC Overview
Introducing a powerful and versatile industrial PC solution. This panel PC boasts an Intel® Elkhart Lake™ 11th Gen Celeron® J6412 processor, ideal for demanding industrial applications.
The multi-point capacitive touchscreen display provides intuitive control, while the fanless design ensures quiet operation.
TR156-111A Product Highlights:
TR156-111A
Specifications
| System | |
|---|---|
| CPU | Intel® Elkhart Lake™ 11th Celeron® J6412 |
| Memory | 1*DDR4 SO-DIMM memory slot, supporting up to 32GB |
| Storage | 1*M.2 2280 SLOT (SATA/Nvme(PCIeX1)interface type automatic recognition) |
| Display | |
|---|---|
| LCD Type | 15.6″ LCD |
| Touchscreen | Capacitive touch screen |
| Max. Resolution | 1920*1080 |
| Luminance | 450 cd/m2 |
| Contrast Ratio | 800: 1 |
| OS | |
|---|---|
| System | Windows10/11、Linux |
| Environment | |
|---|---|
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10℃~55℃ (wide temperature optional) |
| Storage Temp. | -30℃~70℃ (wide temperature optional) |
| Humidity | 95% @40℃, non-condensing |
| I/O Ports | |
|---|---|
| USB | 4*USB3.0 (4*USB2.0 built-in) (USB3.0-3, 4 support 1.5A, 1, 2 support 0.9A) |
| COM1 | 1*RS232/422/485 jump cap optional (default RS232), supports 5V/12V/RI # optional |
| COM2/3/4 | 1 out 3 serial port cables 1 out 1*RS232 and 2*RS485, or 1 out 3 serial port cables 2 out 3*RS232/485 jump cap options (default RS232); 2*RS232 built-in (need to customize export) |
| LAN | 2*1000M LAN port |
| Audio | 1*4-section 3.5mmAudio Jack (supports headphone audio output and microphone audio input); 1*Horn 8 ohms 3 watts |
| Video | 1*HD, 1*VGA pins can be customized for export Phoenix terminal 3pin |
| DC Port | NA |
| Mini PCIe | 1*Mini PCIe (WiFi+BT/4G/5G Optional, One out of three) |
| SIM Card | 1*Built-in SIM card holder |
| GPIO | NA |
| Power | |
|---|---|
| Power | 10-32V wide voltage input, standard with 12V/5A adapter |
| Mechanical | |
|---|---|
| Dimension (WxHxD) | 408*257.3*55.9mm |
| Weight | 4.09Kg |
| Color | Silver |
| Material | Aluminum alloy |
| Mounting | VESA mounting: 100*100mm Embedded installation: 393.4*242.6mm |
A Comprehensive Industrial PC Solution
The TR156-111A is a ruggedized and versatile industrial panel PC designed to excel in demanding environments. Powered by a robust Intel® Elkhart Lake™ 11th Gen Celeron® J6412 processor, it delivers exceptional performance for industrial applications. The 15.6-inch capacitive touchscreen display ensures intuitive operation, while the fanless design guarantees reliable and quiet operation.
Key features of the TR156-111A include:
- Intel® Elkhart Lake™ 11th Gen Celeron® J6412 processor: Delivers powerful performance for demanding tasks.
- 15.6-inch capacitive touchscreen display: Offers intuitive user interaction and clear visibility.
- Fanless design: Ensures reliable and quiet operation in industrial environments.
- Robust construction: Built to withstand harsh conditions with vibration and shock protection, and an IP65 front panel rating.
- Versatile I/O options: Includes multiple USB ports, serial ports, Ethernet ports, and more.
- Customizable configurations: Can be tailored to meet specific application requirements.
