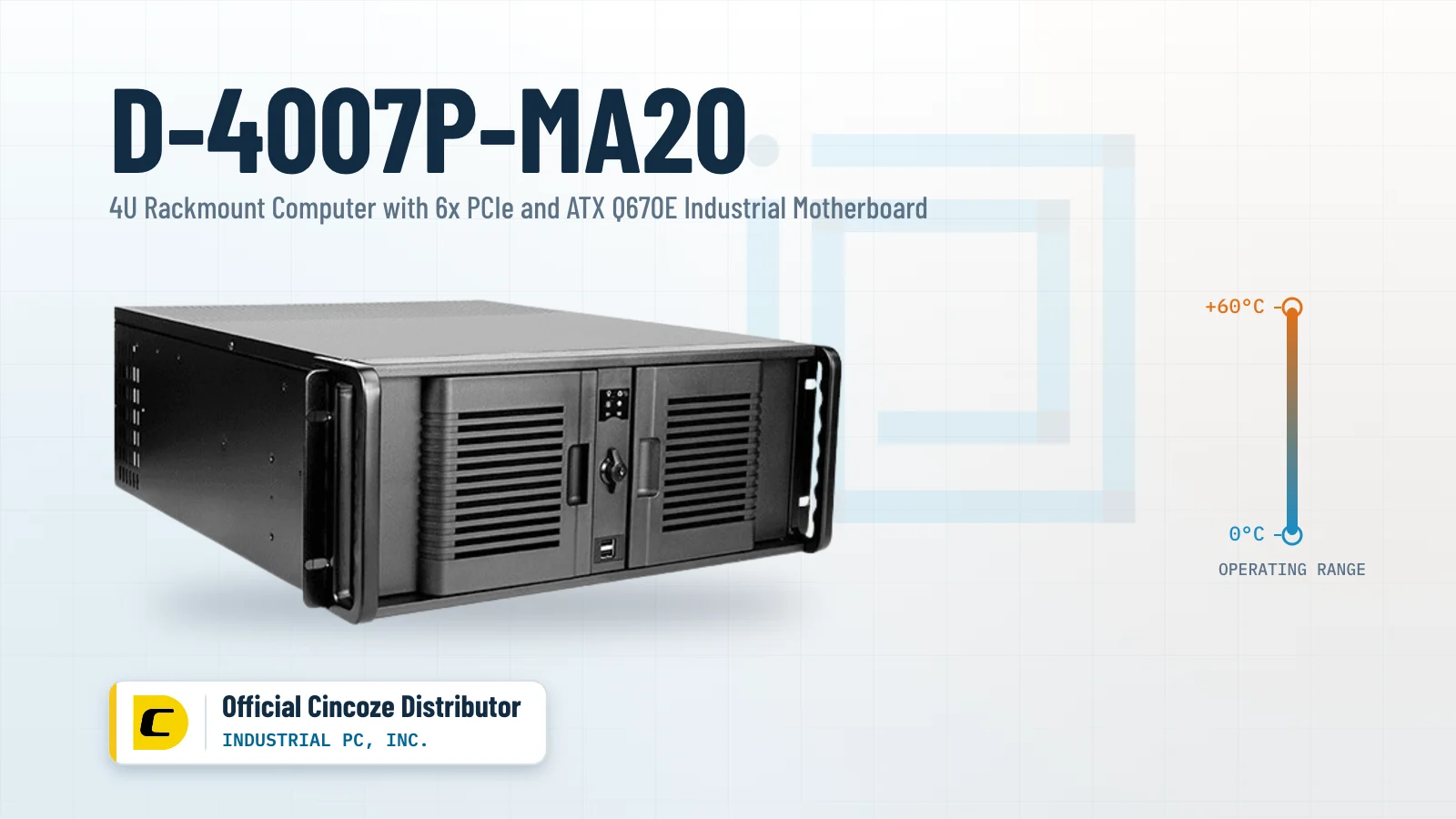

Industrial Fanless PC
D4007P-MA20
Intel® LGA 1700 4U Rackmount Computer with 6x PCIe, 3x 2.5GbE, and DDR5 ECC Support
Processor
Intel® 12th and 13th Gen Processors up to 125W TDP (Max Turbo Power 125W)
Memory
Dual-Channel DDR5-5600 MHz (13th Gen.)
Storage
4x SATA3 RAID, 2x M.2 NVMe/SATA
Dimensions
19″ (W) x 7″ (H) x 20.8″ (D)
Operating Temp
0°C ~ 60°C
Display
4 independent displays: HDMI, DP, VGA, DVI
| Configure & Quote | Spec Sheet | Ordering & Resources |

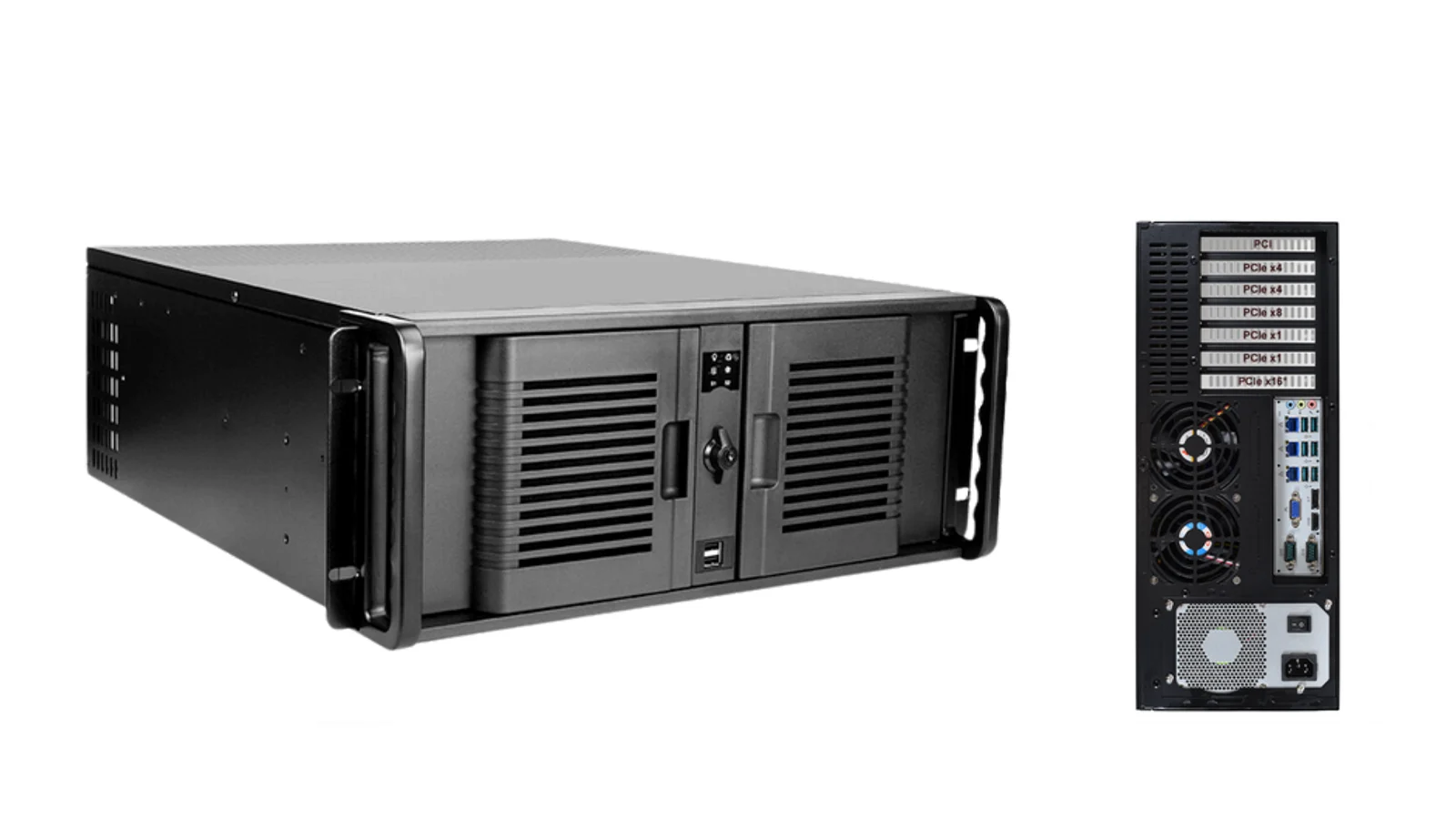

About the D4007P-MA20
The D4007P-MA20 is a 4U rackmount industrial computer built around the Intel® LGA 1700 platform, supporting 12th, 13th, and 14th Gen Core™ processors (Alder Lake-S and Raptor Lake-S) up to 125W. Its ATX MA20 motherboard (305mm x 244mm) is designed for long lifecycle embedded applications, with a planned lifecycle through Q1 2037. This system targets demanding industrial automation, machine vision, and in-vehicle computing environments requiring high performance and reliability.
The D4007P-MA20 features 4 DDR5 UDIMM slots (up to 128GB, ECC supported on R680E), 4 SATA3 ports with RAID, and dual M.2 NVMe/SATA slots for flexible storage options. Expansion is extensive, with 2 PCIe 4.0 x16, 2 PCIe 4.0 x4, 2 PCIe 3.0 x1, and 1 legacy PCI slot, plus M.2 slots for Wi-Fi and cellular modules. Connectivity includes 3 Intel® 2.5GbE LAN ports, 6 serial ports, 8-bit GPIO, and support for three independent displays (HDMI, DisplayPort, VGA). The front panel offers 2 USB 2.0 ports, power and alarm reset switches, and a removable air filter for easy maintenance.
With its combination of high-performance Intel® processing, industrial-grade expansion, and robust I/O, the D4007P-MA20 is engineered for reliability and flexibility in mission-critical industrial applications.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
D4007P-MA20 — complete technical specifications
| Processor Support | 12th/13th/14th Gen Intel® Core™ (Alder Lake-S, Raptor Lake-S), LGA 1700, up to 125W Max Turbo Boost |
| Chipset | Intel® Q670E / R680E |
| Motherboard | MA20 (ATX, 305mm x 244mm) |
| PCIe Slots | 2 x PCIe 4.0 x16, 2 x PCIe 4.0 x4, 2 x PCIe 3.0 x1 |
| PCI Slots | 1 x PCI |
| M.2 Slots | 1 x M.2 for Wi-Fi, 1 x M.2 for Cellular |
| Chassis Type | 4U Rackmount (D-400-7) |
| Front Panel | Patented aluminum with locks, removable air filter |
| Cooling | 1 x 80mm cooling fan |
| LED Indicators | Power and HDD LED |
| Switches | Power and Alarm Reset Switch |
| Dimensions | ATX motherboard: 305mm x 244mm; Chassis: see manufacturer drawing |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4 x DDR5 UDIMM |
| Max Memory | Up to 128GB (R680E supports ECC) |
| SATA | 4 x SATA3 (RAID support) |
| M.2 Storage | 1 x M.2 SATA & PCIe 4.0 x4 NVMe, 1 x M.2 PCIe 4.0 x4 NVMe |
| Ethernet | 3 x Intel® 2.5GbE |
| USB (Front) | 2 x USB 2.0 (front access) |
| Serial Ports | 6 x Serial Ports |
| GPIO | 8-bit GPIO |
| Display Outputs | 3 independent displays: HDMI, DisplayPort, VGA |
| Watchdog Timer | Supported |
| TPM | Optional TPM2 IC |
| OS Support | Windows 10, Windows 11, UEFI Linux |
| Lifecycle | Planned through Q1 2037 |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
D4007P-MA20 is Ideal for Applications Like:
🏭 Factory AutomationThe D4007P-MA20 provides robust processing power, multiple PCIe expansion slots, and industrial I/O, making it well-suited for demanding factory automation tasks such as machine control, data acquisition, and process monitoring. | 🚛 In-Vehicle ComputingWith support for high-performance Intel® processors, multiple LAN ports, and rugged rackmount construction, the D4007P-MA20 is ideal for mobile command centers, fleet management, and other in-vehicle industrial applications requiring reliability and expandability. | 📹 Machine VisionThe system's high-speed PCIe slots, multiple display outputs, and support for large DDR5 memory configurations make it an excellent platform for machine vision, inspection, and real-time image processing in industrial environments. |
Ordering Information
Available configurations and model numbers for the D4007P-MA20 series.
