Industrial Fanless PC
DS-1500
Intel® Arrow Lake-S Ultra 200S Fanless Embedded Computer with Dual PCIe Expansion, Quad Display, and Wide Temperature Range
Processor
Intel® Arrow Lake-S Core™ Ultra 200S Series, up to 24 cores, 65W TDP
Memory
Up to 96GB DDR5 6400MHz ECC/non-ECC
Storage
2x 2.5" SATA bays (1x front-accessible), 3x M.2 (B/M), RAID 0/1/5/10 support
Dimensions
227 x 261 x 88 mm (DS-1500 base model)
Operating Temp
-40°C to 60°C (35W CPU); -40°C to 50°C (65W CPU, with fan kit)
Display
Quad display: 1x VGA, 2x DP, 1x HDMI (up to 4096x2304@60Hz)
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the DS-1500
The DS-1500 is a rugged, fanless embedded computer built on the Intel® Arrow Lake-S Core™ Ultra 200S Series platform, supporting up to 24 cores and 65W TDP. Its compact chassis measures 227 x 261 x 88 mm (base model) and is engineered for high-performance industrial edge computing in environments such as smart manufacturing, railway, and machine vision.

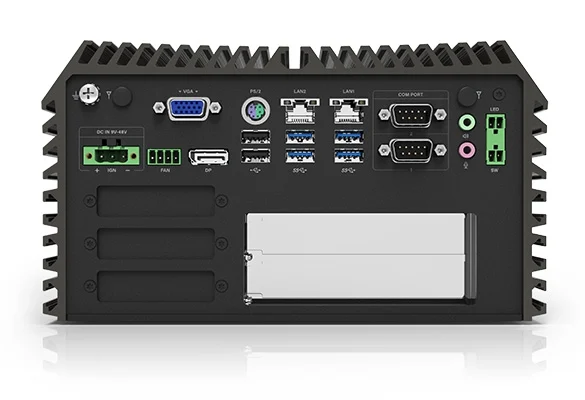

This system features up to 96GB DDR5 memory with ECC support, dual 2.5" SATA storage bays (one front-accessible), and three M.2 slots for NVMe SSDs or wireless modules. Native I/O includes dual LAN (2.5GbE + GbE), 2x RS-232/422/485, 8x USB (including 2x USB 3.2 Gen2), quad display outputs (VGA, 2x DP, HDMI), and audio. Expansion is supported via up to two PCI/PCIe slots (max 130W GPU), with patented card retention for vibration resistance. Modular CMI/CFM slots allow further I/O, TPM, PoE, and ignition sensing expansion.
With its wide temperature range, MIL-STD-810H shock/vibration compliance, and extensive industrial I/O, the DS-1500 is a robust platform for demanding edge applications.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
DS-1500 by Cincoze — complete technical specifications
| Processor | Intel® Arrow Lake-S Core™ Ultra 200S Series (up to 24 cores, 65W TDP) |
| Supported CPUs | Ultra 9 285/285T, Ultra 7 265/265T, Ultra 5 245/245T, Ultra 5 225/225T |
| Chipset | Intel W880 |
| BIOS | AMI BIOS |
| LAN | 1x 2.5GbE (Intel I226), 1x GbE (Intel I219) |
| COM | 2x RS-232/422/485 (DB9, 5V/12V, auto flow control) |
| USB | 2x USB 3.2 Gen2 (10Gbps), 4x USB 3.2 Gen1 (5Gbps), 2x USB 2.0 |
| PS/2 | 1x 6-pin Mini-DIN |
| Audio | Realtek® ALC888, 1x Line-out, 1x Mic-in (3.5mm) |
| Input Voltage | 9–48 VDC (3-pin terminal block) |
| Power Modes | AT/ATX switchable |
| Max Power Consumption | 35W CPU: 163W; 65W CPU: 262.8W |
| Remote Power | 2-pin terminal block (on/off, LED) |
| Protections | Overvoltage, overcurrent, reverse power, ESD |
| Dimensions (W x D x H) | 227 x 261 x 88 mm (DS-1500), 108 mm (DS-1501), 128 mm (DS-1502) |
| Weight | 4.9 kg (DS-1500), 5.3 kg (DS-1501), 5.7 kg (DS-1502) |
| Construction | Extruded aluminum, heavy duty metal |
| Mounting | Wall mount |
| Design | Fanless, cableless, jumper-less, unibody |
| EMC | CE, UKCA, FCC, ICES-003 Class A, EN 50121-3-2 |
| Fire Protection | EN 45545-2 |
| Railway | EN 50121-3-2 |
| Safety | UL, cUL, CB, IEC/EN 62368-1 |
| Slots | 2x DDR5 SODIMM/CSODIMM |
| Capacity | Up to 96GB (ECC and non-ECC) |
| Speed | Ultra 9/7: 6400MHz, Ultra 5: up to 5600MHz |
| Graphics Engine | Integrated Intel® Xe LPG Graphics |
| Display Outputs | 1x VGA, 2x DP, 1x HDMI |
| Max Resolution | DP: 4096x2304@60Hz, HDMI: 4096x2160@30Hz, VGA: 1920x1200@60Hz |
| Independent Displays | Quad |
| 2.5" SATA Bays | 1x front-accessible, 1x internal (SATA 3.0) |
| M.2 Slots | 1x M.2 Key B (PCIe Gen4x2/USB3.2/SATA), 2x M.2 Key B (PCIe Gen3x2/USB2.0/SATA), 1x M.2 Key M (PCIe Gen3x4/SATA) |
| PCI/PCIe Expansion | Up to 2x PCI/PCIe slots (with riser), max 130W GPU (235 x 124 mm) |
| SIM Sockets | 2x |
| CMI/CFM Module Support | 2x High Speed CMI, 2x Low Speed CMI, 1x CFM-IGN, 1x CFM-TPM |
| RAID Support | RAID 0/1/5/10 |
| Operating Temperature | -40°C to 60°C (35W CPU); -40°C to 50°C (65W CPU, with external fan kit) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 95% @ 60°C (non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| MTBF | 307,224 hours (Telcordia SR-332) |
| Supported OS | Windows® 11, Windows® 10, Ubuntu 24.04 |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
DS-1500 is Ideal for Applications Like:
🏭 Factory AutomationThe DS-1500's high-performance Arrow Lake-S CPU, wide temperature range, and robust I/O (including dual LAN and multiple COM/USB ports) make it ideal for demanding automation control, data acquisition, and real-time processing in harsh industrial environments. | 🚛 In-Vehicle ComputingWith MIL-STD-810H shock/vibration compliance, wide voltage input (9–48 VDC), ignition sensing support, and extended temperature operation, the DS-1500 is well-suited for railway, fleet, and mobile applications requiring reliable edge computing. | 📹 Machine VisionDual PCIe expansion slots (up to 130W GPU), fast DDR5 memory, and quad independent display outputs enable the DS-1500 to support high-bandwidth image capture, processing, and multi-camera machine vision deployments. |
Ordering Information
Available configurations and model numbers for the DS-1500 series.
