Industrial Fanless PC

Nuvo-11000

Intel® Core™ Ultra 200S Fanless Embedded Computer with up to 6x 2.5GbE, 8x USB 3.2, & PCIe Expansion

Neousys Technology
Outstanding Performance Partner of the Year 2025 Awarded to Industrial PC, Inc.


Processor

Intel® Core™ Ultra 200S Series



Memory

Up to 128GB DDR5-6400, dual SODIMM



Storage

M.2 NVMe Gen5x4, up to 2x 2.5" SATA HDD/SSD



Dimensions

240 x 225 x 90 mm (E)
240 x 225 x 79 mm (LP)



Operating Temp

-25°C to 70°C (35W CPU), -25°C to 50°C (65W CPU)



Display

1x HDMI, 2x DisplayPort, up to 3840 x 2160

Configure & QuoteSpec SheetOrdering & Resources

About the Nuvo-11000 Series

The Nuvo-11000 Series is a rugged, fanless embedded computer platform built on the Intel® Core™ Ultra 200S Series (LGA1851) processors, supporting up to 24 cores and 24 threads. Available in two chassis heights (240 x 225 x 90 mm for E models, 240 x 225 x 79 mm for LP models), it targets industrial automation, machine vision, and mobile computing applications requiring high performance and reliability in harsh environments.

I/O options include up to 6x 2.5GbE and 1x 1GbE ports (with optional PoE+), 8x USB 3.2 Gen2, isolated 4-CH DI/4-CH DO, 2x RS-232/422/485, and 2x RS-232. Video outputs are provided by 1x HDMI and 2x DisplayPort, supporting up to 4K resolution. Storage is flexible with M.2 NVMe Gen5x4, up to 2x 2.5" SATA bays (RAID 0/1), and hot-swappable trays on LP models. Expansion is supported via a single-slot PCIe Cassette, dual mini-PCIe, and the proprietary MezIO® interface for modular I/O or function add-ons.

With advanced CPU, wide temperature fanless design, and comprehensive industrial connectivity, the Nuvo-11000 Series delivers reliable performance for demanding embedded and automation applications.

Why Industrial PC, Inc?

👴 Our experience is unmatched. We've been around since 1996 (30 years!)

📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.

🤷🏻‍♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!

📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.

⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.

Full Specifications

Nuvo-11000 Series by Neousys — complete technical specifications

System
Processor-Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP
- Intel® Core™ Ultra 9 285/285T
- Intel® Core™ Ultra 7 265/265T
- Intel® Core™ Ultra 5 245/245T/225/225T
ChipsetIntel® H810/ Q870 Platform Controller Hub
GraphicsIntegrated Intel Xe LPG Graphics
AI EngineIntegrated neural processing unit
MemoryUp to 96 GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)
AMTSupports Intel vPro/ AMT 16.0
TPMSupports dTPM 2.0
Storage Interface
SATA HDD- 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1(Nuvo-11000E/11000DE)
- 1x hot-swappable 2.5" HDD tray (7mm HDD/ SSD) and 1x internal 2.5" SATA port, supporting RAID 0/ 1 (Nuvo-11000LP)
M.2 NVMe1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD (Nuvo-11006E/DE/LP)
Power Supply
DC Input1x 3-pin pluggable terminal block for 8V to 48VDC DC input(V+/ GND/ IGN)
Remote Ctrl. & LED Output1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Environmental
Operating Temperature- With 35W CPU: -25°C to 70°C*
- With 65W CPU: -25°C to 70°C* (configured as 35W TDP)
- Configured as 65W TDP: -25°C to 50°C*
Storage Temperature-40°C ~ 85°C
Humidity10%~90%, non-condensing
VibrationOperating, MIL-STD-810H, Method 514.8, Category 4
ShockOperating, MIL-STD-810H, Method 516.8, Procedure I
CertificationsCE/FCC Class A, according to EN 55032 & EN 55035
I/O Interface
Ethernet Port- 1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11002E/LP) with screw-lock
- 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11006E/DE/LP) with screw-lock
- 1x optional 10GBASE-T Ethernet (Nuvo-11006E/ DE/ LP)
PoE+Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB- 8x USB 3.2 Gen2 ports (Nuvo-11006LP/E/DE)
- 2x USB 3.2 Gen2
-2x USB3.2 Gen1 and 4x USB2.0 ports (Nuvo-11002LP/E)
Isolated DIO4-CH isolated DI and 4-CH isolated DO
Video Port- 1x HDMI™, supporting 3840 x 2160 resolution
- 2x DisplayPort, supporting 4096 x 2304 resolution
Serial Port- 2x software-programmable RS-232/ 422/ 485 ports (COM1/ 2)
- 2x 3-wire RS-232 ports (COM3/ 4)
Audio1x 3.5 mm jack for mic-in and speaker-out
Internal Expansion Bus
PCI Express- 1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E)
- 2x PCIe x16 slots@Gen4, 8-lanes PCIe signals in Cassette (11006DE)
Mini PCI Express2x full-size mini PCI Express socket
Expandable I/O1x MezIO® expansion port for Neousys MezIO® modules
Mechanical

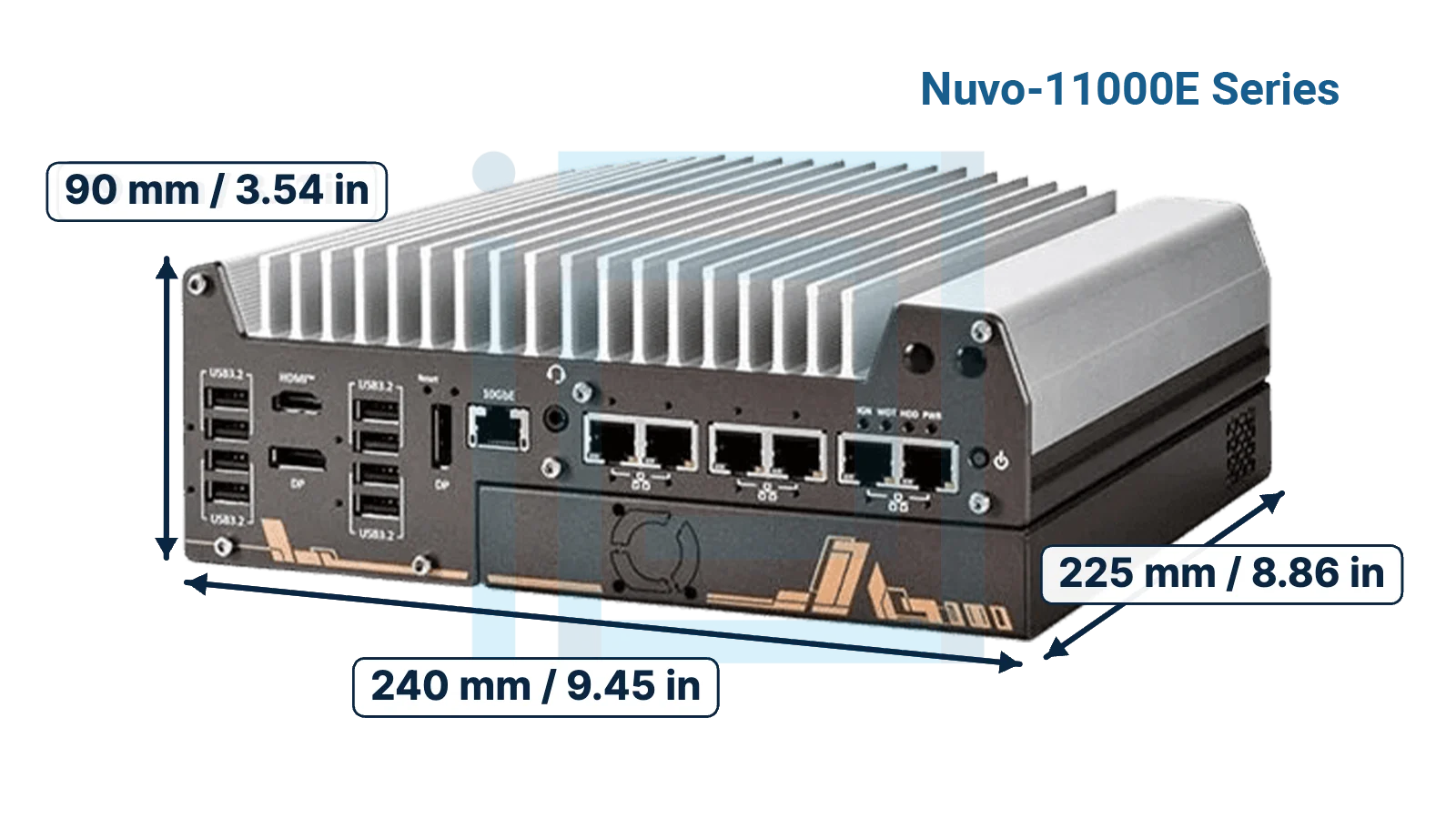

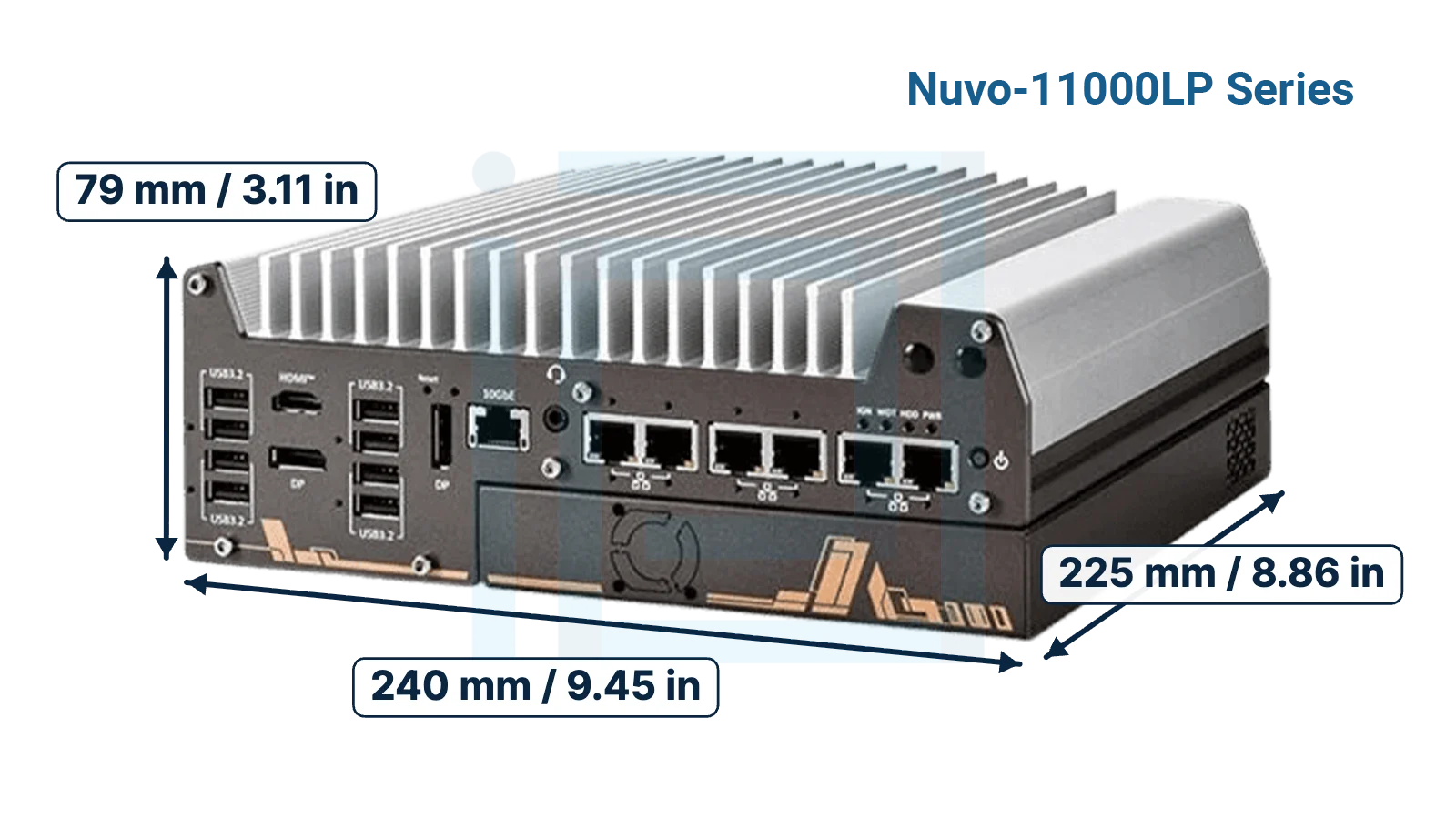

Dimension240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-11000E series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-11000DE series) 240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-11000LP series)
Weight- 3.58 kg (Nuvo-11000E Series)
- 3.89 kg (Nuvo-11000DE series)
- 3.36 kg (Nuvo-11000LP series)
MountingWall-mount (standard) or DIN-rail mount (optional)

Build Your Custom Quote

Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.

Name(Required)
30 Years in Business3-Year WarrantyUS-Based Support

Nuvo-11000 Series is Ideal for Applications Like:

🏭

Factory Automation

The Nuvo-11000 Series offers robust fanless operation, wide temperature support, and extensive industrial I/O including isolated DIO and multiple GbE/2.5GbE ports, making it ideal for demanding automation environments.

🚛

In-Vehicle Computing

With ignition power control (via MezIO®), rugged MIL-STD-810H shock/vibration compliance, and wide DC input, the Nuvo-11000 Series is well-suited for mobile and in-vehicle deployments.

📹

Machine Vision

Up to 8x USB 3.2 Gen2 ports, optional PoE+ for industrial cameras, and high-speed storage/expansion options enable reliable, high-throughput vision system integration.

Ordering Information

Available configurations and model numbers for the Nuvo-11000 Series series.

Base System
Nuvo-11000 SeriesIntel® 14th/13th/12th-Gen Core™ i9/i7/i5/i3 compact fanless computer with 4x 2.5GbE, 4x USB3.2 Gen 1, and 1x hot-swappable HDD tray. Optional ignition power control and 802.3at PoE+ PSE for 4x 2.5GbE ports.
Power Backup Modules
PB-9250J-SA9,250 W·s Standalone Intelligent SuperCAP Power Backup Module
PB-4600J-SA4,600 W·s Standalone Intelligent SuperCAP Power Backup Module
Optional Accessories
PA-120W-OW120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block. Operating temp: -30°C to 70°C
DINRAIL-31DIN-rail mounting assembly for Nuvo-11000 Series series
Fan Kit80mm x 80mm fan kit for Nuvo-11000 Series series (recommended for 65W CPUs at ambient temps above 50°C)
