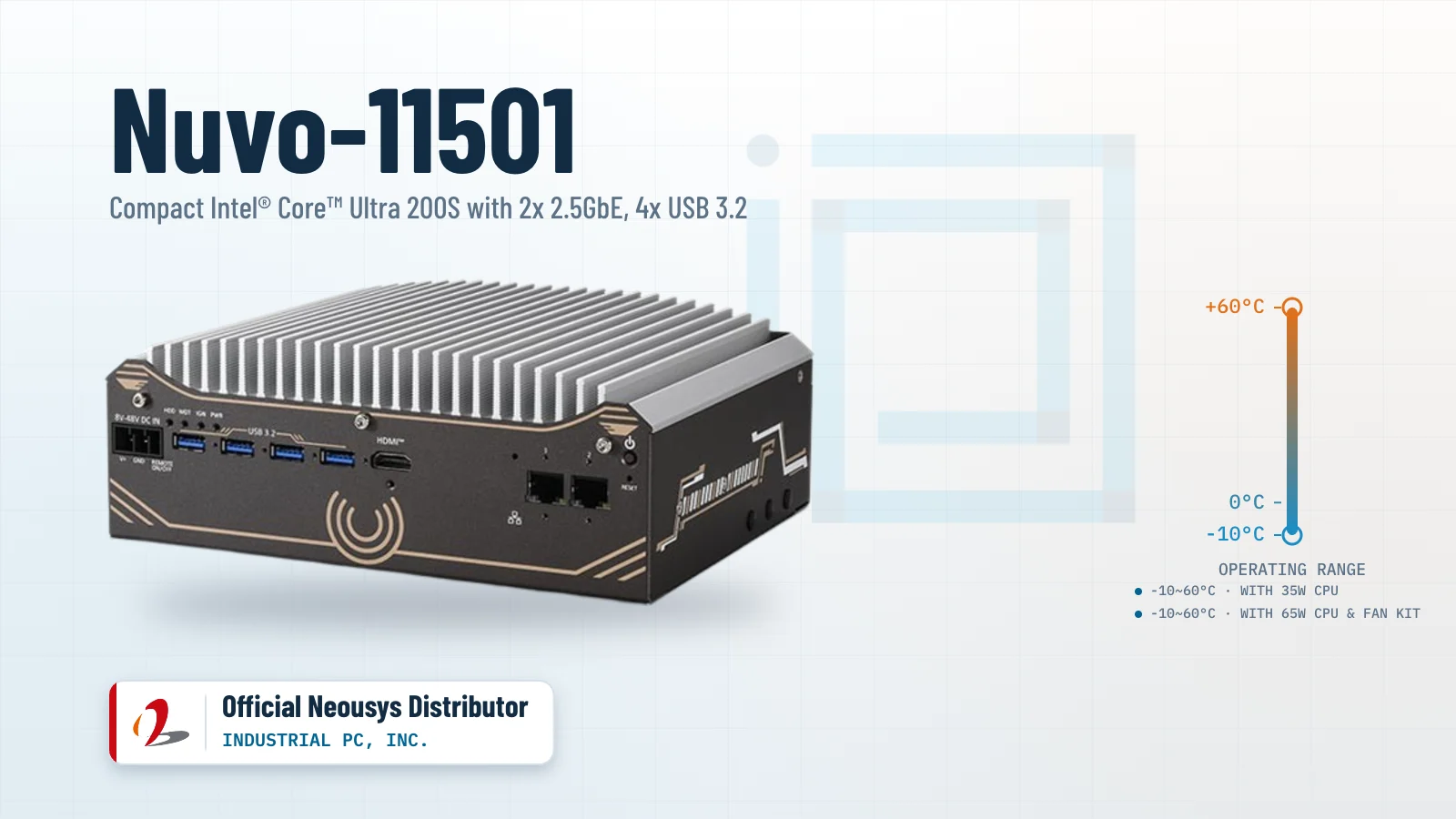

Industrial Fanless PC
Nuvo-11501
Intel® Core™ Ultra 200S Compact Fanless Computer with 2x 2.5GbE, 4x USB 3.2 & Wide-Range DC Input
Processor
Intel® Core™ Ultra 200S series, up to 65W TDP (LGA1851)
Memory
Up to 64GB DDR5 6400 SODIMM
Storage
1x M.2 2280 Gen4x4 NVMe, 1x 2.5"/3.5" SATA HDD/SSD
Dimensions
212 x 165 x 80 mm
Operating Temp
-10°C to 60°C (with 35W or 65W CPU, fan kit recommended above 50°C for 65W)
Display
HDMI + DisplayPort, up to 3840 x 2160
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the Nuvo-11501
The Nuvo-11501 is a compact, fanless embedded computer built on the Intel® Core™ Ultra 200S platform (LGA1851), supporting up to 65W TDP CPUs. With a footprint of 212 x 165 x 80 mm, it is engineered for space-constrained industrial environments such as factory automation, machine vision, and in-vehicle computing.

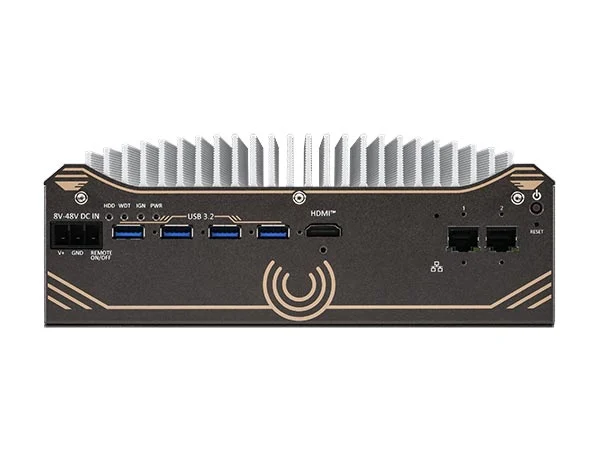

This system offers essential industrial I/O, including dual 2.5GbE LAN, four USB 3.2 Gen1 ports with screw-lock, HDMI and DisplayPort outputs, and multiple serial ports. Storage options include a Gen4x4 M.2 NVMe slot and a 2.5"/3.5" SATA bay, while two mPCIe slots and an M.2 E-Key slot provide flexible expansion for wireless, cellular, or additional COM modules. The 8V–48V wide-range DC input and optional wall or DIN-rail mounting support diverse deployment scenarios.
With rugged fanless construction, wide operating temperature, and modern AI capabilities, the Nuvo-11501 is a reliable solution for demanding industrial and embedded applications.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
Nuvo-11501 by Neousys Technology — complete technical specifications
| Processor | Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP - Intel® Core™ Ultra 9 285/285T - Intel® Core™ Ultra 7 265/265T - Intel® Core™ Ultra 5 245/245T |
| Chipset | Intel® H810 platform controller hub |
| Graphics | Integrated Intel Xe LPG Graphics |
| AI Engine | Integrated neural processing unit (NPU) |
| TPM | fTPM 2.0 (standard) / dTPM 2.0 (optional) |
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E-Key | 1x M.2 2230 E key socket for Wi-Fi module |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input with remote on/off control |
| Operating Temperature | -10°C to 60°C with 35W CPU -10°C to 60°C with 65W CPU (fan kit recommended above 50°C) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90%, non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, EN 55032 & EN 55035 |
| Memory | Up to 64GB DDR5 6400 via one SODIMM slot |
| Ethernet | 2x 2.5GBASE-T Ethernet ports with screw-lock (Intel® I226-V), Port 2 supports Wake-on-LAN (WOL) |
| USB | 4x USB 3.2 Gen1 (5 Gbps) with screw-lock, 2x USB 2.0 |
| Video Output | 1x HDMI (3840 x 2160), 1x DisplayPort (3840 x 2160; not DP++, use active DP-to-HDMI adapter for HDMI output) |

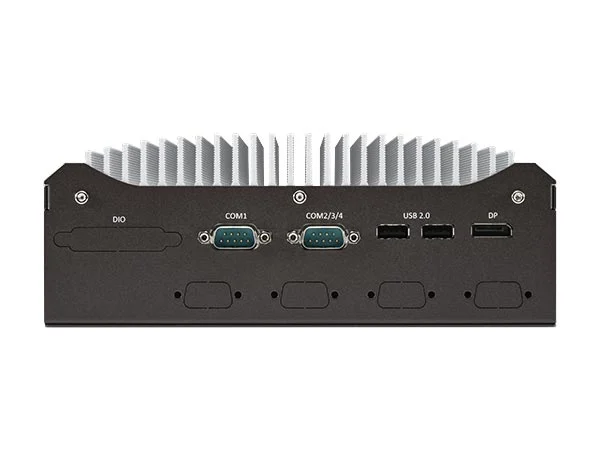

| Serial Ports | 1x software-programmable RS-232/422/485 (COM1), 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2) |
| SATA | 1x Internal SATA port for 1x 3.5” HDD or 1x 2.5” HDD/SSD |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD |
| Dimensions | 212 mm (W) x 165 mm (D) x 80 mm (H) |
| Weight | 2.5 kg (excluding wall mount kit) |
| Mounting | Wall-mount (optional) or DIN-rail mount (optional) |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
Nuvo-11501 is Ideal for Applications Like:
🏭 Factory AutomationThe Nuvo-11501's fanless design, wide 8V–48V DC input, and rugged -10°C to 60°C operating range make it reliable for continuous operation in industrial environments. Essential I/O and expansion options support integration with sensors, PLCs, and control systems. | 🚛 In-Vehicle ComputingCompact form factor, robust vibration/shock compliance (MIL-STD-810H), and wide-range DC input enable deployment in mobile or vehicular platforms. Multiple Ethernet and serial ports support connectivity for fleet management, data logging, or mobile surveillance. | 📹 Machine VisionPowered by Intel® Core™ Ultra 200S processors with integrated NPU for AI inference, the Nuvo-11501 delivers high CPU and AI performance for vision inspection, image processing, and real-time decision-making in automated inspection lines. |
Ordering Information
Available configurations and model numbers for the Nuvo-11501 series.
