Industrial Fanless PC
Nuvo-9006DE
Intel® 14th/13th/12th-Gen Core™ Fanless Industrial Computer with Dual PCIe x16, 6x 2.5GbE, and Wide Temperature Range
Processor
Intel® Core™ (Series 2), 14th/13th/12th-Gen, up to 24 cores/32 threads, 65W/45W/35W TDP
Memory
Up to 128 GB DDR5 4800 SDRAM (2x SODIMM)
Storage
2x SATA for 2.5" HDD/SSD (RAID 0/1), 1x M.2 2280 NVMe (PCIe Gen4x4)
Dimensions
240 mm (W) x 225 mm (D) x 110.5 mm (H)
Operating Temp
-25°C to 70°C (CPU dependent)
Expansion
Dual PCIe x16 Gen3 slots in patented Cassette
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the Nuvo-9006DE
The Nuvo-9006DE is a rugged, fanless embedded computer engineered for industrial and edge applications. Built on Intel® Core™ (Series 2) processors supporting 14th, 13th, and 12th-Gen CPUs (LGA1700 socket), it delivers up to 24 cores and 32 threads of compute power. The system measures 240 mm wide by 225 mm deep and 110.5 mm high, offering a compact yet robust platform for factory automation, machine vision, and in-vehicle deployments.

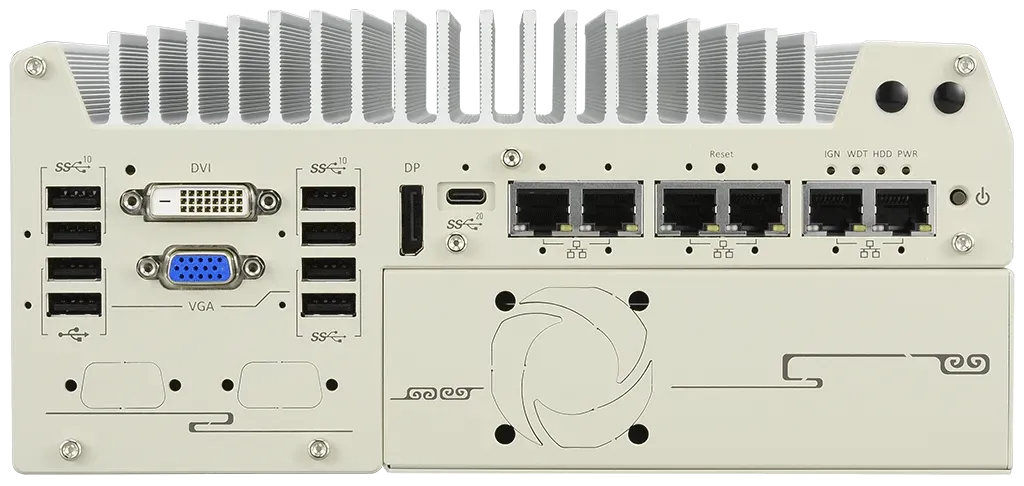

I/O and expansion are key strengths of the Nuvo-9006DE. It features six Ethernet ports (five 2.5GbE and one Gigabit, all with screw-lock), with optional PoE+ on four ports for powering cameras or sensors. Storage options include dual internal SATA ports (RAID 0/1) and a high-speed M.2 2280 NVMe slot (PCIe Gen4x4). The patented Cassette design provides two PCIe x16 Gen3 slots for add-on cards, and additional expansion is available via MezIO®, mini PCIe, and M.2 B key sockets. Comprehensive USB (including 20 Gbps Type-C), serial, and triple independent display outputs (VGA, DVI-D, DisplayPort) round out the connectivity.
With its wide operating temperature range, rugged construction, and versatile expansion, the Nuvo-9006DE is built to meet the demands of industrial automation, transportation, and vision applications.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
Nuvo-9006DE by Neousys Technology — complete technical specifications
| Processor Support | Intel® Core™ (Series 2) with P-cores, 14th/13th/12th-Gen, LGA1700 socket, up to 24C/32T, 35W/45W/65W TDP |
| Chipset | Intel® Q670E platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| AMT | Supports Intel® vPro/AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| SATA | 2x internal SATA ports for 2.5" HDD/SSD, supporting RAID 0/1 |
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) |
| PCI/PCI Express | 2x PCIe x16 slots @ Gen3, 8-lanes PCIe signals in Cassette |
| Mini PCI Express | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/4G module |
| MezIO® | 1x MezIO® expansion port for Neousys MezIO® modules |
| Dimensions | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 3.89 kg |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Memory Type | DDR5 4800 SDRAM |
| Memory Capacity | Up to 128 GB (two SODIMM slots) |
| Ethernet Ports | 5x 2.5GbE (I226-IT) and 1x Gigabit Ethernet (I219-LM), all with screw-lock; optional IEEE 802.3at PoE+ PSE for Port 3–6 (100W total) |
| USB Ports | 1x USB 3.2 Gen2x2 Type-C (20 Gbps, screw-lock), 4x USB 3.2 Gen2x1 Type-A (10 Gbps), 2x USB 3.2 Gen1x1 Type-A (5 Gbps), 2x USB 2.0 |
| Video Outputs | 1x VGA (1920x1200), 1x DVI-D (1920x1200), 1x DisplayPort (4096x2304) |
| Serial Ports | 2x software-programmable RS-232/422/485 (COM1/COM2), 2x RS-232 (COM3/COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Control & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output (Ctrl_In/GND/LED_Out) |
| Operating Temperature | -25°C to 70°C (with 35W CPU), -25°C to 60°C (with 45W CPU), -25°C to 70°C (with 65W CPU configured as 35W TDP), -25°C to 50°C (with 65W CPU configured as 65W TDP) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, EN 55032 & EN 55035 |
| Safety | UL 62368-1, IEC62368-1 (UL series only) |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
Nuvo-9006DE is Ideal for Applications Like:
🏭 Factory AutomationThe Nuvo-9006DE's wide temperature range, fanless design, and robust industrial I/O make it ideal for demanding automation environments. Dual PCIe x16 slots support add-on cards for motion control, vision, or fieldbus integration. | 🚛 In-Vehicle ComputingWith MIL-STD-810H shock/vibration compliance, 8–48V DC input, and extended temperature support, the Nuvo-9006DE is well-suited for mobile and transportation applications requiring rugged reliability and high-performance processing. | 📹 Machine VisionSix Ethernet ports (up to 5x 2.5GbE with PoE+ option), high-speed USB 3.2, and dual PCIe x16 expansion allow the Nuvo-9006DE to connect multiple cameras and frame grabbers, making it an excellent platform for vision inspection and AI inference. |
Ordering Information
Available configurations and model numbers for the Nuvo-9006DE series.
