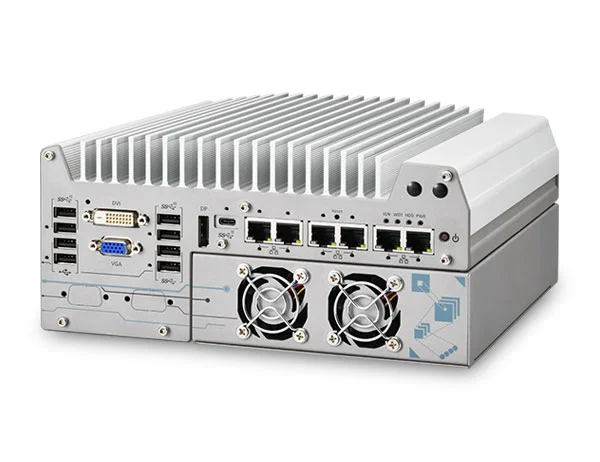

Nuvo-9154GC Industrial Fanless PC
Front

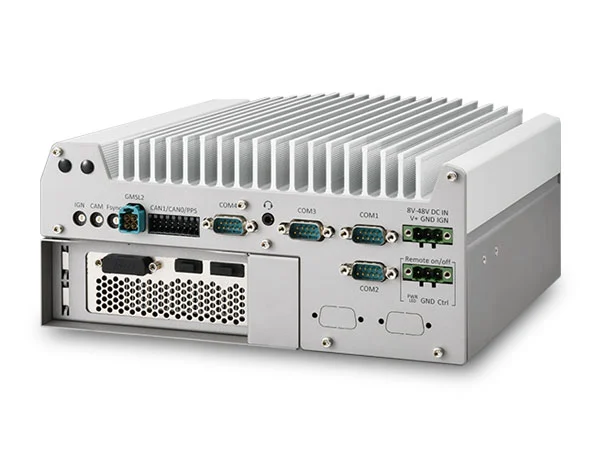

View 2

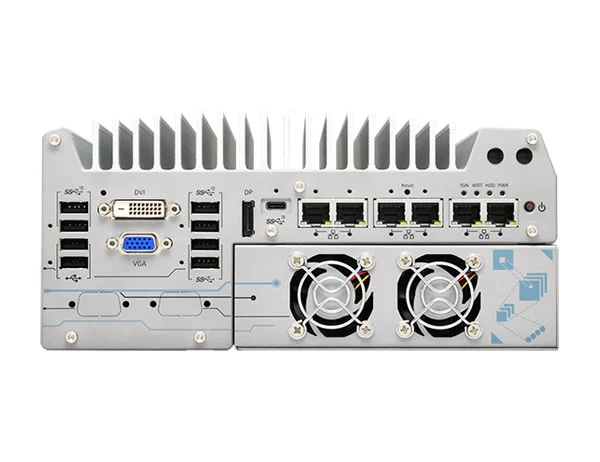

View 3

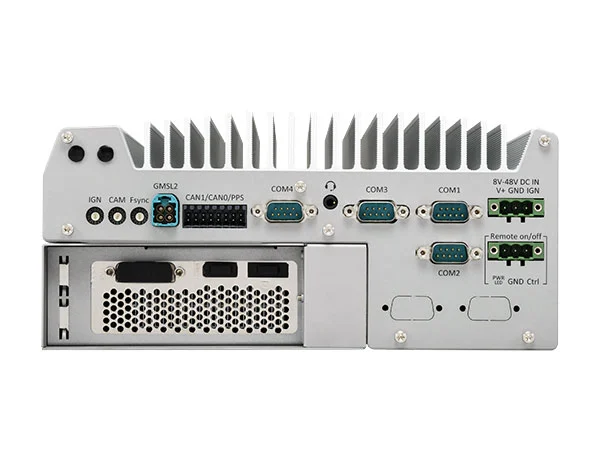

View 4

Rugged GPU Computer

Nuvo-9154GC

Ruggedized GPU Computer Supporting 4x GMSL2 Cameras, 150W NVIDIA® RTX GPU and Intel® 14th/13th/12th-Gen Core™ Processor



Processor

Intel 14th/13th/12th Gen Core (LGA1700)



Memory

Up to 128GB DDR5 4800



Storage

1x M.2 NVMe + 2x 2.5" SATA



Ethernet

5x 2.5GbE, 1x GbE, PoE+



Operating Temp

-25°C to 60°C



Power Input

8–48V DC

Configure & QuoteSpec SheetOrdering & Resources

About the Nuvo-9154GC

The Nuvo-9154GC is engineered specifically for autonomous mobile robots (AMRs) in warehousing, logistics, and agriculture. Combining an Intel® 14th/13th/12th Gen platform with a 150W NVIDIA® RTX GPU, it serves as the ultimate hardware foundation for real-time multi-sensor fusion and complex spatial path planning.

Despite its compact footprint, the Nuvo-9154GC provides driver-ready support for GMSL2 cameras and is packed with rich I/O including 6x USB 3.2, 6x 2.5GbE/GbE with PoE+, and CAN 2.0. Designed for harsh conditions, it utilizes FAKRA connectors and a dedicated GPU bracket to significantly enhance shock and vibration resistance, ensuring long-term stability in demanding AMR environments.

Why Industrial PC, Inc?

👴 Our experience is unmatched. We've been around since 1996 (30 years!)

📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.

🤷🏻‍♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!

📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.

⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.

Full Specifications

Nuvo-9154GC by Neousys — complete technical specifications

System Core
ProcessorIntel 14th/13th/12th Gen Core (LGA1700), 35W/65W TDP
Processor Optionsselect one
  • Core i9-14900
  • Core i9-14900T
  • Core i7-14700
  • Core i7-14700T
  • Core i5-14500
  • Core i5-14400
  • Core i5-14500T
  • Core i3-14100
  • Core i3-14100T
  • Core i9-13900E
  • Core i9-13900TE
  • Core i7-13700E
  • Core i7-13700TE
  • Core i5-13500E
  • Core i5-13400E
  • Core i5-13500TE
  • Core i3-13100E
  • Core i3-13100TE
  • Core i9-12900E
  • Core i9-12900TE
  • Core i7-12700E
  • Core i7-12700TE
  • Core i5-12500E
  • Core i5-12500TE
  • Core i3-12100E
  • Core i3-12100TE
ChipsetIntel Q670E
GraphicsIntegrated Intel UHD Graphics 770 (32EU) / 730 (24EU)
AMTIntel vPro/AMT 16.0
TPMdTPM 2.0
I/O Interface
Ethernet
  • 5x 2.5GbE (Intel I226-IT/I225-IT)
  • 1x GbE (Intel I219-LM)
  • PoE+ on ports 3–6 (802.3at, 100W total)
USB
  • 1x USB 3.2 Gen2x2 Type-C (20Gbps, screw-lock)
  • 4x USB 3.2 Gen2 Type-A (10Gbps)
  • 2x USB 3.2 Gen1 Type-A (5Gbps)
  • 2x USB 2.0 Type-A
Serial Ports
  • 2x RS-232/422/485 (COM1/2)
  • 2x RS-232 (COM3/4)
Video Output
  • 1x VGA (1920x1200)
  • 1x DVI-D (1920x1200)
  • 1x DisplayPort (4096x2304)
CAN Bus2x CAN 2.0 with configurable termination
Audio1x 3.5mm jack (mic-in, speaker-out)
GMSL24x GMSL2 automotive cameras via 1x 4-port Mini-FAKRA Z connector (2x 8MP + 1x 3MP, 4x 5MP, 4x 3MP, or 4x 2MP configurations)
GPS PPS1x isolated GPS PPS input, 1x GPS PPS output, 1x PPS LED
Mechanical
Dimensions240 x 225 x 110.5 mm (W x D x H) / 9.4" x 8.9" x 4.4"
Weight3.97 kg (8.8 lbs)
Mounting
  • Wall mount (included)
  • Damping bracket (optional)
Memory
MemoryUp to 128GB SO-DIMM DDR5 4800 (2x SO-DIMM slots)
Storage
M.2 2280 NVMe1x M.2 2280 M-key (PCIe Gen4 x4 NVMe)
2.5" SATA2x 2.5" (SATA), internal, RAID 0/1
Expansion
PCIe1x PCIe x16 slot (Gen3, 16 lanes) in cassette for NVIDIA GPU up to 150W TDP (max card 178 x 117 mm, dual slot)
Mini PCIe1x full-size Mini PCIe
M.2 B Key1x M.2 3042/3052 B-key with SIM slot for 4G/5G module
Power
DC Input8–48V DC, 3-pin terminal block (12V+ recommended with 35W CPU and 150W GPU, 24V+ with 65W CPU)
Ignition Control15 pre-defined on/off delay modes via panel rotary switch
Remote Control & LED Output1x 3-pin terminal block for remote control and power LED output
Environmental
Operating Temperature
  • -25°C to 60°C (35W TDP, 150W GPU)
  • -25°C to 50°C (65W TDP, 150W GPU)
Storage Temperature-40°C to 85°C
Humidity10–90%, non-condensing
VibrationMIL-STD-810H, Method 514.8, Category 4
ShockMIL-STD-810H, Method 516.8, Procedure I
EMC/EMICE/FCC Class A, EN 55032 & EN 55035

Build Your Custom Quote

Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we’ll put together a custom quote for you.

Name(Required)
30 Years in Business3-Year WarrantyUS-Based Support

Nuvo-9154GC is Ideal for Applications Like:

🤖

Autonomous Mobile Robots

Engineered for SLAM stability and spatial path planning in demanding environments.

🏭

Warehousing & Logistics

Perfect for heavy-duty logistics automation and high-precision object recognition.

👁️

Real-Time Sensor Fusion

Supports 4x GMSL2 cameras and up to 150W NVIDIA RTX GPU for complex AI inference.

Ordering Information

Available configurations and model numbers for the Nuvo-9154GC series.

Nuvo-9154GCRuggedized GPU computer supporting 4x GMSL2 cameras, 150W NVIDIA® RTX GPU and Intel® BTL-S/ 14th/ 13th-Gen Core™ processor
Dmpbr-Nuvo9160Neousys’ patented damping brackets assembly for Nuvo-9160GC
AccsyBx-Cardholder-9160GC-xxNuvo-9160GC GPU bracket kits for NVIDIA® RTX™ 2000 Ada, RTX 2000E Ada, RTX™ 4000 SFF Ada and other selected GPU.
PA-280W-ET2280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temp: -30°C to 60°C
PA-600W-ENC600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temp: -20°C to 70°C
