Industrial Fanless PC
POC-600 Series
Intel® Atom® x7425E Ultra-Compact Fanless Computer with 3x 2.5GbE, PoE+, DDR5, and Wide Temperature Range
Processor
Intel® Atom® x7425E, 4 E-Cores, 12W TDP
Memory
Up to 16 GB DDR5-4800 SODIMM
Storage
1x M.2 2280 SATA interface
Dimensions
56 x 108 x 153 mm
Operating Temp
-25°C to 70°C
Display
2x HDMI™ 1.4b, up to 3840 x 2160
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the POC-600 Series
The POC-600 Series is an ultra-compact fanless embedded computer built on the Intel® Atom® x7425E platform, featuring four efficient cores and a 12W TDP. Measuring just 56 x 108 x 153 mm and weighing 0.98 kg, it is designed for industrial edge deployments where space, power efficiency, and ruggedness are paramount. Primary applications include factory automation, machine vision, and smart transportation systems.

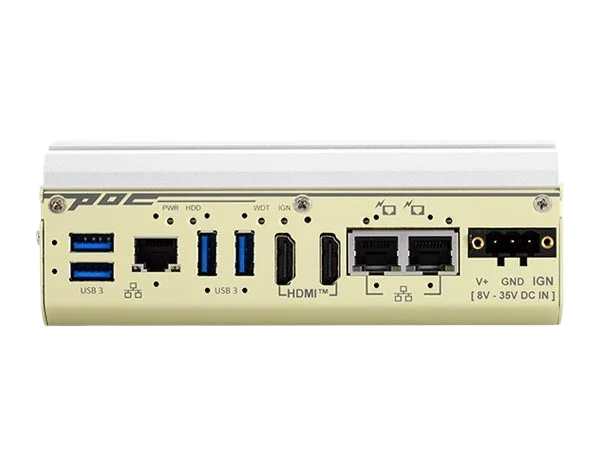

Connectivity on the POC-600 Series includes three 2.5GbE ports (two with PoE+ capability for powering cameras or sensors), four screw-lock USB 3.2 ports, and dual HDMI™ 1.4b outputs supporting up to 3840 x 2160 resolution. Serial communication is flexible with one software-programmable RS-232/422/485 port and additional RS-232 or RS-422/485 options. Storage is provided via a single M.2 2280 SATA slot, and system expansion is supported through the proprietary MezIO® interface for application-specific modules such as isolated DIO or additional storage.
With its combination of wide temperature range, rugged design, and comprehensive industrial I/O, the POC-600 Series is engineered for reliable operation in demanding embedded and automation environments.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
POC-600 Series by Neousys Technology — complete technical specifications
| Processor | Intel® Atom® x7425E, 4 E-Cores (4C/4T), 1.5/3.4 GHz, 12W TDP |
| Graphics | Integrated Intel® UHD Graphics with 24 EUs |
| TPM | Supports dTPM 2.0 |
| M.2 | 1x M.2 2280 SATA interface |
| MezIO® Expansion | 1x MezIO® interface for Neousys MezIO® modules |
| DC Input | 8 to 35V DC via 3-pin pluggable terminal block |
| Dimensions | 56 mm (W) x 108 mm (D) x 153 mm (H) |
| Weight | 0.98 kg |
| Mounting | DIN-rail (standard), wall-mount (optional) |
| EMC | CE/FCC Class A (EN 55032 & EN 55035) |
| Safety | UL 62368-1, IEC 62368-1 |
| Memory | Up to 16 GB DDR5-4800 SDRAM (1x SODIMM socket) |
| Ethernet | 3x 2.5GbE (Intel® I226-IT) |
| PoE+ | IEEE 802.3at PoE+ on port #2 and #3 (POC-600 only), 30W (UL certified), 50W (max) |
| USB | 2x USB 3.2 Gen1 (screw-lock), 2x USB 3.2 Gen2 (screw-lock) |

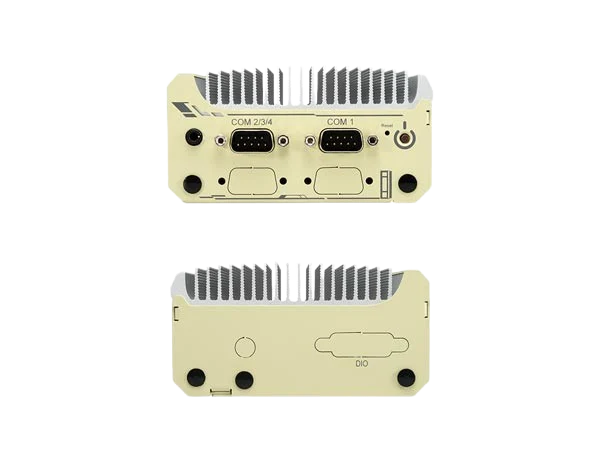

| Serial Ports | 1x software-programmable RS-232/422/485 (COM1), 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2) |
| Video Output | 2x HDMI™ 1.4b (3840 x 2160) |
| Audio | 1x 3.5 mm jack (mic-in & speaker-out) |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
POC-600 Series is Ideal for Applications Like:
🏭 Factory AutomationThe POC-600 Series offers robust fanless operation, wide -25°C to 70°C temperature support, and DIN-rail mounting, making it ideal for deployment in industrial control cabinets and factory environments where reliability and compact size are critical. | 🚛 In-Vehicle ComputingWith 8–35V DC input, MIL-STD-810H shock/vibration compliance, and MezIO® expansion options including ignition control, the POC-600 Series is well-suited for smart transportation and mobile edge computing applications. | 📹 Machine VisionThree 2.5GbE ports (two with PoE+) and four USB 3.2 ports enable direct connection of multiple high-speed cameras and sensors, making the POC-600 Series a strong fit for machine vision and video analytics systems. |
Ordering Information
Available configurations and model numbers for the POC-600 Series series.
