Industrial Fanless PC POC-900AMD® Ryzen™ PRO 8640U Ultra-compact Embedded Computer with 4x PoE+, 4x USB 3.2 & MezIO® Expansion |  Outstanding PerformancePartner of the Year 2025Awarded to Industrial PC, Inc. |
Processor
AMD® Ryzen™ PRO 8640U (6C/12T, 3.5/4.9 GHz, 15W-30W TDP)
Memory
Up to 32 GB DDR5-5600 SDRAM (ECC/non-ECC)
Storage
1x M.2 2280 NVMe SSD (PCIe Gen4 x4)
Dimensions
64 x 116 x 176 mm
2.54 x 4.55 x 6.92 in
Operating Temp
-25°C to 70°C (with fan or 15W TDP)
Display
2x HDMI 2.0b (3840 x 2160 @ 60Hz)
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the POC-900
The POC-900 is an ultra-compact industrial embedded computer powered by the AMD Ryzen PRO 8640U processor (6 cores/12 threads, up to 4.9 GHz) with integrated Radeon RDNA3 graphics and a 16 TOPS NPU for AI workloads. Measuring just 64mm (W) x 116mm (D) x 176mm (H) in its fanless configuration, the POC-900 is designed for space-constrained environments and demanding industrial applications such as factory automation, machine vision, and in-vehicle computing.

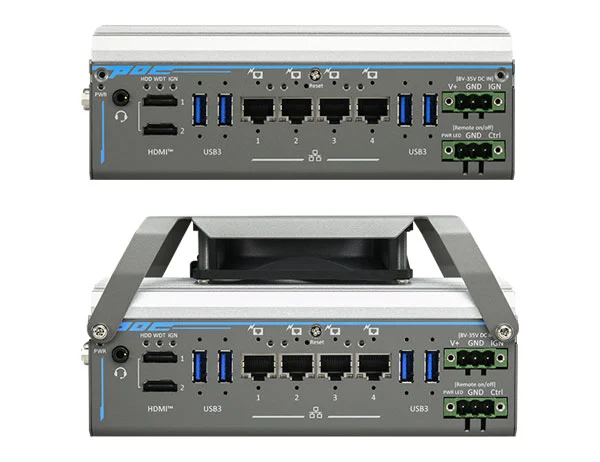

Connectivity and expansion are extensive: the POC-900 features four Intel I350-AM4 Gigabit Ethernet ports with IEEE 802.3at PoE+ (32W budget, 100W max), four USB 3.2 Gen2x1 (10 Gbps) Type-A ports with screw-lock, dual HDMI 2.0b outputs supporting 4K@60Hz, and comprehensive serial and isolated DIO interfaces. Storage is provided via a single M.2 2280 PCIe Gen4 x4 NVMe slot, and expansion options include a full-size mini PCIe slot with micro SIM and a MezIO slot for additional I/O or fieldbus modules.
With its rugged fanless design, wide -25°C to 70°C operating range, and versatile I/O, the POC-900 delivers reliable performance for industrial edge computing and AI-enabled automation.
Why Industrial PC, Inc?
Industrial PC Inc. is proud to be an official partner of Neousys for over 13 years, and a distributor of industrial computers for over 30. This experience and partnership ensures the smoothest transaction and industry-leading support for our customers.
Full Specifications
POC-900 by Neousys — complete technical specifications
| Processor | AMD® Ryzen™ PRO 8640U CPU (6C/12T, 3.5/4.9 GHz, 15W-30W TDP) |
| Graphics | AMD® Radeon RDNA3 Graphics |
| NPU (AI) | 16 TOPs NPU with Ryzen™ AI, 31 TOPs total SoC |
| TPM | Supports dTPM 2.0 |
| Ethernet | 4x GbE ports by Intel® I350-AM4 (with WoL) |
| PoE+ | IEEE 802.3at PoE+ on port #1~4 (32W power budget UL certified, 100W max) |
| USB | 4x USB 3.2 Gen2x1 (10 Gbps) Type-A with screw-lock |
| Video Output | 2x HDMI 2.0b, supporting 3840 x 2160 at 60Hz |
| Serial Ports | 1x SW-programmable RS-232/422/485 (COM1), 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Operating Temperature | -25°C ~ 70°C (15W TDP, fanless) -25°C ~ 45°C (30W TDP, fanless) -25°C ~ 70°C (30W TDP, with fan) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with wall-mount) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with wall-mount) |
| Memory | Up to 32 GB DDR5-5600 SDRAM (one SODIMM socket, ECC/non-ECC) |
| M.2 NVMe | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| SATA HDD | Not supported |
| Mini PCI-E | 1x full-size mini PCI Express socket (PCIe + USB2) with internal micro SIM socket |
| MezIO® Expansion | 1x MezIO® interface for Neousys MezIO® modules |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 35V DC input |
| Remote Control & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimensions | 64mm (W) x 116mm (D) x 176mm (H) (fanless) 92mm (W) x 118mm (D) x 176mm (H) (with fan) |
| Weight | 1.2 kg (fanless) / 1.4 kg (with fan) |
| Mounting | DIN-rail mount (standard), wall-mount (optional) |
| EMC | CE/FCC Class A, EN 55032 & EN 55035 |
| Safety | UL 62368-1, IEC 62368-1 |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
| 30 Years in Business | 3-Year Warranty | US-Based Support |
POC-900 is Ideal for Applications Like:
🏭 Factory AutomationThe POC-900's wide temperature range, DIN-rail mounting, and robust PoE+ connectivity make it ideal for connecting industrial cameras, sensors, and control systems in automated production environments. Its fanless design ensures reliable 24/7 operation in harsh factory conditions. | 🚛 In-Vehicle ComputingWith support for 8–35V DC input, rugged shock/vibration ratings, and MezIO® expansion for ignition control, the POC-900 is well-suited for in-vehicle data acquisition, fleet management, and mobile surveillance applications where reliability and compactness are critical. | 📹 Machine VisionThe POC-900 provides four PoE+ GbE ports for direct camera connectivity, high-speed USB 3.2, and powerful AMD Ryzen™ AI acceleration, making it an excellent choice for edge-based machine vision, inspection, and video analytics deployments. |
Ordering Information
Available configurations and model numbers for the POC-900 series.
DAN BARNETT
DAN BARNETT
Director of Technical Sales
Hard to look at. Easy to get ahold of.
Hard to look at.
Easy to get ahold of.
📲 Or shoot him a text: (463) 317-9987
📲 Or shoot him a text:
(463) 317-9987
Installation & Manual
📖 User ManualComplete installation guide, BIOS configuration, and technical reference. Download Manual → | ⚙️ DriversDownload all required drivers for the POC-900 Get Drivers → |
