QBiX-Pro-RPLA1315EH-A1
Front

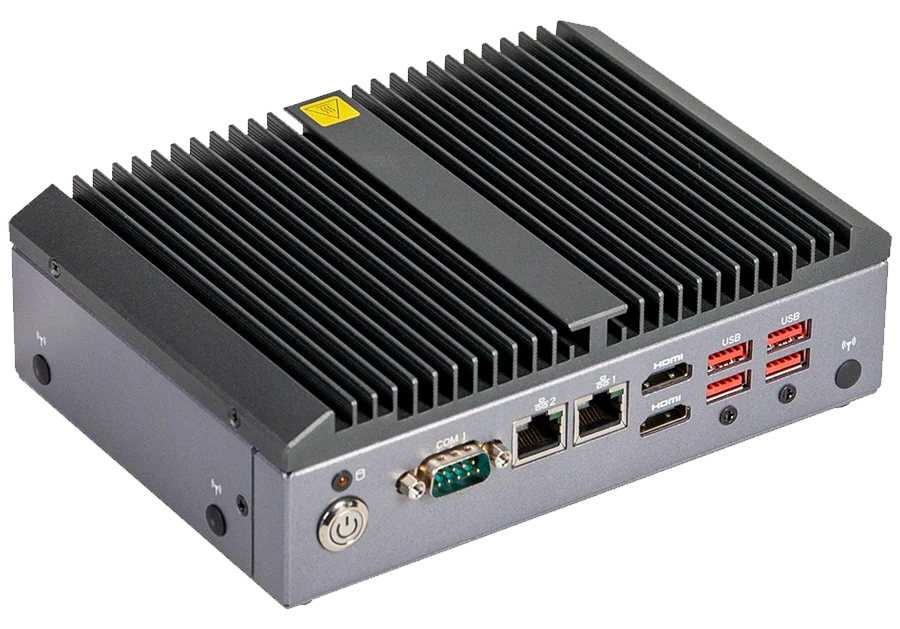

Rear

Industrial Fanless PC

QBiX-Pro-RPLA1315EH-A1

Industrial system with Intel® Core™ i3-1315UE Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI



Processor

Intel® Core™ i3-1315UE Processor
Intel® 7, 6 cores, 2P+4E, 8 threads, up to 4.5 GHz



Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules



Dimensions

178 x 125 x 52.7 mm



Dual Display

2 x HDMI for Dual display



Ethernet

2 x 2.5GbE LAN Ports

Configure & QuoteSpec SheetOrdering & Resources

About the QBiX-Pro-RPLA1315EH-A1

The GIGAIPC QBiX-Pro-RPLA1315EH-A1 is a compact, fanless industrial computer engineered for highly demanding embedded applications, including industrial automation, smart retail, machine vision, and digital signage. Enclosed in a rugged, space-saving chassis measuring just 178 x 125 x 52.7 mm, this system is driven by a 13th-generation Intel® Core™ i3-1315UE processor. This efficient chip features 6 cores (2 Performance-cores and 4 Efficient-cores) and 8 threads, reaching speeds of up to 4.5 GHz. To support data-heavy processing workloads, the system features dual SO-DIMM sockets accommodating up to 64GB of dual-channel DDR4 3200 MHz memory.

Despite its small footprint, this industrial PC offers excellent connectivity, versatile expansion options, and high structural resilience. For networking and display, it comes equipped with dual 2.5GbE LAN ports (utilizing Intel I226V controllers) and two HDMI 2.0 ports capable of outputting dual independent 4K displays at 60Hz. Its comprehensive I/O array includes four USB 3.2 Gen 2x1 ports, two USB 2.0 ports, three COM ports (RS-232/422/485) for legacy hardware integration, and an 8-bit GPIO. Storage and expansion are highly customizable thanks to a 2.5" SATA drive bay, a high-speed M.2 M-Key slot (PCIe Gen 4x4), an M.2 E-Key for wireless cards, and a full-size Mini PCIe slot accompanied by a SIM card slot for cellular deployment.

Why Industrial PC, Inc?

👴 Our experience is unmatched. We've been around since 1996 (30 years!)

📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.

🤷🏻‍♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!

📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.

⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.

Full Specifications

QBiX-Pro-RPLA1315EH-A1 by GIGAIPC — complete technical specifications

System
ProcessorIntel® Core™ i3-1315UE Processor
Intel® 7, 6 cores (2P+4E), 8 threads, up to 4.5 GHz
ChipsetSoC
Memory2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Supports Dual Channel DDR4 3200 MHz memory modules
GraphicsIntegrated Intel® UHD Graphics for 13th Gen Intel® Processors
2 x HDMI 2.0 ports, supporting up to 4096x2160 @60Hz (2 independent display outputs)
AudioRealtek® ALC269
TPMOnboard TPM 2.0 security chip (INFINEON SLB9672VU2.0)
Storage & Expansion
Storage1 x 2.5" HDD/SSD (SATA 6Gb/s)
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
Expansion1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
I/O Interfaces
Ethernet2 x 2.5GbE LAN Ports (Intel® I226V)
Front I/O2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED, 1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional)
Rear I/O2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal block
Side I/O2 x External Antenna Holes (Optional)
Power & Physical
Power Input+9~36VDC (Full Range) via 3-pin Terminal block
EnvironmentOperating Temp: 0°C to 50°C (0-90% humidity, non-condensing)
Vibration: IEC 60068-2-64, 5 Grms, random (with SSD)
Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration
Dimensions178W x 125D x 52.7H (mm)
MountingOptional Wall mount (P/N: 25HB2-CGAA20-CHR)
Optional VESA 75/100 (P/N: 25HB1-TPL021-S8R)

Build Your Custom Quote

Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.

30 Years
Name(Required)
30 Years in Business3-Year WarrantyUS-Based Support

QBiX-Pro-RPLA1315EH-A1 is Ideal for Applications Like:

🖥️

Digital Signage & Kiosks

Dual HDMI 2.0 ports support independent 4K outputs, paired with a fanless design for reliable, low-maintenance commercial display deployment.

🤖

Edge IoT & Automation

Dual 2.5GbE LAN, an 8-bit GPIO, and three COM ports offer direct, high-speed interface connectivity for edge sensors and legacy PLCs.

📡

Mobile Gateways & Telematics

Wide 9-36V DC input, specialized shock/vibration resistance, and a built-in SIM slot provide durable cellular tracking for fleet management.

Installation & Manual

🔌

Spec Sheet

View the full specifications for QBiX-Pro-RPLA1315EH-A1 here

View the Guide →
📖

User Manual

Complete installation guide, BIOS configuration, and technical reference.

Download Manual →

Ready to Build Your QBiX-Pro-RPLA1315EH-A1?

Custom-configured and tested before it ships. Talk to an engineer today.

Request a Quote →

Frequently Asked Questions

What processor powers the QBiX-Pro-RPLA1315EH-A1, and can it be upgraded?
The system is powered by an integrated 13th Gen Intel® Core™ i3-1315UE SoC architecture featuring 6 cores (2P+4E) and 8 threads[cite: 15]. Because it uses an embedded SoC design, the processor is soldered to the motherboard and cannot be upgraded after purchase, but the system supports up to 64GB of dual-channel DDR4 memory via two SO-DIMM slots[cite: 15].
What kinds of displays and resolutions does this system support?
It features two HDMI 2.0 ports driven by integrated Intel® UHD Graphics[cite: 15]. It supports up to two independent display outputs simultaneously, with each port capable of handling a maximum resolution of 4096x2160 @60Hz[cite: 15].
Can I add wireless or cellular connectivity to this computer?
Yes. For wireless expansion, the board includes an M.2 2230 E-Key slot typically used for Wi-Fi/Bluetooth modules, alongside a full-size Mini PCIe slot paired with an integrated SIM card slot for cellular deployment[cite: 15]. The chassis also includes pre-drilled optional external antenna holes on the front and sides[cite: 15].
What are the power requirements and environmental tolerances?
The unit operates on a wide-range +9V to 36V DC input utilizing a secure 3-pin terminal block[cite: 15]. Its rugged, fanless enclosure supports an operating temperature range of 0°C to 50°C and passes strict IEC 60068-2-64 vibration and IEC 60068-2-27 operational shock standards when configured with an SSD[cite: 15].
