SB-244-1J64
PRODUCT HIGHLIGHTS
- Intel® Celeron® J6412 Processor
- Quad Gigabit LAN
- HDMI & DisplayPort Video Outputs
- SATA & M.2 SSD Storage
- Expandable with Mini-PCIe & M.2
- Six Serial Ports (2 Standard, 4 Optional)
- Six USB Ports (2 x USB 3.1, 4 x USB 2.0)
- Fanless & Rugged Design
- Wide Temperature Operation (-10°C to 60°C)
- SIM Card Slot for 3G/4G
- Programmable GPIO
About the Computer

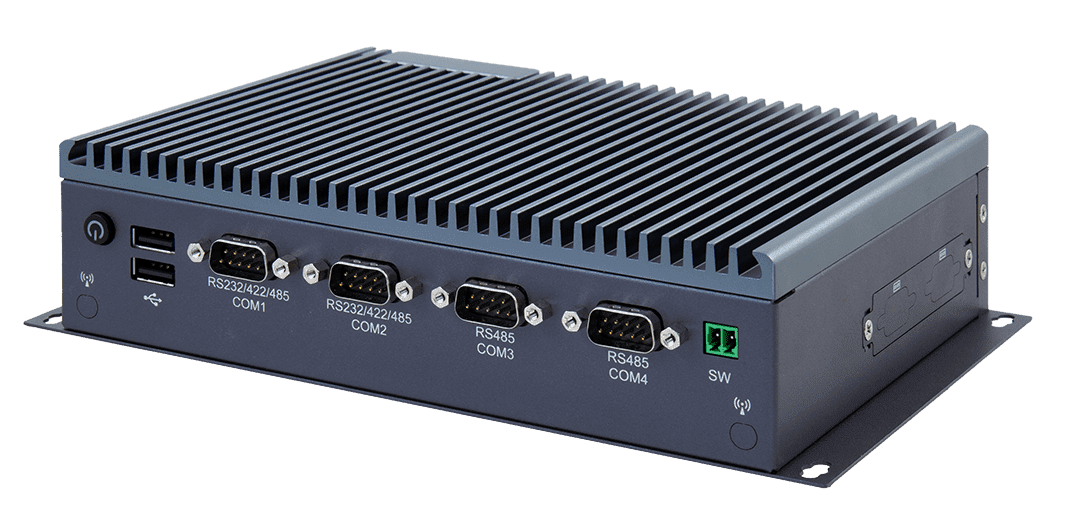

Arbor SB-244-1J64 Embedded Computer
The SB-244-1J64 is more than just an industrial PC; it’s a versatile solution designed to meet the evolving demands of modern automation. Packed with features like quad Gigabit LAN, 4K video output, and ample expansion options, this fanless PC delivers reliable performance in even the harshest industrial environments.
Whether you need to streamline operations, monitor critical processes, or integrate complex systems, the SB-244-1J64 offers the power, flexibility, and durability you need to succeed.
About the Distributor
Industrial PC, Inc.
Industrial PC, Inc. is your US-leader in industrial computing since 1996. We’ll help you find the right solution, provide custom integrations, and deliver your computer(s) ready-to-use upon arrival.
Our US-based support prides itself in communicating with you every step of the way.
Feel free to place your order on this page, or reach out to us any time if you have questions or need assistance making sure you find the right product and configuration.
3 Ways to Find Your Perfect Industrial PC:
TIP: When building your computer, each section allows you to select one option, multiple options, or no option if you’re unsure. Fill out as little or as much information as you know and we’ll take it from there!
LET’S BUILD YOUR INDUSTRIAL PC TOGETHER
TELL US YOUR INDUSTRIAL PC REQUIREMENTS
TIP: When building your quote below, each section allows you to select one option, multiple options, or no option if you’re unsure. Fill out as little or as much information as you know and we’ll take it from there!
Build Your Easy PC Quote
Your selections
SB-244-1J64
Specifications
SB-244-1J64
Specifications
| System | |
|---|---|
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz) |
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 32G) 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN Chipset | Intel I210AT Intel I226-V |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| Qualification | |
|---|---|
| Certification | CCC, CE, FCC |
| Power System | |
|---|---|
| Power Input | 12-24V DC, 2-pin phoenix connector |
| Audio | |
|---|---|
| Type | 1 x Audio(Line-out & Mic-in) Chip 888S/897 |
| Environmental | |
|---|---|
| Operating Temperature | -10 ~ 60°C |
| Storage Temperature | -40 ~ 85°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms, operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| ESD | Contact 6KV, Air 10KV |
| Storage | |
|---|---|
| Device | 1 x SATA 3.1 (2.5” HD) 1 x M.2 2242 (SATA3.0) 128GB M.2 SSD pre-installed*(CTOS) |
| Mechanical | |
|---|---|
| Button | 1 x Power button W/Led |
| Chassis | Aluminum Alloy |
| Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) |
| Weight (Net) | 1.5kg |
| Dimensions (W x H x D) | 200 x 153 x 52.8 mm |
| External I/O | |
|---|---|
| Serial Ports | 2 x RS232/RS422/RS485 (default RS-232) with auto flow control 2 x RS485 2 x RS232 (optional by internal pin head) |
| USB Ports | 2 x USB3.1 4 x USB2.0 1 x USB2.0 (for security dongle) |
| LAN | 4 x RJ45 |
| Video Ports | 1 x HDMI up to 4096 x 2160 @ 24 Hz 1 x DP up to 4096 x 2160 @ 60 Hz |
| GPIO Remote | 1 x 8bit programmable GPIO (default 3.3V, 5V optional) (optional by internal pin head) |
| Remote | 1 x SW |
| Indicators | 1 x Power LED(Green for Power-on, Blink for Sleep mode, Off for Power-off) |
| Internal I/O | |
|---|---|
| Expansion Slot | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x E-Key M.2 2230 slot (PCIe/USB2.0 signal supported) 1 x M.2 2242 SSD slot(SATA signal supported) |
| SIM Card | 1 x SIM Card socket for 3G/4G module |
| GPIO | 1 x 8bit programmable GPIO (default 3.3V, 5V optional) (optional by internal pin head) |
| OS Support | |
|---|---|
| System | Windows 10, Ubuntu 20.04 |
| Ordering Information | |
|---|---|
| SB-R64X-W44A-R4S128 | Fanless System with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, 4xLAN, 4xCOM(up to 6), 6xUSB, 1xHDMI, 1xDP, DC 12-24V power input |
| AC-DC Power Adapter (US) | Input: 100V-240V, Output: 12V/5A; W/2-pin Terminal Block with screws, US Plug |
| AC-DC Power Adapter (EU) | Input: 100V-240V, Output: 12V/5A; W/2-pin Terminal Block with screws, EU Plug |
*CTOS means Configure-to-Order Service.
Order the SB-244-1J64
By partnering with IndustrialPC, customers gain access to a team of experts who understand the unique demands of industrial computing and can provide tailored guidance to meet specific application needs.
IndustrialPC offers custom configurations, competitive pricing, fast shipping, and dedicated technical support, ensuring a seamless and successful experience for businesses investing in the SB-244-1J64 for their automation needs.
Frequently Asked Questions
What operating systems are compatible with the SB-244-1J64?
The SB-244-1J64 is compatible with both Windows 10 and Ubuntu 20.04. You can choose your preferred operating system during the configuration process.
Can I upgrade the storage or memory after purchase?
Yes, the SB-244-1J64 offers flexibility for future upgrades. It has a SO-DIMM slot for memory expansion up to 32GB and supports both a 2.5″ SATA drive and an M.2 SSD for storage.
What are the expansion options available with this model?
The SB-244-1J64 features a Mini-PCIe slot and an E-Key M.2 slot for adding various expansion cards, such as WiFi modules, additional storage, or I/O interfaces.
Is the SB-244-1J64 suitable for harsh industrial conditions?
Absolutely. Its rugged fanless design, wide operating temperature range (-10°C to 60°C), and resistance to shock and vibration make it ideal for challenging industrial environments.
What is the purpose of the programmable GPIO?
The programmable GPIO (General Purpose Input/Output) provides 8-bit digital input/output pins, allowing users to customize the system’s functionality and control external devices for specific automation tasks.
