Industrial Fanless PC
SXC-FP530
AMD Ryzen™ Embedded R2000 Fanless Mini PC with Quad 4K HDMI, Dual GbE, and Wide Temperature Support
Processor
AMD Ryzen™ Embedded R2314/R2514, 4 cores, up to 3.7GHz
Memory
Up to 64GB DDR4, dual channel SO-DIMM
Storage
M.2 Key M (NVMe/SATA SSD), M.2 Key B (SATA SSD/4G)
Dimensions
190 x 150 x 35 mm
Operating Temp
-20°C to 60°C
Display
4 x HDMI 2.0, up to 4K @ 60Hz
| Configure & Quote | Spec Sheet | Ordering & Resources |
About the SXC-FP530
The SXC-FP530 is a compact, fanless embedded mini PC built on the AMD Ryzen™ Embedded R2000 platform, with processor options up to the R2514 (4 cores/8 threads, up to 3.7GHz). Measuring just 190 x 150 x 35 mm and weighing 1.06 kg, it targets industrial automation, digital signage, control rooms, and edge computing applications that demand robust performance in a small footprint.

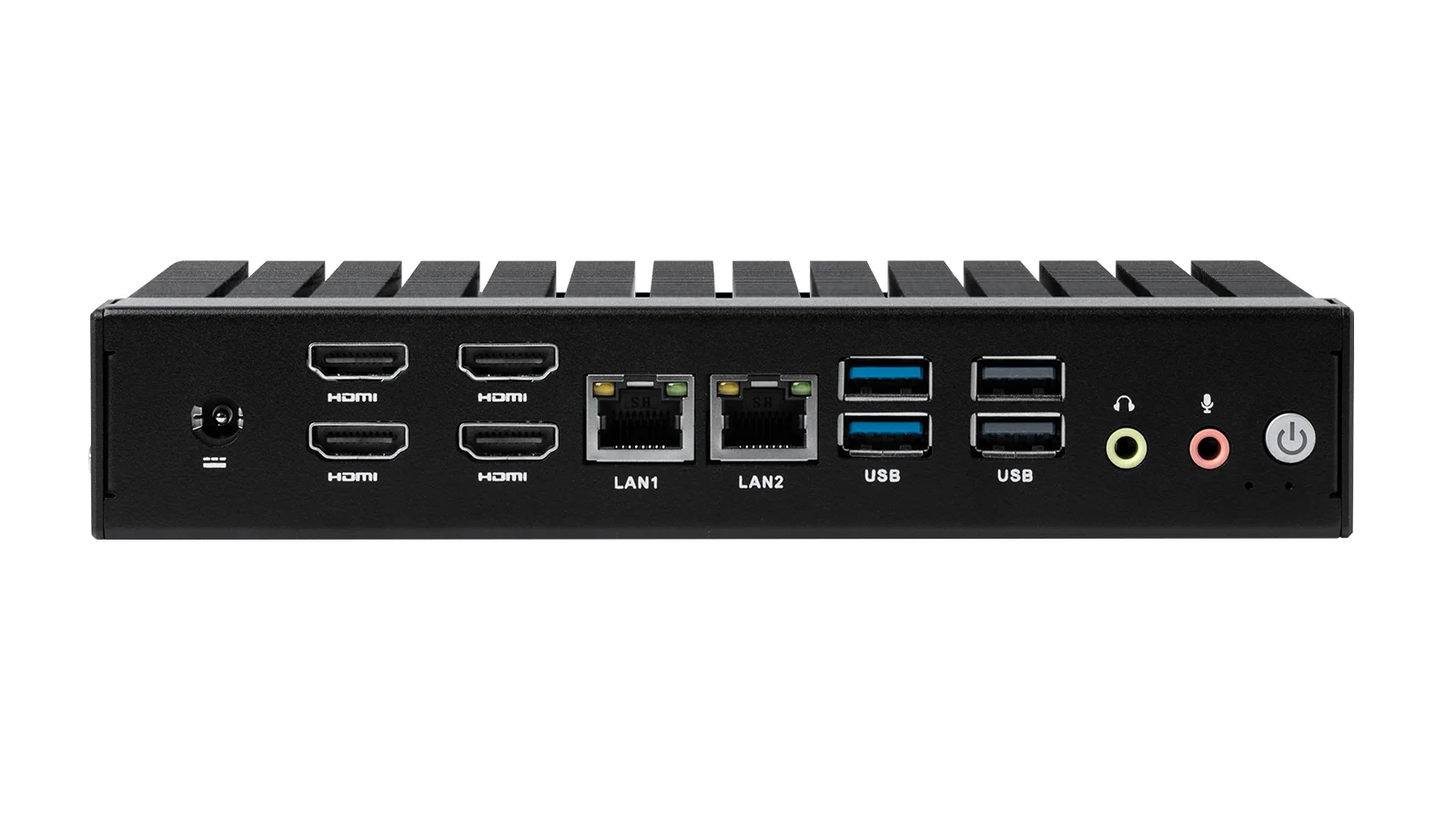

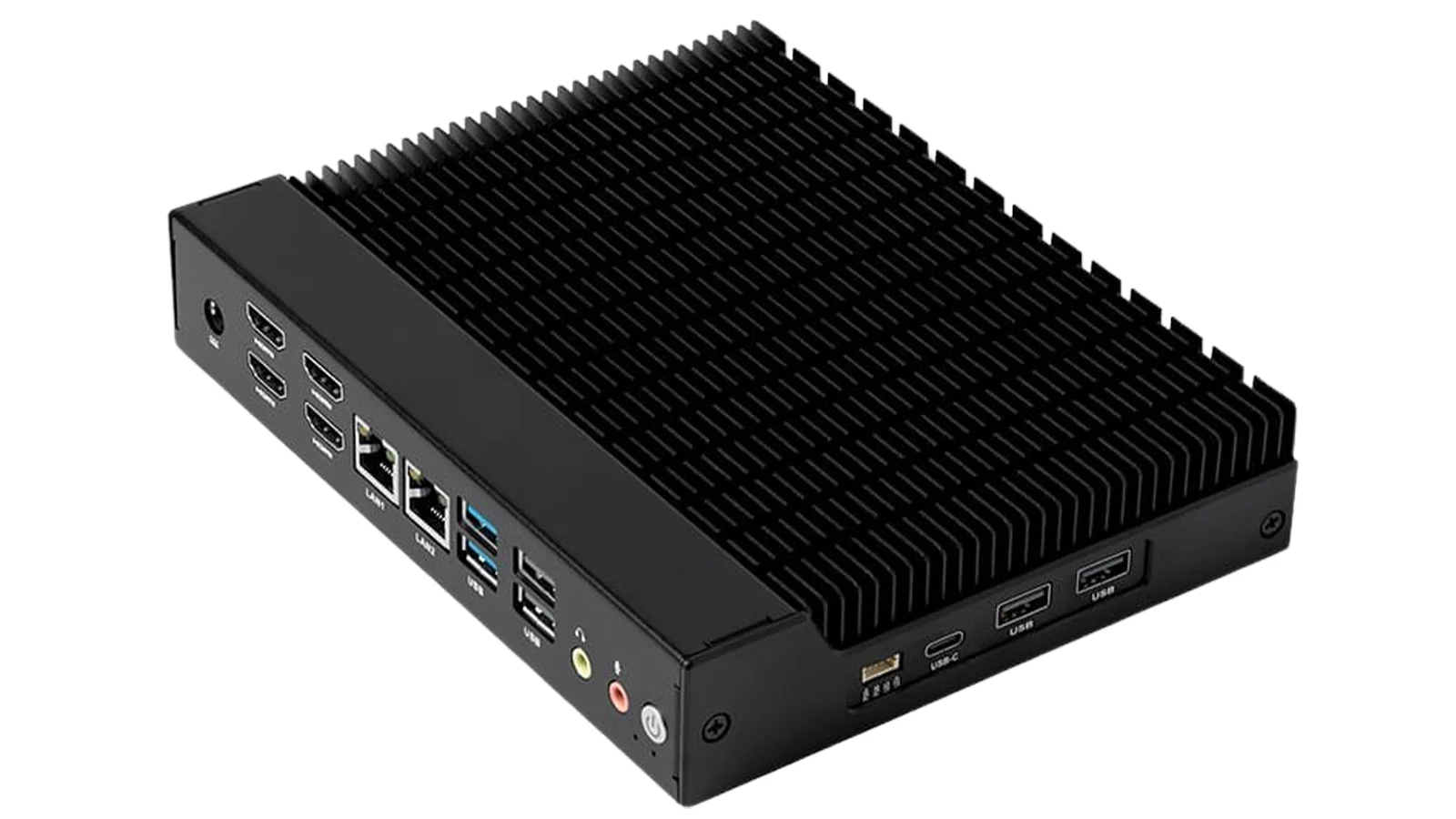

This system features four HDMI 2.0 outputs supporting up to 4K@60Hz, dual Gigabit Ethernet, two COM ports (RS232/RS485), and seven USB ports (2 x USB 3.2, 4 x USB 2.0, 1 x USB-C). Storage is handled via M.2 Key M (NVMe/SATA SSD) and M.2 Key B (SATA SSD or 4G module), with additional expansion for Wi-Fi/Bluetooth and a Nano SIM slot. Power input is flexible, supporting 12V/19V DC-IN or 9–35V via Phoenix connector.
With its fanless design, wide temperature range, and rich industrial I/O, the SXC-FP530 is engineered for reliable operation in demanding embedded and industrial environments.
Why Industrial PC, Inc?
👴 Our experience is unmatched. We've been around since 1996 (30 years!)
📲 We're easy to reach. Our owners and decision-makers answer the phone. Not an off-shore call center.
🤷🏻♂️ We don't care how many computers you need. A thousand? Great! Just one? Awesome!
📦 We make it easy. We can help you find the right PC, ship it to you ready-to-go out of the box, and our technical support & 3-year warranty will be here when you need us.
⚙️ Endless options available. We have a wide variety in-stock but can also track down and/or customize whatever you need.
Full Specifications
SXC-FP530 by Maxtang — complete technical specifications
| Processor | AMD Ryzen™ Embedded R2314 / R2514 (4C/4T or 4C/8T, 2.10–3.70GHz, 4MB L3, 15W TDP) |
| Graphics | AMD Radeon™ Graphics (integrated, supports up to 4 displays) |
| BIOS | AMI UEFI BIOS |
| Ethernet | 2 x Realtek RTL8111H (10/100/1000Mbps, RJ45, Wake-on-LAN) |
| USB | 2 x USB 3.2, 4 x USB 2.0, 1 x USB-C (USB 3.2 only) |
| COM | 2 x COM (RS232 by default, RS485 optional via hardware change) |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC897) |
| Wired Control | 1 x Wired Control |
| CLR_CMOS | Supported |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Cooling | Passive (fanless) |
| Type | Dual Channel SO-DIMM DDR4 |
| Max Capacity | 64GB |
| Outputs | 4 x HDMI 2.0 |
| Max Resolution | Up to 4K @ 60Hz |
| HDMI Hot-Plug Lock | Supported |
| M.2 Key M | 1 x M.2 2280 NVMe/SATA SSD |
| M.2 Key B | 1 x M.2 2242/2280 SATA SSD or 3042 4G Module |
| M.2 Key E | 1 x M.2 2230 for Wi-Fi/Bluetooth |
| Nano SIM | 1 x Nano SIM Slot |
| Standard Input | 12V/19V DC-IN |
| Optional Input | 9–35V via Phoenix Connector |
| Dimensions | 190 mm x 150 mm x 35 mm |
| Weight | 1.06 kg (net) |
| TPM | Onboard, optional |
| RTC | Real Time Clock, daily scheduling |
| Operating System | Windows 10/11 64-bit, Linux 64-bit |
Build Your Custom Quote
Let us know any specific requirements (processor, memory, I/O, power, mounting, lead times, etc.) and we'll put together a custom quote for you.
