JHC Technology
Industrial Computers
Whether it’s powering SCADA systems in smart steel plants, assisting energy storage EMS systems, powering traffic and surveillance, or monitoring reservoir dams, JHC Technology’s embedded industrial computers are at the forefront of enabling intelligent, reliable, and efficient operations across critical industries. Their commitment to innovation, quality, and customer-centric solutions positions them as a valuable partner in the ongoing digital transformation of the industrial world.

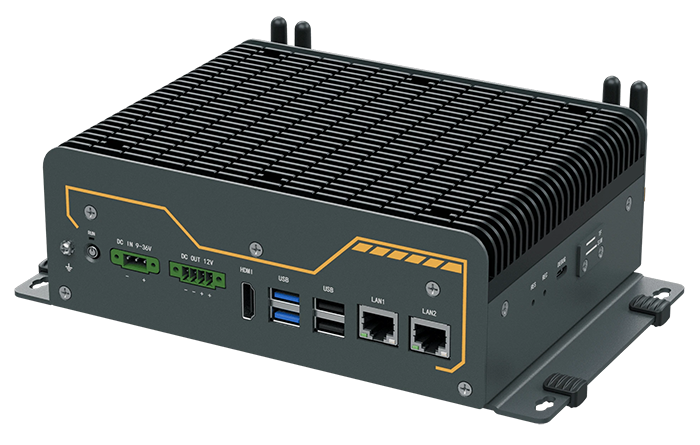

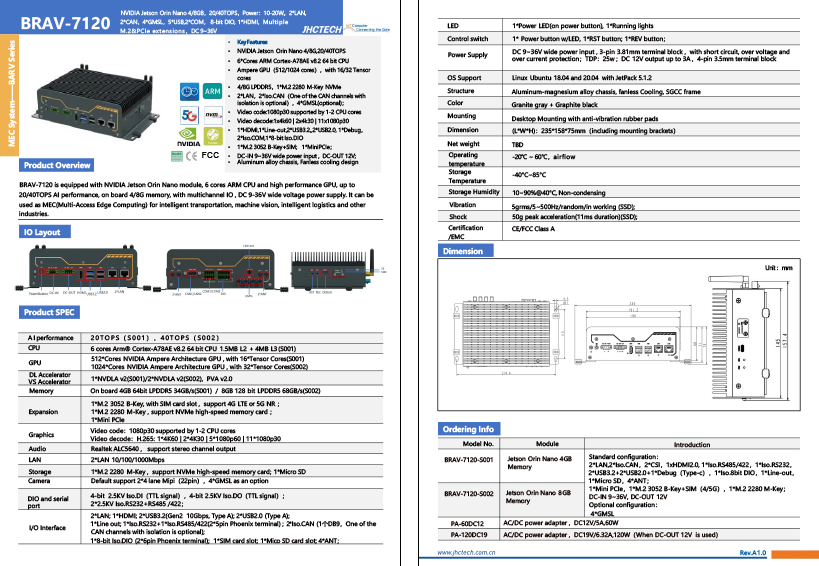

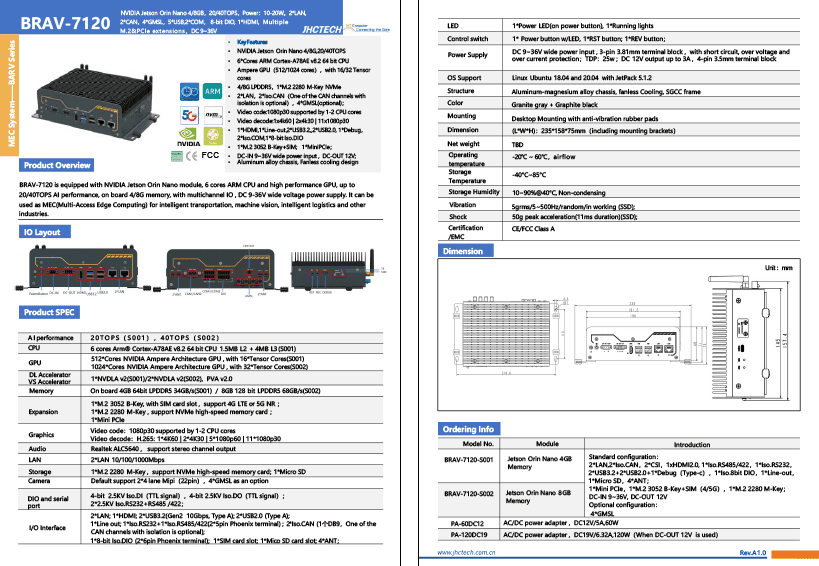

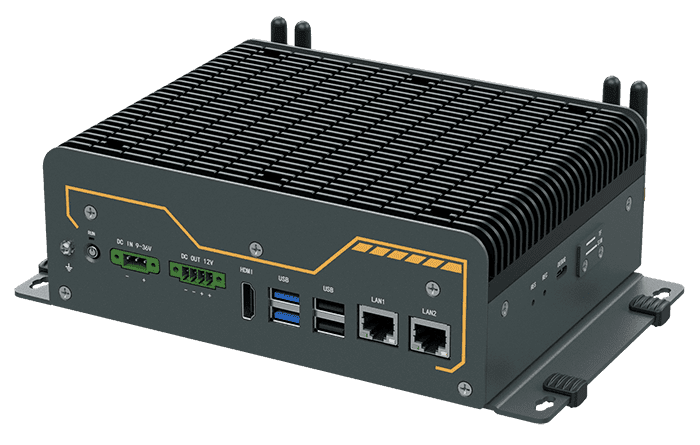

BRAV-7120
NVIDIA Jetson Orin Nano 4/8GB
BRAV-7120 is equipped with NVIDIA Jetson Orin Nano module, 6 cores ARM CPU and high performance GPU, up to 20/40TOPS AI performance, on board 4/8G memory, with multichannel IO , DC 9-36V wide voltage power supply. It can be used as MEC (Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.

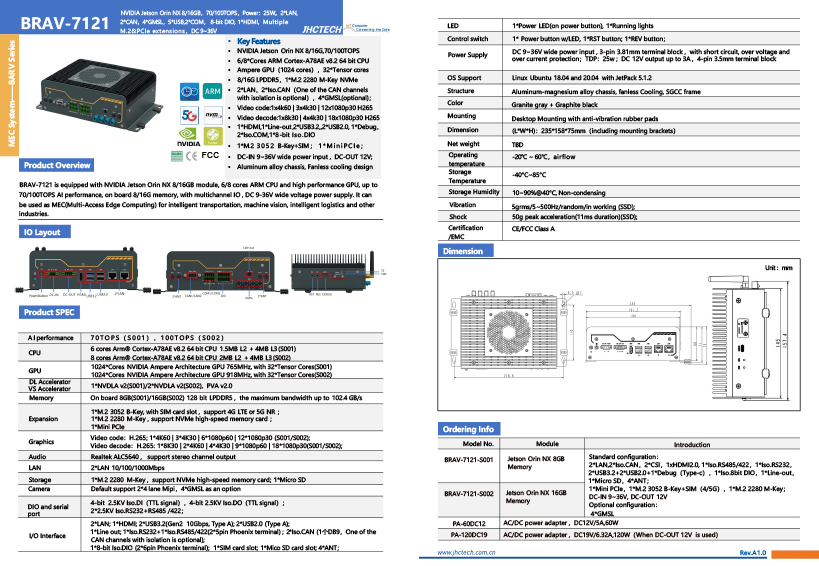

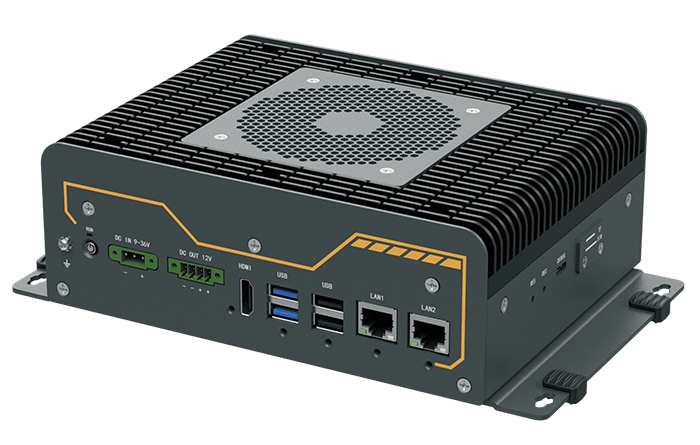

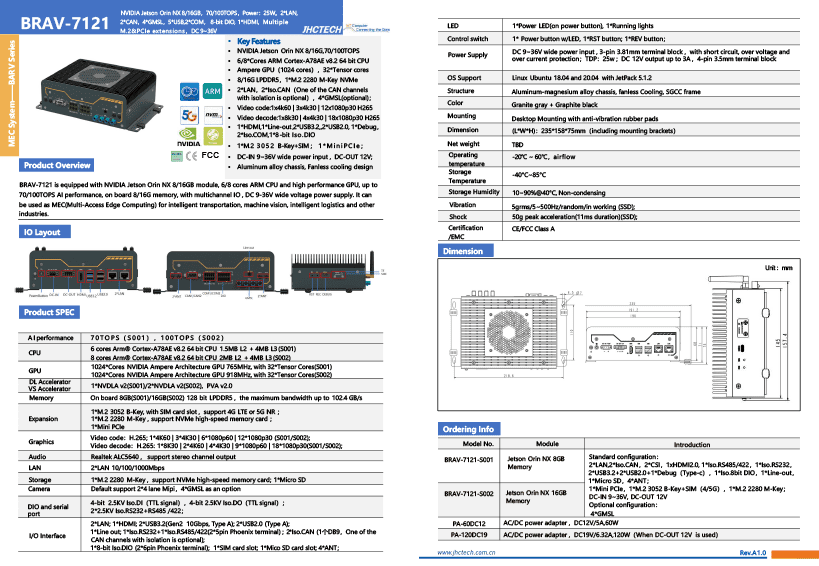

BRAV-7121
NVIDIA Jetson Orin NX 8/16GB
BRAV-7121 is equipped with NVIDIA Jetson Orin NX 8/16GB module, 6/8 cores ARM CPU and high performance GPU, up to 70/100TOPS AI performance, on board 8/16G memory, multichannel IO and clock synchronization, DC 9-36V wide voltage power supply. It can be used as MEC (Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.

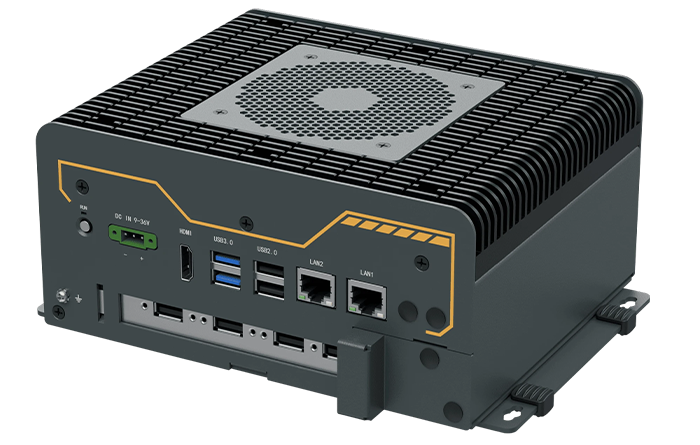

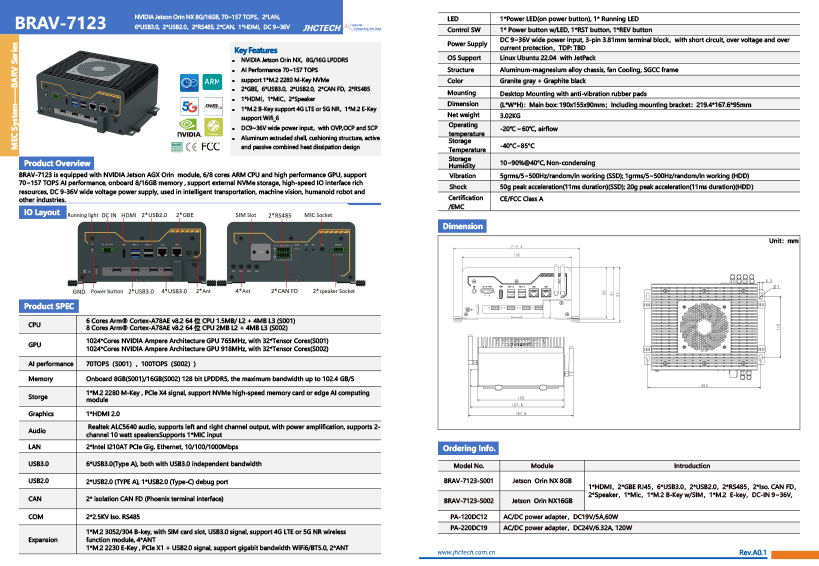

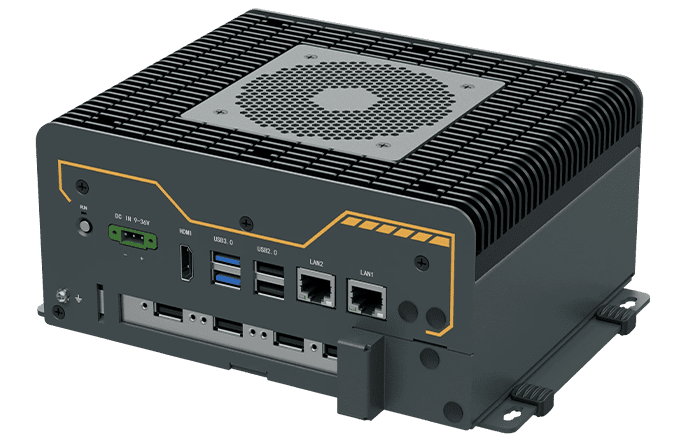

BRAV-7123
NVIDIA Jetson Orin NX 8G/16GB
BRAV-7123 is equipped with NVIDIA Jetson AGX Orin module, 6/8 cores ARM CPU and high performance GPU, support 70~157 TOPS AI performance, onboard 8/16GB memory , support external NVMe storage, high-speed IO interface rich resources, DC 9-36V wide voltage power supply, used in intelligent transportation, machine vision, humanoid robot and other industries.

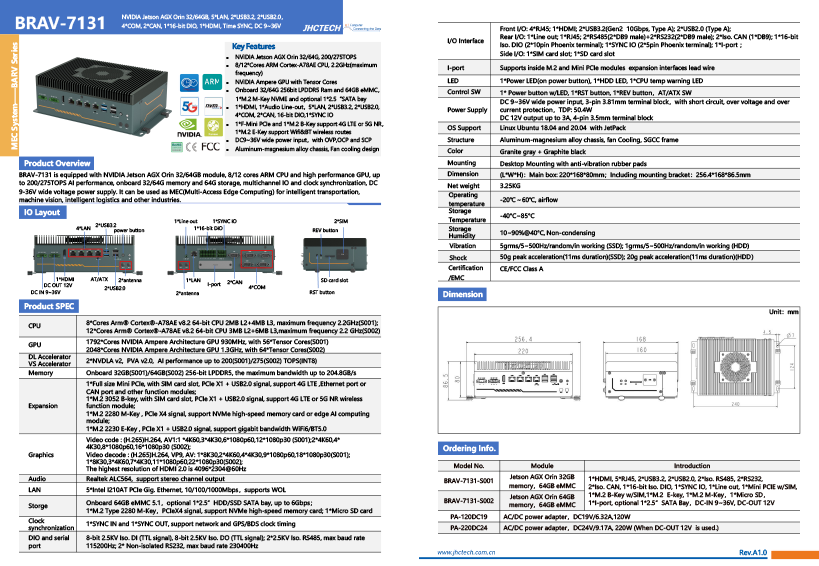

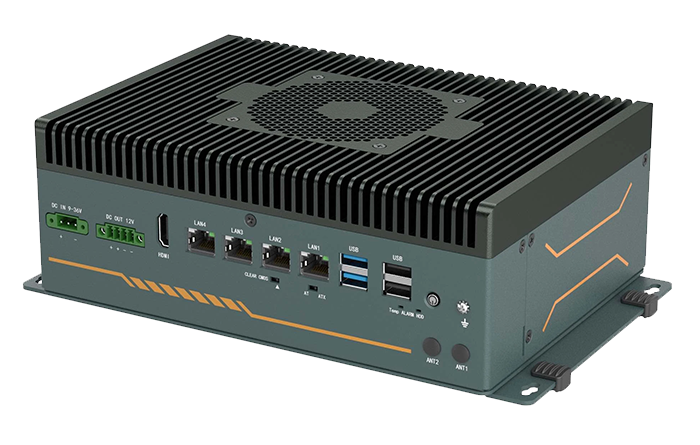

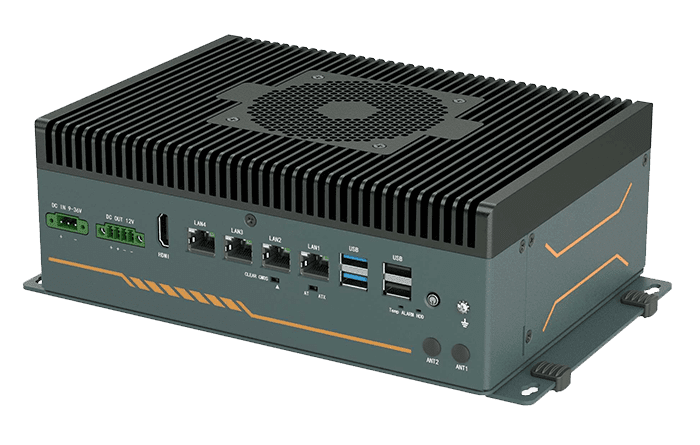

BRAV-7131
NVIDIA Jetson AGX Orin 32/64GB
BRAV-7131 is equipped with NVIDIA Jetson AGX Orin 32/64GB module, 8/12 cores ARM CPU and high-performance GPU, up to 200/275TOPS AI performance, onboard 32/64G memory and 64G storage, multichannel IO and clock synchronization, DC 9-36V wide voltage power supply. It can be used as MEC(Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.

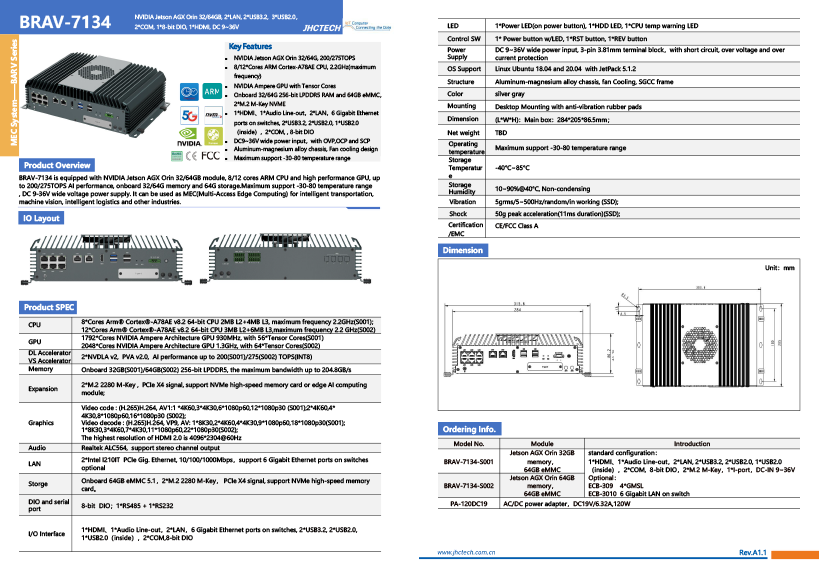

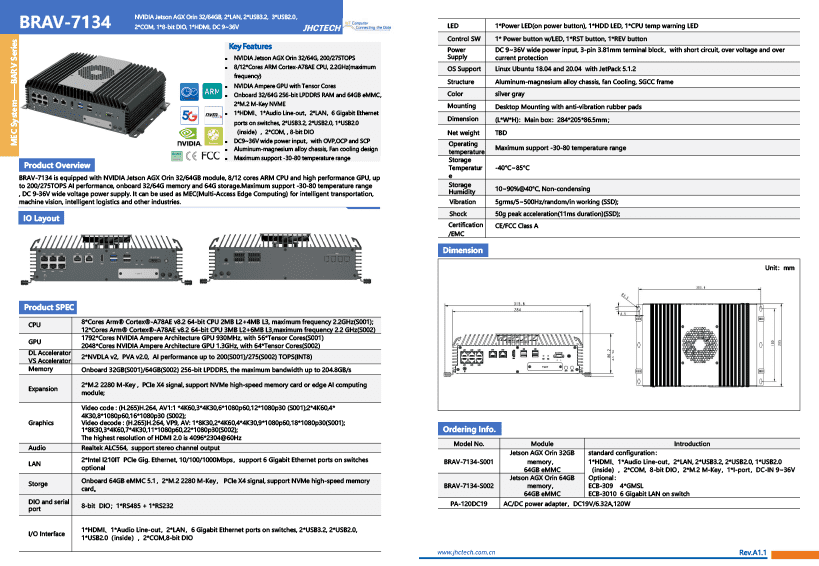

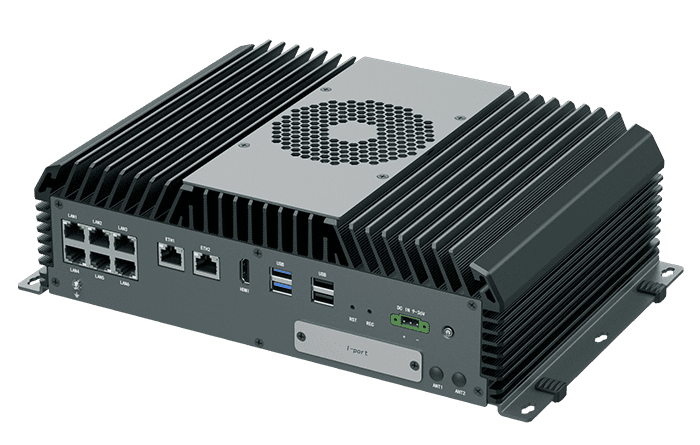

BRAV-7134
NVIDIA Jetson AGX Orin 32/64GB
BRAV-7134 is equipped with NVIDIA Jetson AGX Orin 32/64GB module, 8/12 cores ARM CPU and high performance GPU, up to 200/275TOPS AI performance, onboard 32/64G memory and 64G storage. Maximum support -30-80 temperature range, DC 9-36V wide voltage power supply. It can be used as MEC (Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.

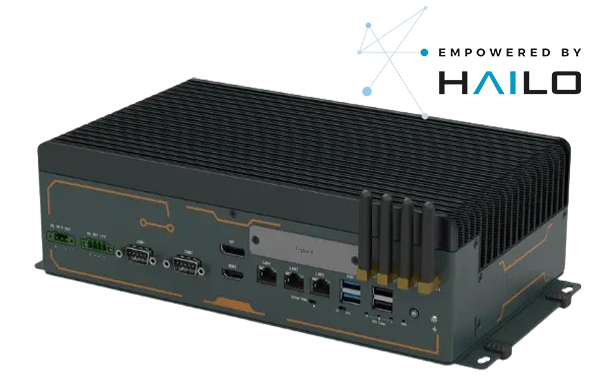

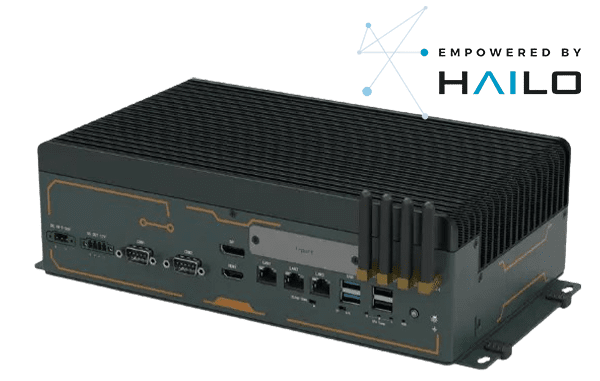

BRAV-7220
Intel® Tiger lake U Soc CPU
BRAV-7220 is an AI MEC computing system with high energy efficiency ratio, powered by Intel® Tiger lake UP3 ULT SoC series CPU. 2.5G network port and 5G NR wireless network, support dual M.2 edge AI calculation module, no fan heat dissipation, DC 9-36V wide power input，can realize multilateral access, can be used as MEC edge computing for intelligent transportation and machine vision detection.

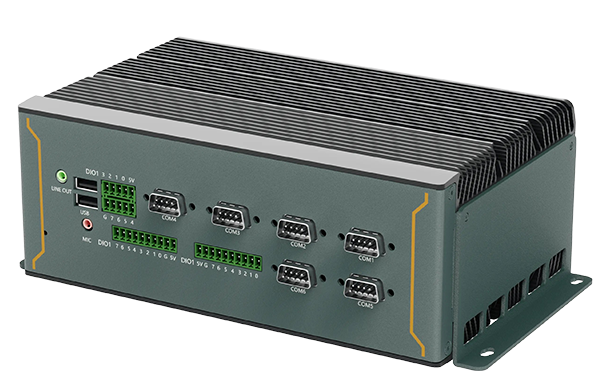

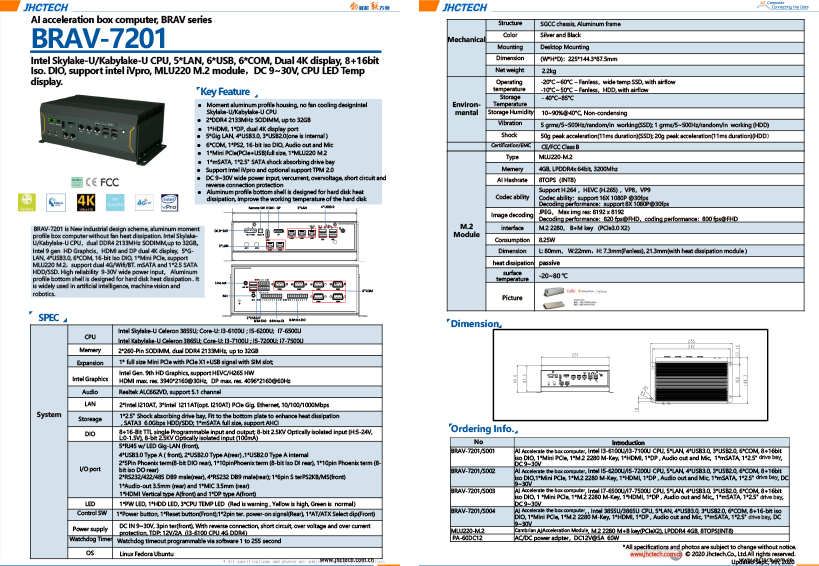

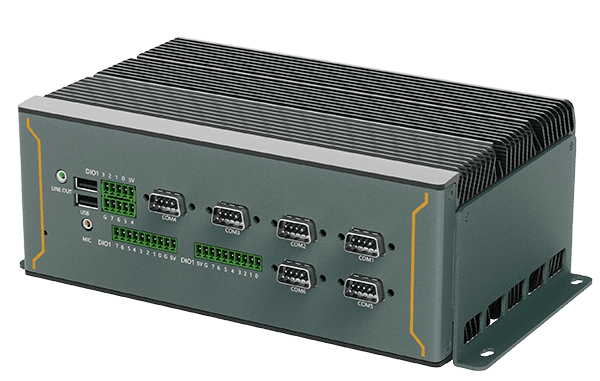

BRAV-7201
Intel® Skylake-S/Kabylake-S Core
BRAV-7201 is a new industrial design scheme, aluminum moment profile box computer without fan heat dissipation. Intel Skylake- U/Kabylake-U CPU, dual DDR4 2133MHz SODIMM, up to 32GB. Intel 9 gen HD Graphics, HDMI and DP dual 4K display, 5*G- LAN, 4*USB3.0, 6*COM, 16-bit Iso DIO, 1*Mini PCIe, support MLU220 M.2, support dual 4G/Wifi/BT. mSATA and 1*2.5 SATA HDD/SSD. High-reliability 9-30V wide power input， Aluminum profile bottom shell is designed for hard disk heat dissipation. It is widely used in artificial intelligence, machine vision and robotics.

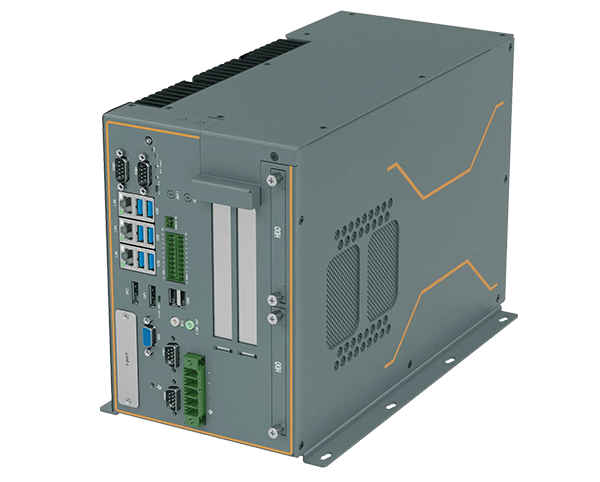

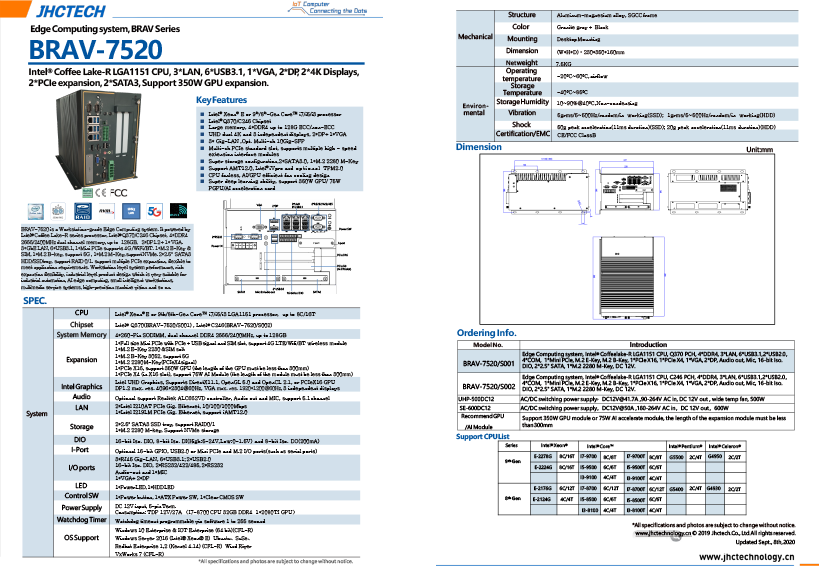

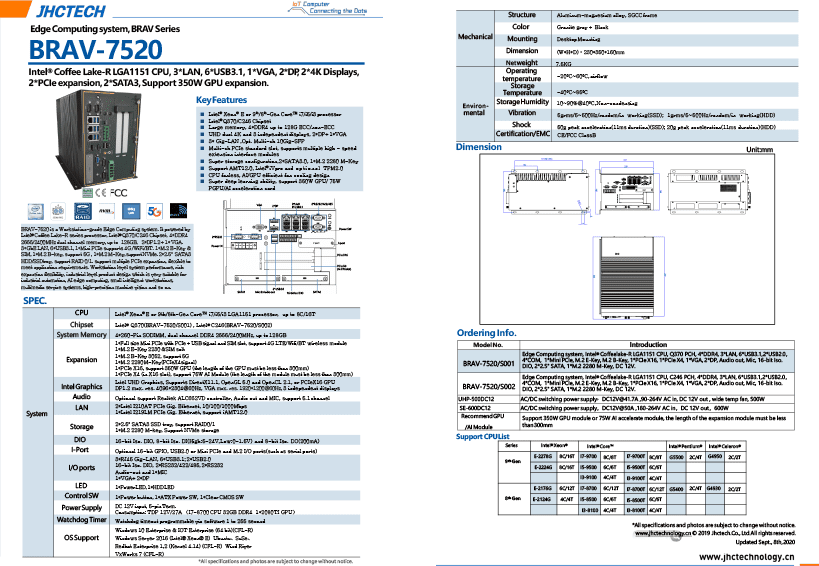

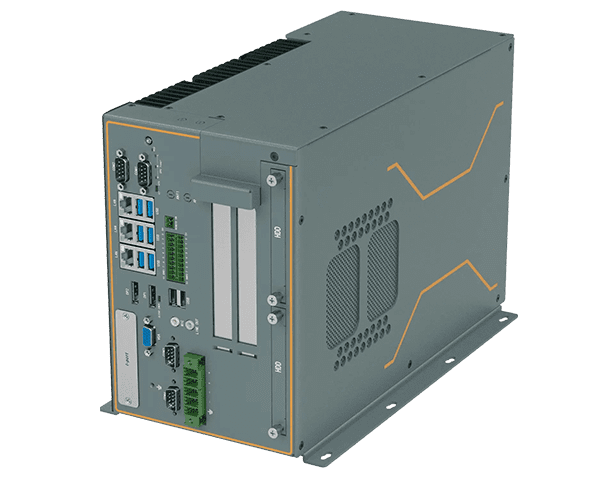

BRAV-7520
Intel® Xeon® E or 9th/8th-Gen Core™
BRAV-7520 is a Workstation-grade Edge Computing system. It is powered by Intel® CoffeeLake-R series processor, Intel® Q370/C246 Chipset, 4*DDR4 2666/2400MHz dual channel memory, up to 128GB，2*DP1.2+1*VGA. 3*GbE LAN, 6*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT. 1*M.2 E-Key & SIM, 1*M..2 B-key, support 5G , 1*M.2M-Key, supportNVMe.2*2.5″ SATA3 HDD/SSD tray, support RAID 0/1. support multiple PCIe expansion, flexible to meet application requirements.

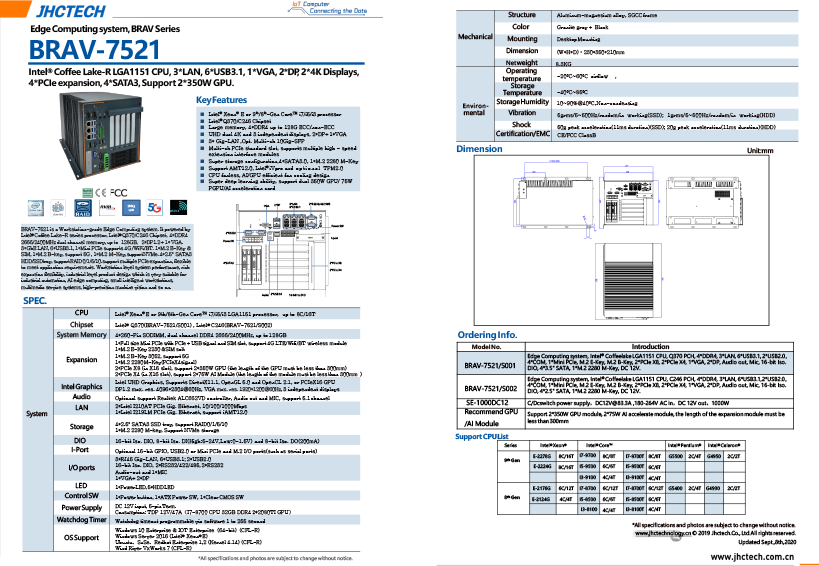

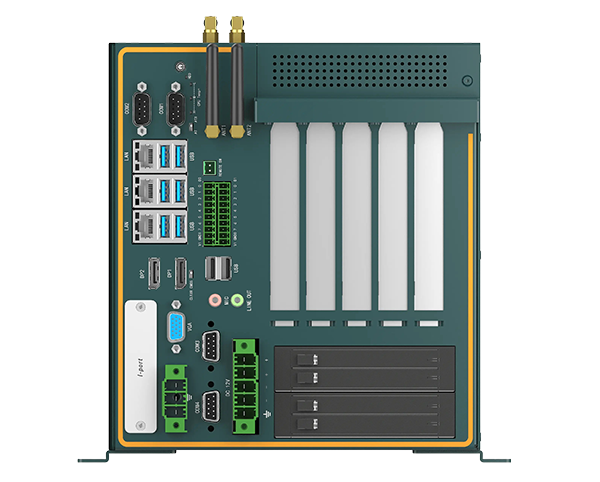

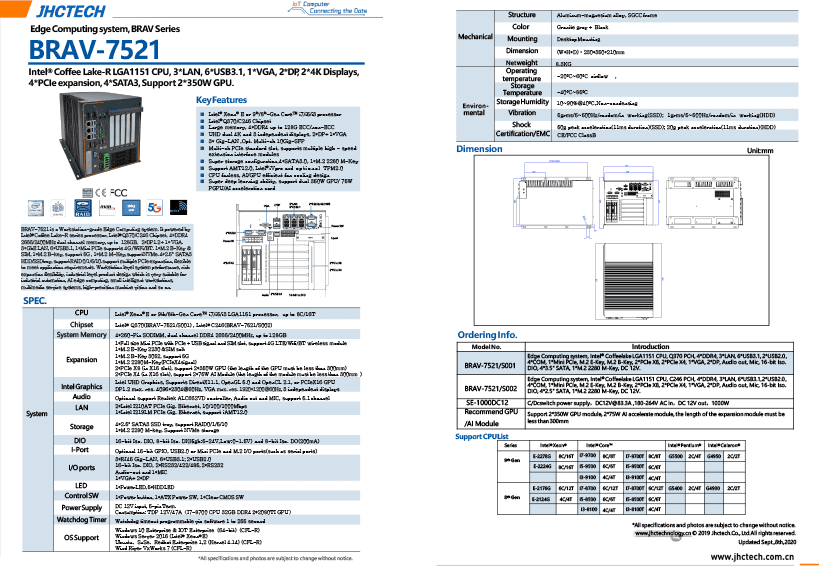

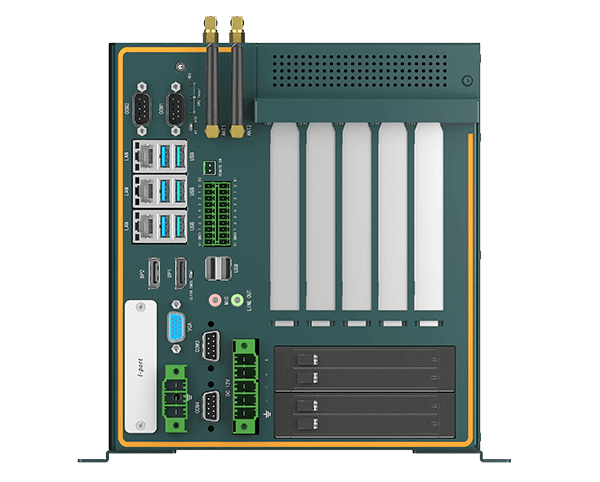

BRAV-7521
Intel® Xeon® E or 9th/8th-Gen Core™
BRAV-7521 is a Workstation-grade Edge Computing system. It is powered by Intel® Coffee Lake-R series processor, Intel® Q370/C246 Chipset, 4*DDR4 2666/2400MHzdualchannel memory, up to 128GB，2*DP1.2+1*VGA. 3*GbE LAN, 6*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT. 1*M.2 E-Key & SIM, 1*M.2 B-key, support 5G, 1*M.2 M-Key, support NVMe.4*2.5″ SATA3 HDD/SSD tray, support RAID 0/1/5/10. support multiple PCIe expansion, flexible to meet application requirements.

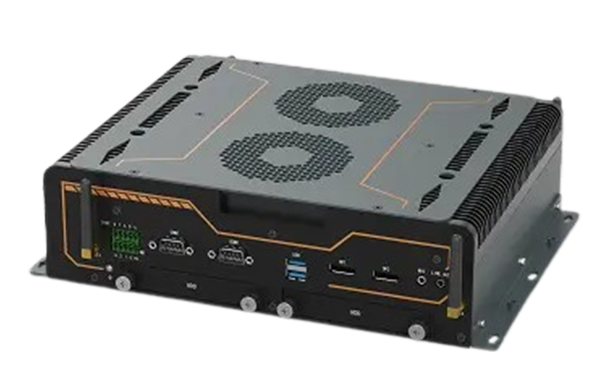

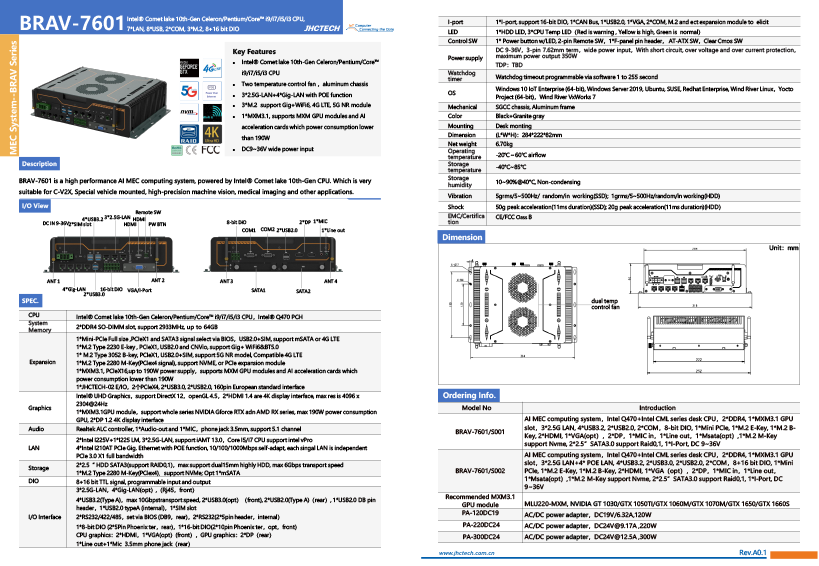

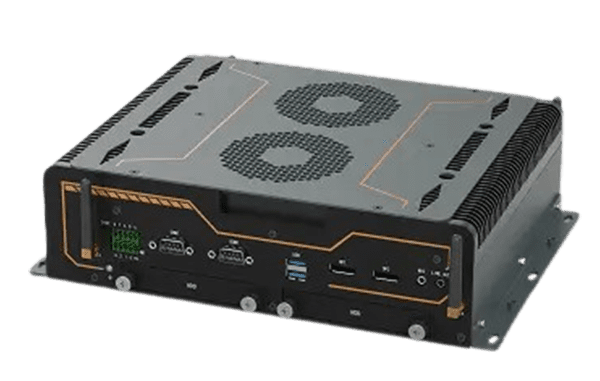

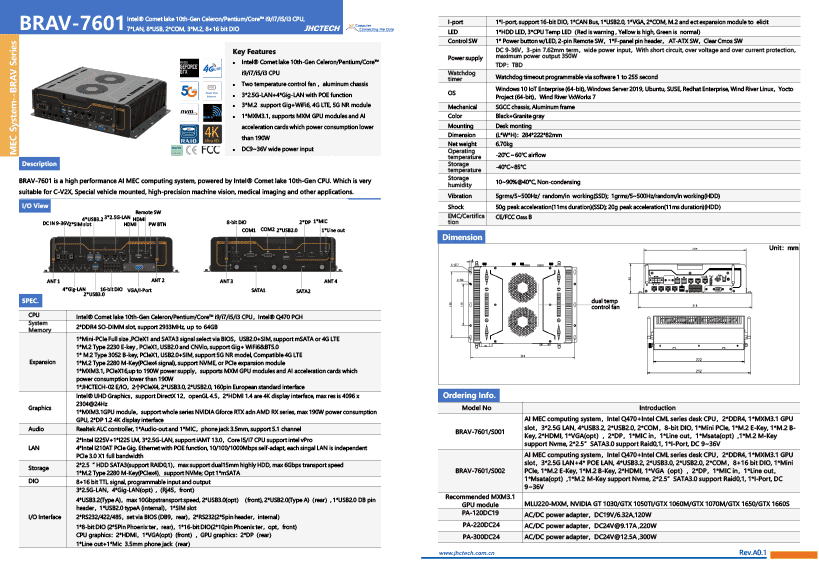

BRAV-7601
Intel® Comet lake 10th-Gen Celeron/Pentium/Core™
Intel® Comet lake 10th-Gen Celeron/Pentium/Core™ i9/i7/i5/i3 CPU, 7*LAN, 8*USB, 2*COM, 3*M.2, 8+16 bit DIO. BRAV-7601 is a high-performance AI MEC computing system powered by Intel® Comet lake 10th-Gen CPU. Which is very suitable for C-V2X, Special vehicle mounted, high-precision machine vision, medical imaging and other applications.

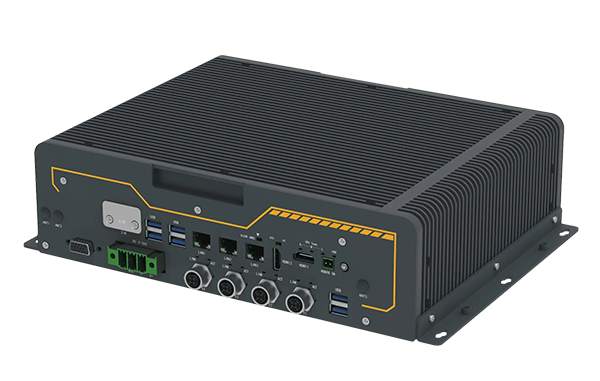

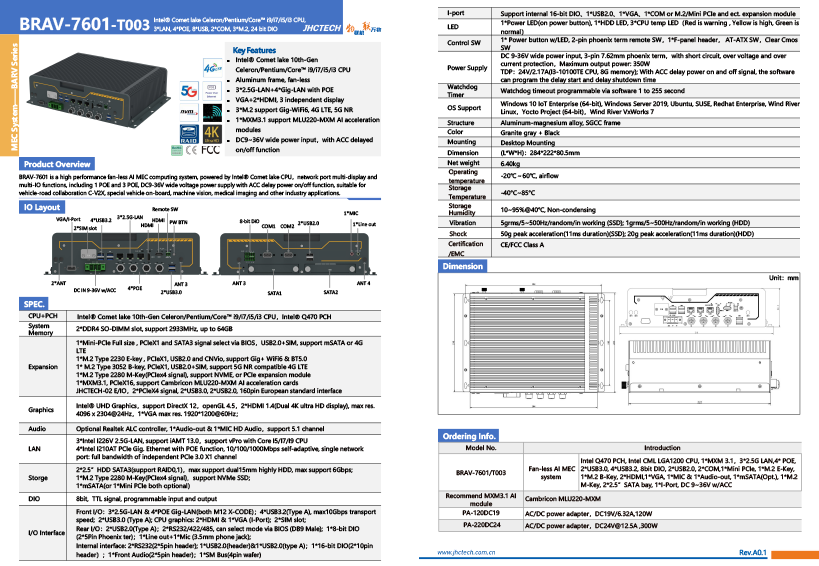

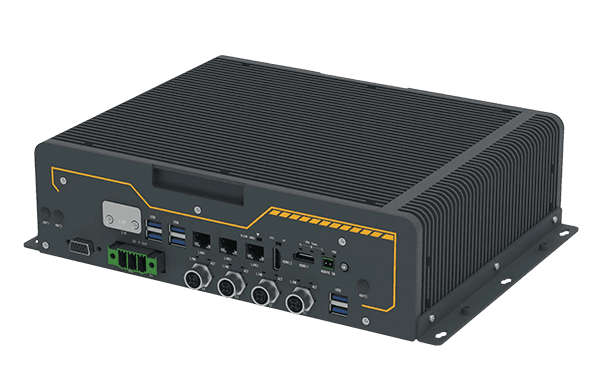

BRAV-7601-T003
Intel® Comet lake 10th-Gen Celeron/Pentium/Core™
BRAV-7601 is a high performance fan-less AI MEC computing system, powered by Intel® Comet lake CPU，network port multi-display and multi-IO functions, including 1 POE and 3 POE, DC9-36V wide voltage power supply with ACC delay power on/off function, suitable for vehicle-road collaboration C-V2X, special vehicle on-board, machine vision, medical imaging and other industry applications.

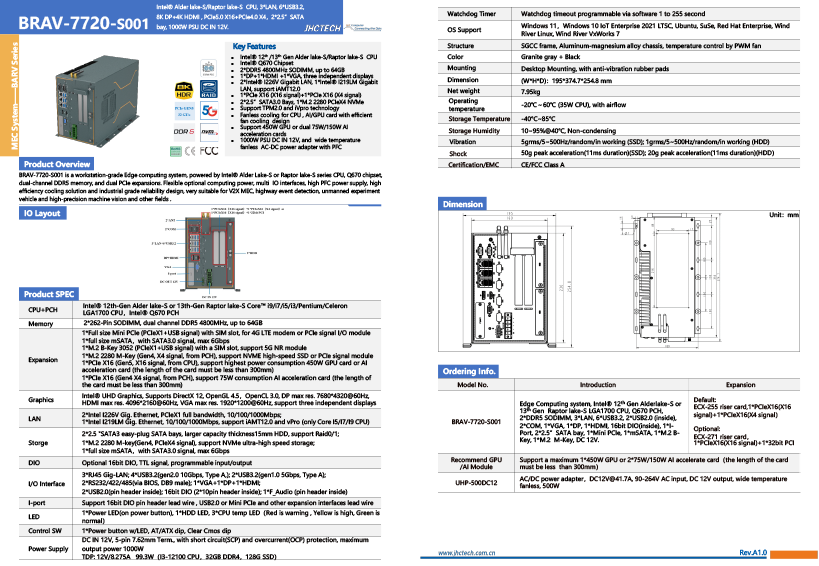

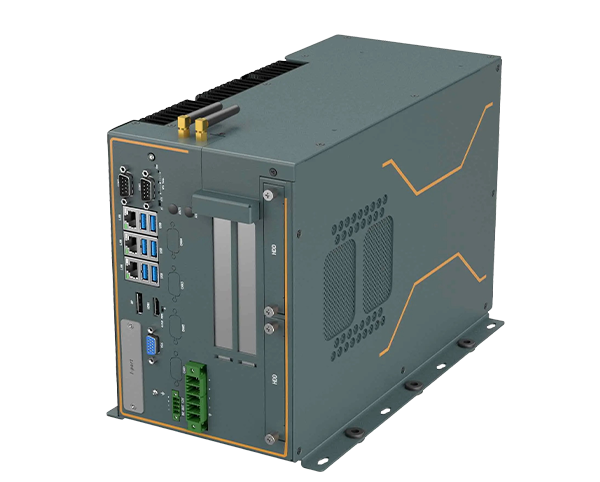

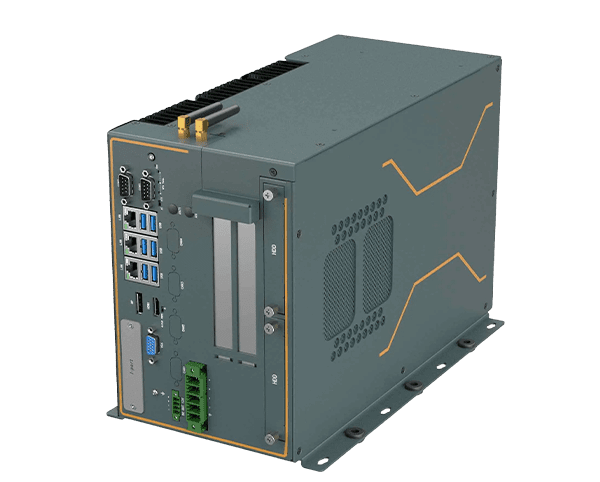

BRAV-7220-S001
Intel® 12th /13th Gen Alder lake-S/Raptor lake-S
BRAV-7720-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S or Raptor lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and dual PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields .

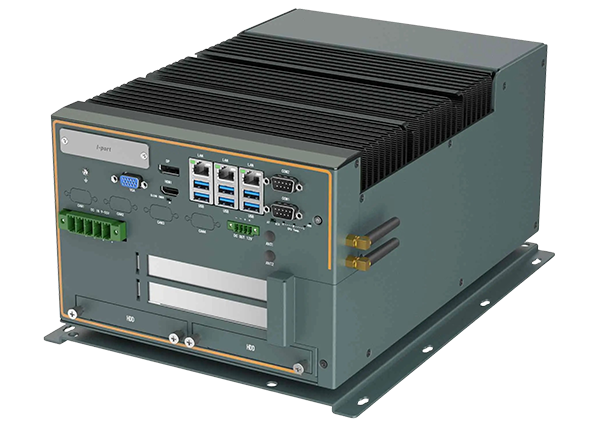

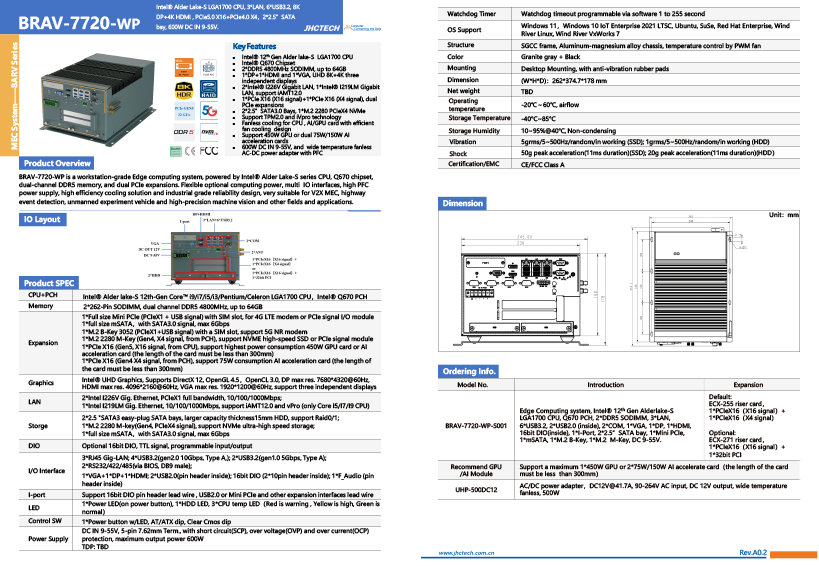

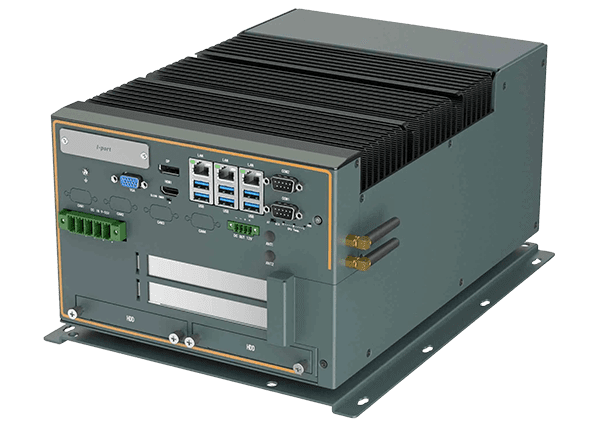

BRAV-7720-WP
Intel® 12th Gen Alder lake-S LGA1700
BRAV-7720-WP is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and dual PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields and applications.

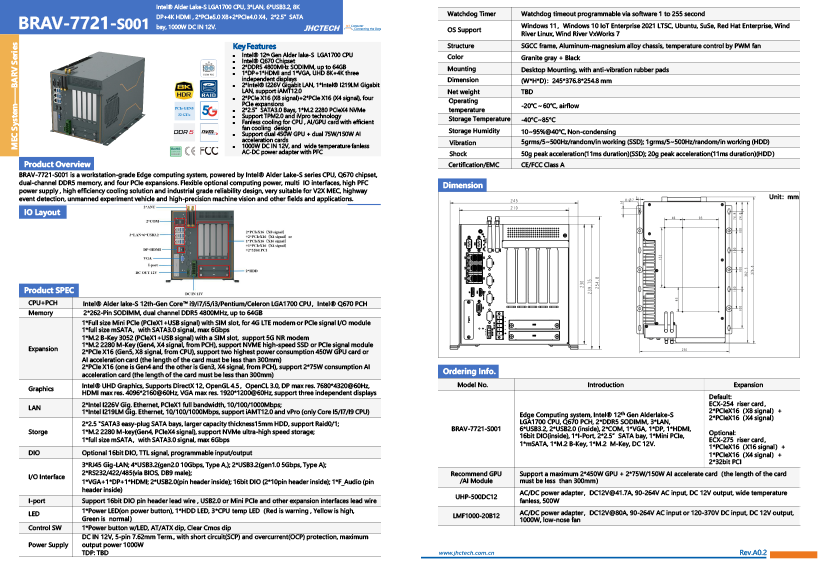

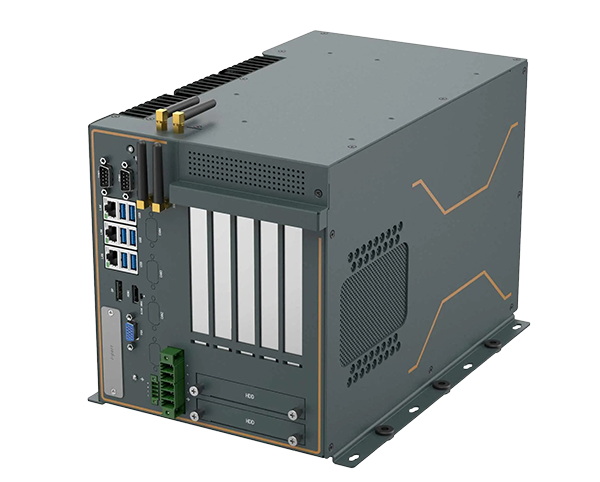

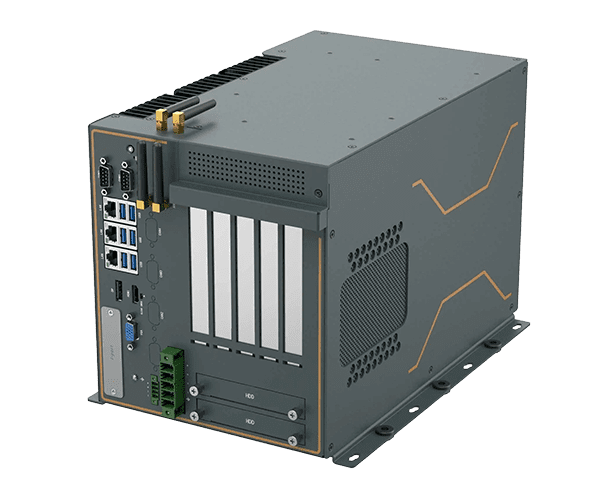

BRAV-7721-S001
Intel® 12th Gen Alder lake-S LGA1700
BRAV-7721-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and four PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply , high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields and applications.

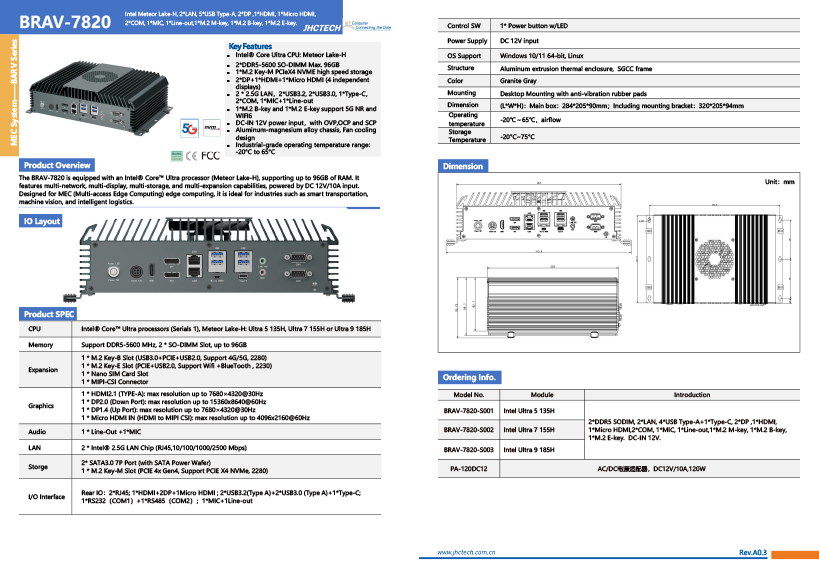

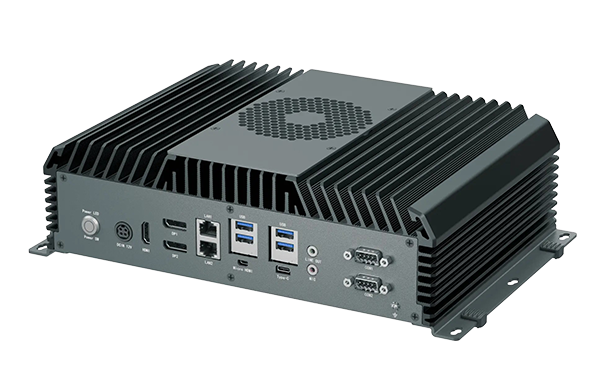

BRAV-7820
Intel® Core Ultra CPU: Meteor Lake-H
The BRAV-7820 is equipped with an Intel® Core™ Ultra processor (Meteor Lake-H), supporting up to 96GB of RAM. It features multi-network, multi-display, multi-storage, and multi-expansion capabilities, powered by DC 12V/10A input. Designed for MEC (Multi-access Edge Computing) edge computing, it is ideal for industries such as smart transportation, machine vision, and intelligent logistics.
