NEOUSYS

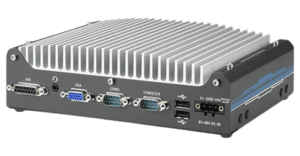

NUVO-9531
Intel® 12th -Gen Core™ i9/ i7/ i5/ i3 Compact Fanless Computer with 4x 2.5GbE, 4x USB3.2 and 1x Hot-swappable HDD Tray
Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel® 12th -Gen Alder Lake platform.
Industrial computer systems play a vital role in various sectors, from manufacturing to logistics, automation, and robotics. One standout model within the Nuvo-9000 Series that has been turning heads in the industry is the Nuvo-9531, a compact fanless embedded computer that packs a punch. Let’s dive into the specifications, performance, and applications of the Neousys Nuvo-9531.
- 212 x 165 x 63 mm low-profile design
- Intel® 12th-Gen Core™ 35W/ 65W LGA1700 CPU
- Rugged, -25°C to 60°C fanless operation
- 4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
- M.2 2280 Gen4x4 NVMe and 1x hot-swappable HDD tray for storage
- 4-CH isolated DI and 4-CH isolated DO
- VGA + DP dual display outputs
- Optional ignition power control
Compact and Robust Design
The Nuvo-9531 is designed with a focus on compactness and robustness. Its low-profile design, measuring 212 x 165 x 63 mm, makes it one of the most compact fanless embedded computers on the market. This size makes it versatile for placement, even in restricted spaces, such as in robotic arms and Automated Mobile Robots (AMRs). Despite its compact size, the Nuvo-9531 is also built for rugged applications, with a fanless operation that can withstand temperatures ranging from -25°C to 60°C.
High Performance Leveraging Intel Technology
The Nuvo-9531 is built on the Intel 13th/12th-Gen platform, offering superior performance even in its small size. The computer uses advanced Intel 7 process technology, with the Intel 13th Gen processors boasting up to 24 cores and 32 threads. This configuration allows the embedded computer to deliver up to twice the performance compared to previous Intel 10th or 11th Gen platforms.
Rich I/O Functions for Versatile Connectivity
The Nuvo-9531 comes equipped with an array of I/O functions designed to cater to a wide range of connectivity needs. It features four 2.5GbE with optional Power over Ethernet (PoE+) PSE and four USB3.2 Gen1 ports, offering multiple camera connectivity for machine vision and surveillance applications. In addition, the system includes a Gen4 x4 M.2 NVMe slot, supporting the latest NVMe Solid State Drives (SSDs) with read/write speeds of up to 7000 MB/s.
Storage and Accessibility
Storage is a critical aspect of any industrial computer, and the Nuvo-9531 does not disappoint in this regard. It includes a hot-swappable Hard Disk Drive (HDD) tray, allowing for the storage drive to be swapped without needing to turn off the system or dismantle the chassis. This feature ensures minimal disruption to operations even when a storage drive needs to be replaced or upgraded.
Nuvo 9531 Specifications
| System | |
| Processor | Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
| Chipset | Intel® H610E platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
| TPM | Supports dTPM 2.0 |
| I/O | |
| Ethernet | 4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for 4x2.5GbE ports 100 W total power budget |
| Video | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
| Serial | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Expansion | |
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Storage | |
| SATA | 1x hot-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD |
| M.2 NVME | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Power Supply | |
| Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input with optional ignition power control |
| Mechanical | |
| Dimensions | 212 mm (W) x 165 mm (D) x 63 mm (H) |
| Weight | 2.5kg |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature | with 35W CPU -25°C ~ 60°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
Order the Nuvo-9531
The Nuvo-9531 sets a new benchmark for compact, high-performance industrial computers. Its robust design, impressive performance capabilities, rich I/O functions, and tailored application-specific features make it an ideal choice for various industrial applications. Despite its compact size, it does not compromise on power, making it a reliable solution for industries where space is a premium but performance cannot be compromised.
This compact fanless embedded computer is a testament to the advancements in industrial computer design and technology, serving as a stellar example of how high performance can be achieved without compromising on size or robustness. With its rich array of features and capabilities, the Nuvo-9531 is indeed a powerhouse in the realm of industrial computers.
Nuvo 9531 Frequently Asked Questions
What are the dimensions of the Nuvo-9531?
The Nuvo-9531 measures just 212 x 165 x 63 mm, making it one of the most compact fanless computers on the market. This compact size makes it ideal for integration into constrained spaces such as robotic arms and AMRs.
What kind of I/O functions does the Nuvo-9531 offer?
The Nuvo-9531 offers a wealth of I/O functions. It includes four 2.5GbE ports, four USB3.2 Gen 1 ports, 8x DIO, 2x COM ports, and dual display outputs. These features provide plenty of connectivity for a wide range of devices and peripherals.
What kind of storage options does the Nuvo-9531 offer?
The Nuvo-9531 includes a Gen4 x4 M.2 NVMe slot that supports the latest NVMe SSDs, which can reach read/write speeds of up to 7000 MB/s. It also includes a hot-swappable HDD tray that allows you to replace the storage drive without having to turn off the system or disassemble the chassis.
Can the Nuvo-9531 connect wirelessly?
Yes, the Nuvo-9531 includes two mPCIe and one M.2 E key slots for installing WiFi or 5G/4G wireless communication modules.
Can I customize/configure the Nuvo-9531?
Of course. When you order from us, the Official U.S. Partner for Industrial Computing Solutions, we can configure your equipment to meet your specific needs. Call 888-255-5508 or fill out the form on this page to get started.
Nuvo 9531 Industrial Applications
Given its compact size, powerful performance, and rich I/O functions, the Nuvo-9531 is a valuable asset for a variety of industrial applications.
Here are just a couple examples:
