Intel® Celeron® J1900 Fanless Computer w/ Expansion Cassette
- Intel® Celeron® Bay Trail J1900 quad-core processor
- 1x PCI/PCIe expansion with compact size
- 1x USB 3.0, 3x USB 2.0, 4x Serial

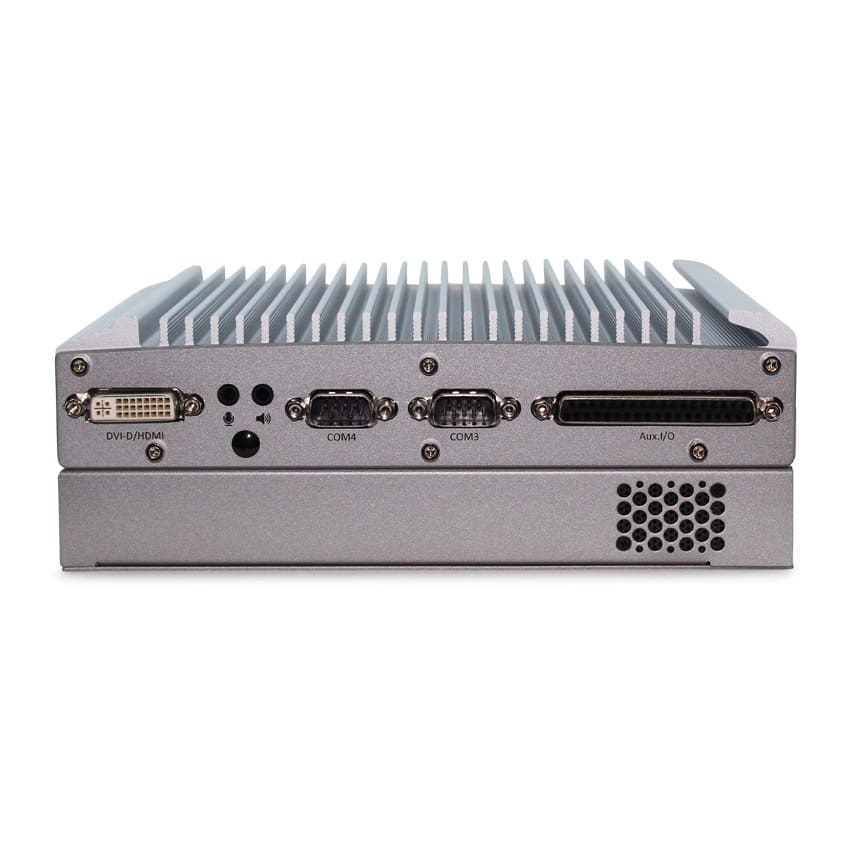

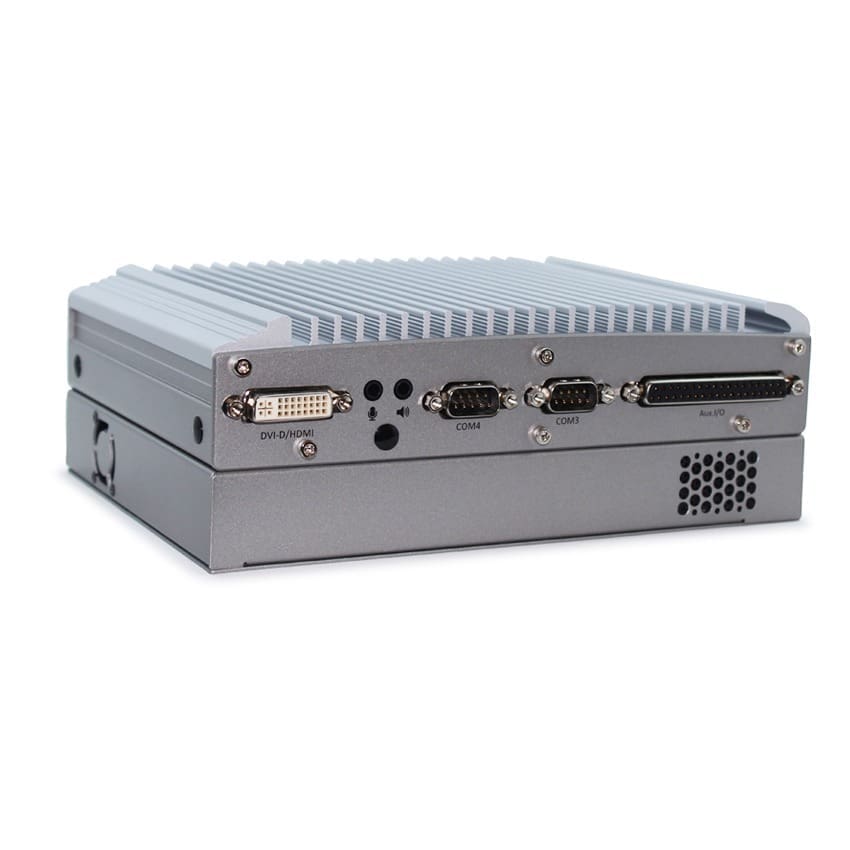

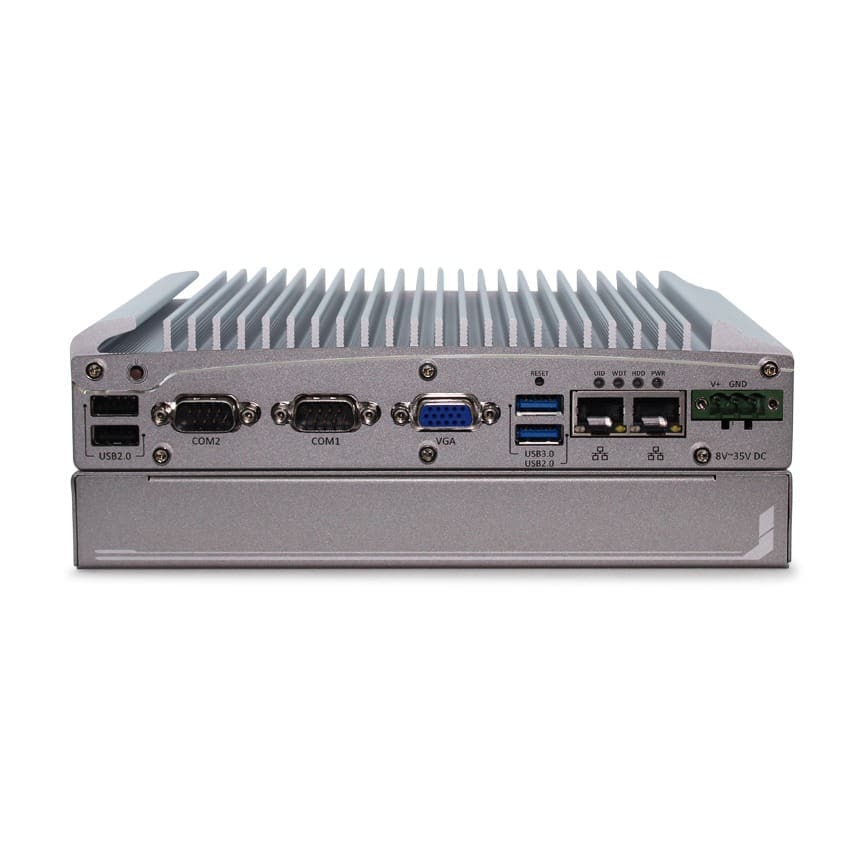

Nuvo-2500
Description
View the replacement: Nuvo-2600
Specifications
| System | |
| Processor | Intel® Celeron® Bay Trail J1900 (2.42 GHz, 2M) |
| Chipset | N/A |
| Graphics | Integrated Intel® HD Graphics |
| Memory | Up to 8GB SO-DIMM DDR3L |
| I/O | |
| Ethernet | 2x GbE |
| Video | 1x VGA (Max. 2560 x 1600) 1x DVI-I (Max. 2560 x 1600) |
| USB | 3x USB 2.0 1x USB 3.0 |
| Serial | 2x RS-232/422/485 2x RS-232 |
| Audio | 1x Audio Out 1x Mic In |
| Aux I/O | 1x DB-37 female connector 4x DI and 8x DO, 6x PWM, 1x encoder and 2x ADC are available as an option |
| Storage | |
| SATA | 1x Internal SATA for 2.5″ SSD/HDD |
| mSATA | 1x half-size mSATA |
| Expansion | |
| PCI Express | 1x PCIe x4 slot @ 1-lane PCIe 2.0 signal in Cassette (Nuvo-2500E) |
| PCI | 1x PCI slot in Cassette (Nuvo-2500P) |
| Mini PCIe | 1x full-size mini PCI Express socket with USIM socket |
| Power Supply | |
| Input | 8~35V DC |
| Adapter | 60W Power Adapter (optional) |
| Mechanical | |
| Dimensions | 8.07″ (W) x 5.75″ (D) x 2.99″ (H) |
| Weight | 5.07 lbs including SSD and RAM |
| Mounting | Wall Mount DIN-Rail Mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Certifications | CE/FCC Class A, according to EN 55022 & EN 55024 |
Additional information
| Processor | Quad-Core Intel® Celeron® J1900 |
|---|---|
| Operating System | Ubuntu 16.04 LTS, Windows 10 Pro (64-bit), Windows 7 Pro (32-bit), Windows 7 Pro (64-bit) |
| Mounting | Wallmount |
