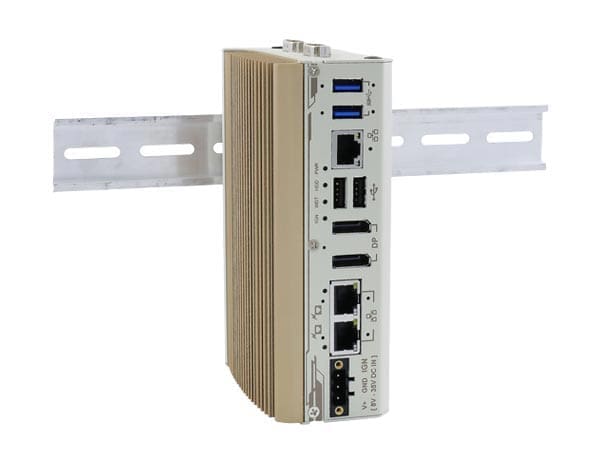

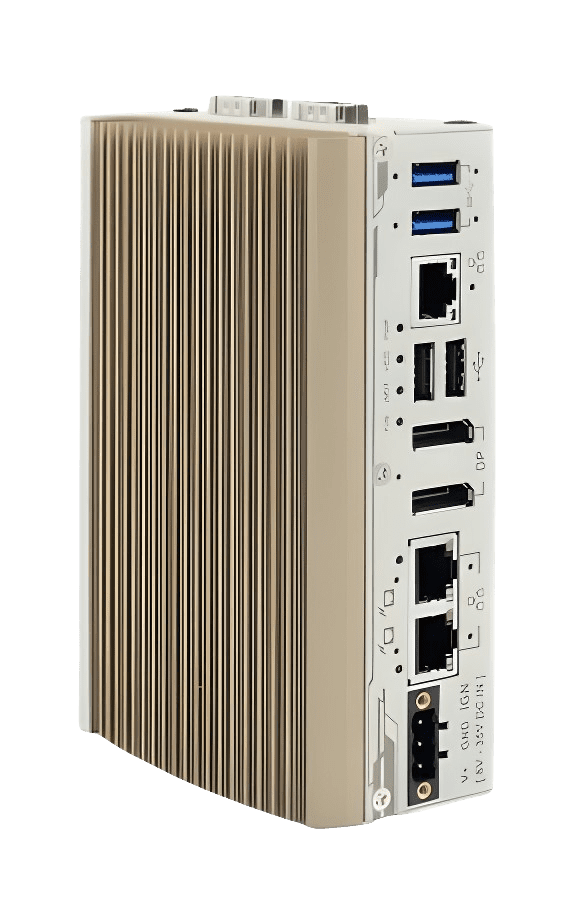

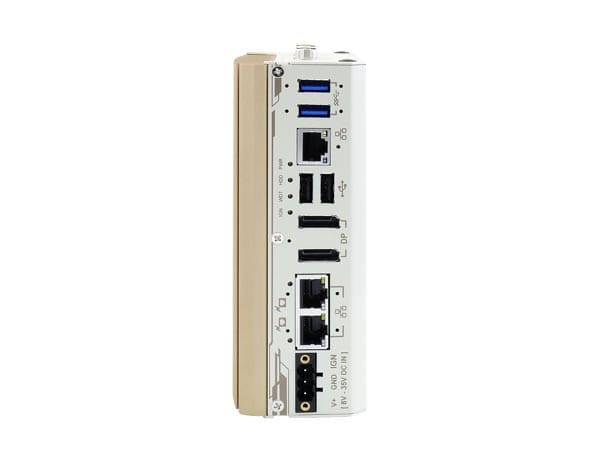

POC-400

DIN-Rail Atom x6425E Fanless Computer

  • Quade-Core Atom x6425E Processor
  • Dual DisplayPort outputs supporting 4096×2160 resolution @ 60Hz
  • 3x 2.5GBASE-T ethernet ports with optional IEEE 802.3at PoE+ capability
  • DIN-rail chassis with front panel I/O access
  • Wide -25°C to 70°C operating temp. and MIL-STD shock and vibration

Specifications

System
Processor Intel® Elkhart Lake Atom® x6425E (2.0/3.0 GHz, 1.5M)
Chipset N/A
Graphics Integrated Intel® UHD Graphics
Memory Up to 32GB SO-DIMM DDR4
Video 2x DisplayPort (Max. 4096 x 2160 @ 60Hz)
I/O
Ethernet 3x 2.5GBASE-T (Intel® I225)
PoE Optional IEEE 802.3at PoE+ on port #2 and #3
USB 2x USB 2.0
2x USB 3.1 (5 Gbps)/td>
Serial 1x software-programmable RS-232/422/485 (COM1)
3x 3-wire RS-232 (COM2/3/4)
DIO Optional 4-ch isolated digital input and 4-ch isolated digital output (POC-40-DIO)
Audio Optional 1x 3.5 mm jack for mic-in and speaker-out
Storage
M.2 1x M.2 2280 M key SATA interface
Expansion
M.2 E key 1x M.2 2230 E key socket for WiFi, Google TPU or Movidius VPU module
MezIO 1x MezIO™ expansion port for MezIO™ modules
Power Supply
Input 8-35V DC with 3-pin terminal block connector
Adapter 60W Power Adapter (optional)
Mechanical
Dimensions 2.20″ (W) x 4.25″ (D) x 6.02″ (H)
56 mm (W) x 108 mm (D) x 153 mm (H)
Weight 2.12 lbs
0.96 kg
Mounting DIN-Rail Mount (standard)
Wall Mount (optional)
Environmental
Operating Temperature -25°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Humidity 10% ~ 90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certifications CE/FCC Class A, according to EN 55032 & EN 55024
Processor

Quad-Core Intel® Celeron® J1900
Operating System

Ubuntu 16.04 LTS, Windows 10 Pro (64-bit), Windows 7 Pro (32-bit), Windows 7 Pro (64-bit)
Mounting

Wallmount
