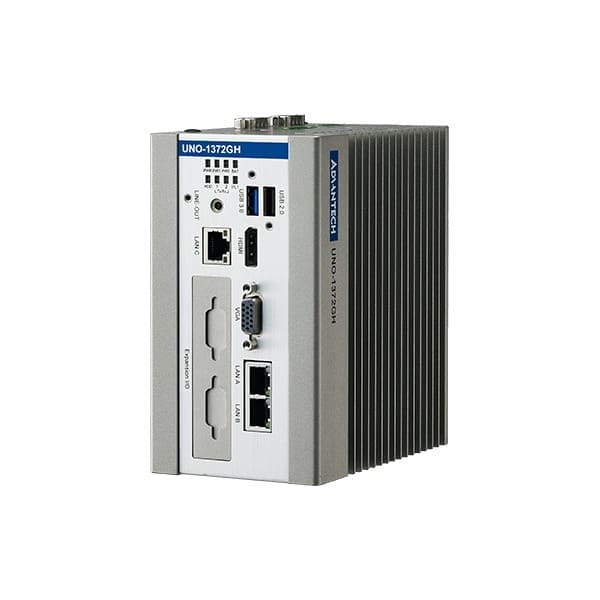

UNO-1372G-H

Class I, Division 2 DIN-Rail Mount Intel® Atom E3845 Fanless System

  • Quad-Core Intel® Bay Trailâ„¢ E3845
  • 3x LAN, 3x USB, 2x Serial
  • Multi Display (1x VGA, 1x HDMI)
  • Compact chassis with Mini-PCIe expansion
  • DIN Rail or Wall Mountable

Specifications

SYSTEM
Processor Intel Atom E3845 (1.91 GHz, 2M) – 4 Cores
Chipset SoC
Memory Up to 8GB SD-DDR3L
VIDEO
Integrated Graphics Intel® HD Graphics
VGA 1x VGA
HDMI 1x HDMI
Multi-Display Support Y
I/O
Ethernet 3x GbE
USB 2x USB 2.0
1x USB 3.0
Serial 1x RS-232
1x RS-232/422/485
Audio 1x Out
EXPANSION
Mini PCIe 2x Mini PCIe
STORAGE
SATA 1x SATA for Internal 2.5″ SSD/HDD
POWER SUPPLY
Input 9~36V DC with 4-pin power connector
Adapter 60W power adapter
MECHANICAL
Dimensions 3.35″ x 5.47″ x 5.98″
85 mm x 139 mm x 152 mm
Weight 3.53 lbs
1.6kg
Mounting Wall
DIN
ENVIRONMENTAL
Operating Temperature -20°C ~ 60°C with SSD
Storage Temperature -40°C ~ 85°C
Humidity 95% RH @ 40 C, non-condensing
Vibration 5 Grms
Shock 50 Grms
Certifications CE, FCC, CCC, BSMI, UL, IP40
OPERATING SYSTEM
OS Support Win7Pro, Win7ES, Win10Pro, Win10IoT, Linux
Processor

Quad-Core Intel® Atom™ E3845

Mounting

DIN Rail
