DV-1000

9/8th Gen. Intel® Core™ Series High Performance and Essential Rugged Embedded Computer

DV1000

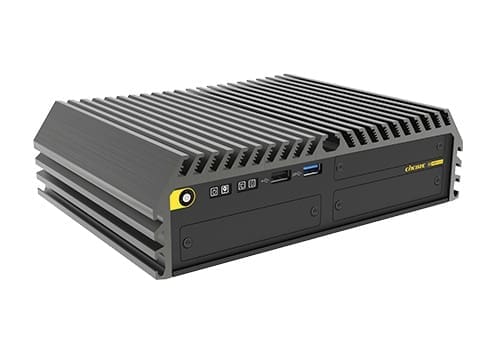

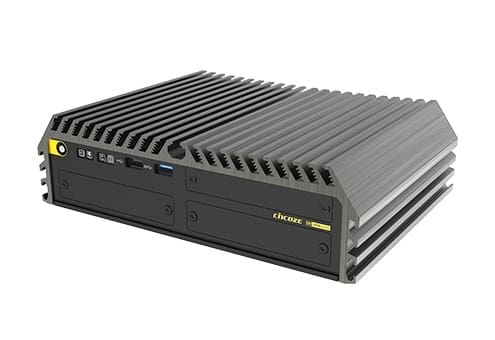

Cincoze DV-1000, High-Performance Simplified

  • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
  • Compact size (224 x 162 x 64 mm)
  • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
  • 1 x M.2 2230 key E for Intel® CNVi/wireless module
  • 2 x Full-size Mini PCIe sockets for module expansion
  • Optional CMI/MEC modules for I/O expansion
  • Wide operating temperature: -40°C to 70°C
  • Military standard (MIL-STD-810G) shock & vibration proof
  • Railway EMC standard EN50155 (EN 50121-3-2 only) certified

Strong Computing Power

A 9/8th Generation Intel CoreTM i7/i5/i3 (Coffee Lake-R S series) processor and Intel® H310 chipset power the DV-1000, which can accommodate up to 32 GB of DDR4 2666 MHz memory. Plenty of power is available from the DV-1000 for demanding multitasking workloads and programs.

Compact Size

The DV-1000 is a little computer with outstanding computational power that has a footprint that is only slightly larger than one sheet of A4 paper. The DV-1000’s diminutive size makes it simple to put almost anywhere you can think of, especially in industrial settings with limited space, like a small cabinet in a factory.

Expandable Extra I/O

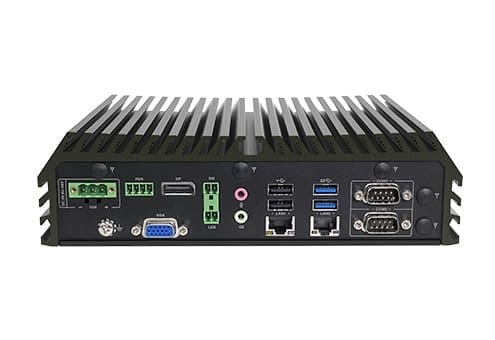

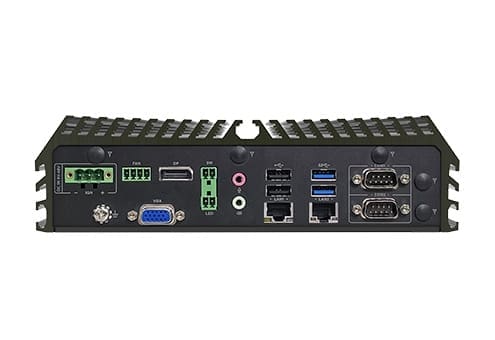

DV-1000 has the most frequently used I/O (LAN, USB, COM ports), analog and digital displays (VGA and DP), and storage options (SATA HDD/SSD, mSATA, or NVMe) sufficient for most industrial applications. For adding extra I/O or functions Cincoze offers proprietary Combined Multiple I/O (CMI) modules, Control Function Module (CFM), and also Mini-PCIe Expansion Card Module (MEC). The CMI modules support HDMI, DisplayPort, COM and DIO, MEC modules support GbE LAN and USB expansion, and CFM modules have IGN function.

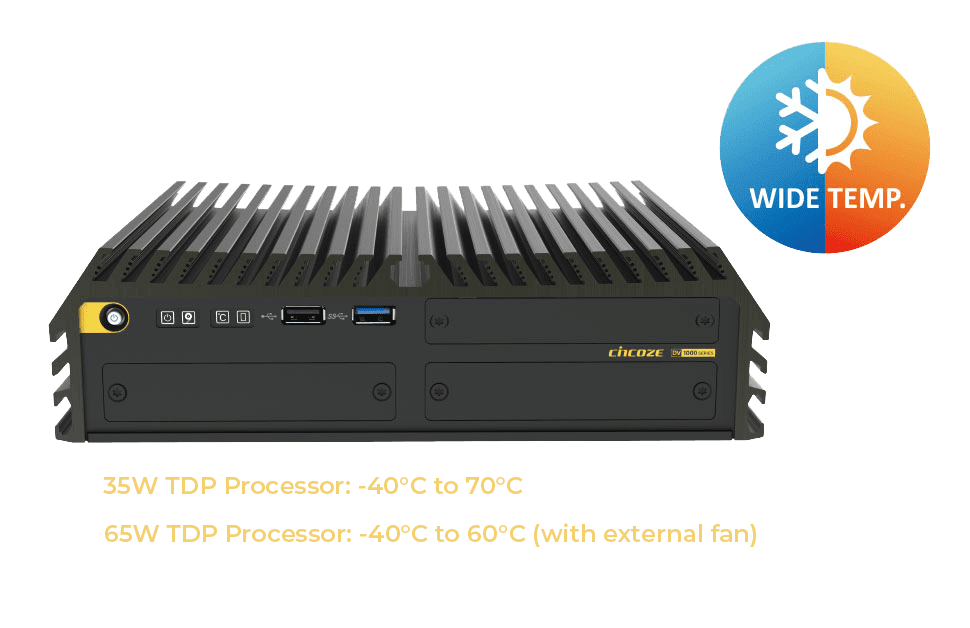

Reliable Cooling & Wide Operating Temperature

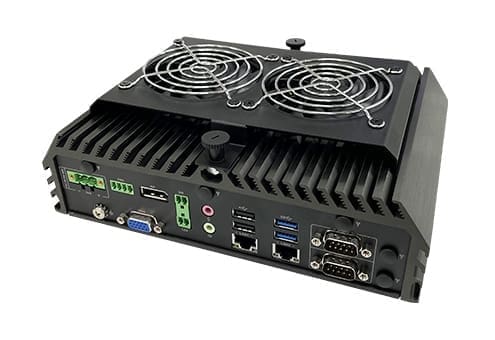

The DV-1000, despite having a compact form factor, has a great thermal design that allows it to operate at a wide range of temperatures, from -40°C to 70°C, using just passive cooling. In order to assure continuous operation in situations when there is a need for processing power or higher temperature operations, an external fan is offered as an active cooling option.

Cincoze DV-1000 Specifications

System
Processor Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
• Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W)
• Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W)
• Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W)
Memory 1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC)
Graphics Integrated Intel® UHD Graphics 620
Maximum Display Output Supports Triple Independent Display
BIOS AMI BIOS
I/O
LAN • 2x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 2x 10 Gbps USB 3.2 Gen2, Type A
• 2x 5 Gbps USB 3.2 Gen1, Type A
• 2x 480 Mbps USB 2.0, Type A
PS/2 1x PS/2, 6 Pin Mini-DIN Female Connector
Expansion
Mini PCI Express 2x Full-size Mini-PCIe Socket
SIM Socket 2x SIM Socket
CMI (Combined Multiple I/O) Interface • 1x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Storage
SSD/HDD 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 )
mSATA 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAID Support RAID 0/1
Power Supply
Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Total Power Budget 120W
Mechanical
Dimensions 203 x 142 x 66.8 mm
Weight 1.74kg
Mounting Wall / Side / DIN-RAIL / VESA Mount
Environmental
Operating Temperature • 15W CPU: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

• 15W CPU + 61.6W PoE + FAN: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* 4 Port PoE Full-load, IEEE 802.3af Class3(15.4 Watt)
* With extended temperature peripherals; Ambient with air flow
Storage Temperature -40°C ~ 85°C
Humidity 95%RH @ 70°C (non-Condensing)
Vibration MIL-STD-810G
Shock MIL-STD-810G
DV1000 Intel 9th Gen

Configure & Create a Quote:

Name(Required)
Buy DV-1000

Order the DV-1000

The fanless and tough DV-1000 embedded computer with a 9/8th Gen Intel CoreTM processor is designed for edge computing applications. Enterprises can act immediately on real-time data thanks to the high-performance DV-1000, which analyses data and makes choices in real time at the edge. The computer combines high-performance computing and industrial durability in a small embedded computer, enabling mission-critical and space-constrained applications in machine vision, manufacturing, railway infotainment, and smart city applications to operate reliably for extended periods of time.

2023 Product of the Year

Industry Certifications

The DV-1000 has been tested to meet a range of industry standards, including MIL-STD-810G to ensure reliable operation under harsh shock and vibration, and EMC compliance EN50155 (EN 50121-3-2 only) for rolling stock deployments.
