Nuvo-11000 Series

Nuvo-11000 series is Neousys’ flagship rugged embedded computer built on the Intel® Core™ Ultra 200S series platform delivering nearly 120% the performance while consuming only 80% of the power. Find your perfect Nuvo-11000 configuration here.

Introduction

Find Your Nuvo-11000 Model

Performance & Power

Applications

Nuvo-9000 vs. Nuvo-11000

MezIO Expansion

Get A Quote

FAQs

Product lifecycle
Nuvo-7000 Series
Mature
Nuvo-7000 Series
8th/9th-Gen Core™
Est. production through 2030
Nuvo-9000 Series
Active
Nuvo-9000 Series
12th–14th-Gen Core™
Est. production through 2035
You are here
Nuvo-11000 Series
Latest
Nuvo-11000 Series
Core™ Ultra 200S
Est. production through 2040

Nuvo-11000 series is Neousys’ flagship rugged embedded computer built on the Intel® Core™ Ultra 200S series platform. Powered by TSMC’s advanced 3nm photolithography, the latest Core™ Ultra 200S processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.

Nuvo-11000 series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.

For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO® interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements. The advanced Intel® Core™ Ultra 200S processors also bring better energy efficiency to the Nuvo-11000 platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combing a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.

Nuvo-11006LP

Nuvo-11006E

Understanding the Nuvo-11000 Naming Convention

Nuvo-11006

The platform

Intel® Core™ Ultra 200S, 24 cores, 36 TOPS NPU, DDR5-6400, PCIe Gen5, and six Ethernet ports.

E  or  LP

The chassis

E adds a single-slot PCIe cassette for one add-in card. LP is the low-profile chassis with a hot-swap front drive bay instead.

-PoE  /  -PoE-10G

The options

-PoE turns four of the six Ethernet ports into 802.3at PoE+, leaving two standard. -PoE-10G adds a 10GBASE-T port on top — 10GbE is only offered alongside PoE+.

Select the chassis and network option you need to find your model number:

1. Chassis
2. Network options

Your part number:

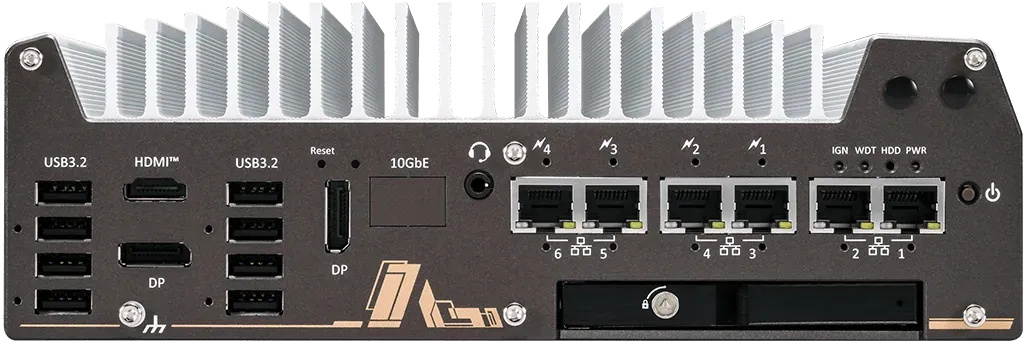

Nuvo-11006LP

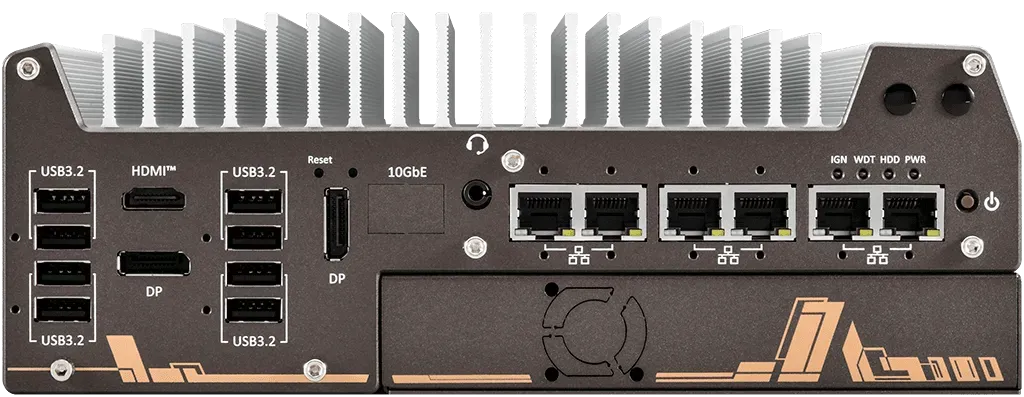

Six Ethernet ports, plus a single-slot PCIe cassette for one add-in card.

Starting at $1,604 Barebones. Memory and storage quoted at current cost.
Quote the Nuvo-11000E →

Intel® Core™ Ultra 200S (Arrow Lake) · 3 nm

Nuvo-11000: More performance on less power

Up to 24 cores and 24 threads on TSMC's 3 nm process, in a 35 W or 65 W LGA1851 socket. For anyone running a fleet of these, the power figure usually matters more than the core count.

120% of the previous generation's performance
80% of the previous generation's power draw
36 TOPS

Integrated NPU

This is the AI acceleration in the Nuvo-11000 — the expansion cassette is non-GPU, so there's no discrete card option. 36 TOPS covers most classification and detection work. If you need a GPU, look at the Nuvo-11588 on the same platform.

11,000+ MB/s

PCIe Gen5 NVMe

An M.2 2280 Gen5 x4 slot for read and write speeds past 11,000 MB/s. The difference shows up when you're logging high-frame-rate camera data rather than in day-to-day use.

Up to 128 GB

DDR5-6400 memory

Two SODIMM slots for non-ECC DDR5-6400. We price memory at current market cost when we build your quote rather than posting a number that goes stale within weeks.

−25°C to 70°C

Fanless and shock rated

No fans, no filters, no scheduled cleaning — the chassis is the heatsink. Tested to MIL-STD-810H for shock and vibration, with screw-lock Ethernet connectors so nothing works loose on a moving machine.

8–48 V DC

Wide input power

Runs off a 24 V industrial supply or a 12/24 V vehicle system with no converter in between. Optional ignition control gives you a clean shutdown on key-off instead of a hard cut.

MezIO®

Expansion without a PCIe slot

Neousys' mezzanine interface adds CAN bus, ignition power control, extra COM ports or isolated DIO — without spending the cassette slot you may need for a card.

Also standard on all Nuvo-11000 models

  • Intel vPro — out-of-band remote management
  • RAID 0/1 — striped or mirrored storage
  • Isolated 8-CH DIO — 4 in, 4 out
  • Remote power switch header
  • Wall mount included, DIN rail optional
  • UL listing available as an option

Need a discrete GPU?

The same machine, with a GPU cassette: Nuvo-11160GC

No Nuvo-11000 takes a graphics card — the E's cassette is non-GPU. The Nuvo-11160GC is Neousys' answer: the same Core Ultra 200S platform, the same footprint, the same I/O and the same part-number scheme, in a taller chassis with a PCIe x16 cassette built for an NVIDIA RTX card.

Neousys Nuvo-11160GC rugged edge AI computer with 150 W NVIDIA RTX GPU support
Nuvo-11160GC front I/O panel showing Ethernet, USB and display ports
Nuvo-11160GC rear panel showing the GPU expansion cassette

240 × 225 × 111 mm · 3.89 kg · wall-mount standard

150 W NVIDIA® RTX™ card in a PCIe x16 Gen4 cassette. Maximum card size 178 × 128 mm, dual-slot.

What the GPU chassis changes

  • 111 mm tall — 21 mm more than the Nuvo-11000E, 32 mm more than the LP
  • −25 °C to 60 °C instead of 70 °C, and 50 °C if the CPU runs at 65 W TDP
  • Adds 2× 2.5″ SATA with RAID 0/1 and two mini-PCIe sockets for 4G/5G
  • Adds 4× serial ports — two RS-232/422/485 and two RS-232

Same suffixes as the Nuvo-11000

  • Nuvo-11160GC — six ports, standard
  • Nuvo-11160GC-PoE — four ports with PoE+
  • Nuvo-11160GC-PoE-10G — PoE+ and 10GBASE-T
Get a quote → Datasheet (PDF) →

We are the Neousys Outstanding Performance Partner of the Year

Four common applications for the Nuvo-11000 series

Multi-camera inspection

Four to six GigE cameras, powered over the same cable that carries the image. The PoE+ budget is the binding constraint here, not the processor — and a frame grabber needs somewhere to live.

Best option Nuvo-11006E-PoE $1,848 Four of the six ports deliver 802.3at PoE+, leaving two for uplink, plus one PCIe slot for the grabber. Step up to -PoE-10G at $1,975 if you're pushing aggregated images upstream.

On-device AI inference

Defect classification or object detection running locally, with no round trip to a server. The 36 TOPS NPU does this without an add-in card — so the cheapest chassis is usually the right one.

Best option Nuvo-11006LP $1,604 If your model needs a discrete GPU, no Nuvo-11000 will take one — look at the Nuvo-11588 instead. Send us the model and we'll tell you which side of that line you're on.

In-vehicle and mobile robotics

Mounted in a cab, an AGV or a service body, running off vehicle power. The 8–48 V input takes 12 or 24 V directly, and optional ignition control gives you a clean shutdown instead of a hard cut on every key-off.

Best option Nuvo-11006LP $1,604 79 mm tall, MIL-STD-810H rated, and the front drive pulls out at end of shift without opening the box. Tighter on space? The Nuvo-11531 is 63 mm.

Machine control and fieldbus

Talking to PLCs, drives and sensors inside a control cabinet, usually on a DIN rail. Isolated DIO is on board, but a fieldbus or motion card needs a slot — and nothing in the cabinet should have a fan to clean.

Best option Nuvo-11006E $1,673 One PCIe slot for the fieldbus or motion card, 8-channel isolated DIO on board, DIN-rail mount available. Drop to the LP at $1,604 if you don't need the slot.

None of these quite match? Most of what we ship is a variation on one of the four. Tell us the cameras, the cards and where it's mounted, and we'll spec it.

Get a quote →

A comparison: Nuvo-9000 → Nuvo-11000

What's the difference between the Nuvo-9000 Series and the Nuvo-11000 Series?

Specification differences between the Neousys Nuvo-9000 series and the Nuvo-11000 series
Nuvo-9000Nuvo-11000
ProcessorIntel® Core™ 12th/13th/14th-Gen, LGA1700, Intel 7 processIntel® Core™ Ultra 200S, LGA1851, TSMC 3 nm process
New socket
AI accelerationNone on-die — needs a GPU card in the cassetteIntegrated NPU, 36 TOPS
Biggest change
StorageM.2 Gen4 x4 NVMe, up to 7,000 MB/sM.2 Gen5 x4 NVMe, over 11,000 MB/s
~1.6× faster
MemoryDDR5-4800, two SODIMM slotsDDR5-6400, up to 128 GB
Faster
Discrete GPUSupported — the dual-slot Nuvo-9000DE cassette takes a discrete cardNot supported — the cassette is non-GPU
No GPU option
Cores / threadsUp to 24C / 32T on 13th/14th-GenUp to 24C / 24T
Fewer threads
Chassis optionsLP, E, DE, and P with a legacy PCI slotE and LP
Narrower range
EthernetUp to 5× 2.5GbE + 1× GbE, PoE+ optionSame, plus an optional 10GBASE-T port
Largely unchanged
Operating temp−25°C to 70°C fanless−25°C to 70°C fanless
Unchanged

When the Nuvo-9000 might be the better option:

  • You need a discrete GPU. No Nuvo-11000 takes one. The dual-slot Nuvo-9000DE does — and on the newer platform, so does the Nuvo-11588, which is smaller and cheaper than either. Worth comparing all three before you decide.
  • Heavily threaded workloads. A 13th or 14th-Gen Nuvo-9000 gives you 32 threads against the Nuvo-11000's 24. If your application scales with threads rather than clock speed or AI inference, the older platform can still win.
  • Legacy PCI cards. Only the Nuvo-9000P takes a conventional PCI card. If you're carrying forward a motion controller or frame grabber that isn't available in PCIe, the Nuvo-11000 has nowhere to put it.
  • An existing validated deployment. If you've already qualified a Nuvo-9000 image and you're adding units to a running line, matching the fleet is usually worth more than the performance delta.

MezIO® expansion

Add I/O without spending the PCIe slot

MezIO® is Neousys' mezzanine connector — a board-to-board interface inside the chassis that carries signals and power to a small add-on module. It's how you add serial ports, isolated I/O, extra Ethernet or ignition control without touching the expansion cassette, which matters most on the LP, where there isn't one.

Every Nuvo-11000 has one MezIO slot, so you pick a single module. If you need two of these functions at once, tell us and we'll work out whether one goes on a PCIe card instead.

MezIO modules compatible with the Nuvo-11000 series, by function and chassis
ModuleWhat it addsFits
Serial ports
MezIO-C180-504× RS-232/422/485 plus 4× RS-232E and LP
MezIO-C181-504× RS-232/422/485 plus 4× RS-422/485E and LP
Isolated digital I/O
MezIO-D33016-CH isolated DI and 16-CH isolated DO, on top of the 8 channels on boardE and LP
Ethernet
MezIO-G4P4× GbE with 802.3at PoE+ — takes a six-port system to tenE and LP
MezIO-G44× GbE, no PoEE and LP
USB
MezIO-U4-504× USB 3.1 portsE and LP
Ignition power control — chassis-specific
MezIO-V20-EP16-mode ignition power control for in-vehicle useE only
MezIO-V2016-mode ignition control plus a mini-PCIe socket (USB 2.0 only)LP only
MezIO-V2116-mode ignition control plus a mini-PCIe socket (USB 2.0 and PCIe)LP only

Ignition control depends on your chassis

This is the one MezIO choice the chassis decides for you. The E takes MezIO-V20-EP; the LP takes MezIO-V20 or V21, which also give you a mini-PCIe socket the E version doesn't. If ignition control is in your build, settle the chassis first.

Cabling isn't included

The serial modules break out over Cbl-S68M-8DB9M-50CM to eight DB-9 connectors. The DIO module uses Cbl-S68M-S68M-100CM, usually with a TB-10 terminal board. We'll put the right ones on your quote.

Not sure which module fits your build? Tell us the devices you need to connect and we'll pick it. MezIO datasheet (PDF) →

Get a quote →

Buying from Industrial PC, Inc.

The same hardware, from people you can actually reach

Neousys builds the Nuvo-11000. What you get from us is everything around it — the configuration, the testing, the warranty and a phone number that reaches an engineer in Indiana.

Official US distributor

Named Neousys' Outstanding Performance Partner of the Year, 2025. You're buying through the factory channel, not a reseller's reseller.

A real person answers

We've been doing this since 1996. Call during business hours and you'll get a US-based engineer, not a ticket number and a callback window.

Configured before it ships

We install your OS, drivers and third-party software, update the BIOS, and test the build in Carmel, Indiana. It boots into your application on arrival.

Three years of coverage

Our 3+1 warranty extends the standard term to three years. If something fails in year three, you're still talking to us.

Tell us what it has to do.
We'll tell you what to buy.

Send us the cameras, the cards, the mounting and the environment. We'll come back with a configuration, a price and an honest note if a cheaper model would do the same job.

Request a quote Talk to an engineer

Or call 888-255-5508

Common questions

Nuvo-11000 questions we get asked

Series-level questions. For power adapters, MezIO modules and configuration detail, see the individual product pages.

Which Nuvo-11000 model should I choose?

There are two chassis and they're $69 apart, so this is rarely a budget decision. Take the E if you need a PCIe slot for an add-in card. Take the LP if you'd rather have a hot-swap front drive bay and 11 mm less height.

Then pick your network options: standard, PoE+, or PoE+ with 10GbE. See all six part numbers ↑

What do “-PoE” and “-PoE-10G” mean in the part number?

They're the network options. No suffix means neither. -PoE turns four of the six Ethernet ports into 802.3at PoE+ sharing a 100 W budget, and leaves two standard ports for uplink. Those four are what power GigE cameras over the same cable that carries the image. -PoE-10G adds a 10GBASE-T port on top of that.

10GbE is only offered alongside PoE+, so there's no -10G part on its own. Build a part number ↑

Can the Nuvo-11000 run a discrete GPU?

No. The Nuvo-11000E's expansion cassette is non-GPU, and the LP has no cassette at all. Nothing in this series takes a graphics card.

For a lot of edge workloads that's fine — the integrated 36 TOPS NPU handles most classification and detection models without a card. But if you've benchmarked your model and it needs a GPU, the Nuvo-11588-PoE runs the same Core Ultra 200S processor, supports a discrete GPU, and costs less than any Nuvo-11000. Send us the model and the frame rate you need and we'll tell you which one fits.

Should I buy the Nuvo-11000 or the Nuvo-9000?

Usually the Nuvo-11000 — it adds a 36 TOPS NPU, PCIe Gen5 storage and faster memory at lower power draw. But the Nuvo-9000 isn't discontinued and isn't strictly slower.

Three things push the other way: on 13th or 14th-Gen processors the 9000 offers 32 threads against the 11000's 24, its dual-slot DE cassette takes a discrete GPU, and the 9000P is the only one with a legacy PCI slot. See the full comparison ↑

How is the Nuvo-11000 different from the Nuvo-11501 or Nuvo-11531?

Same Intel Core Ultra 200S processor, smaller machine. The 11501 and 11531 use a 212 × 165 mm chassis against the Nuvo-11000's 240 × 225 mm, and they're cheaper — starting at $1,150.

What you give up is headroom: 64 GB of memory instead of 128 GB, a 60 °C maximum operating temperature instead of 70 °C, and no PCIe expansion cassette. Compare the platform family ↓

What does a Nuvo-11000 cost?

Barebones systems run from $1,604 for the Nuvo-11006LP to $1,975 for the Nuvo-11006E-PoE-10G. Final price depends on the processor, operating system, MezIO module and accessories.

We don't post memory and storage prices, because those move week to week — we quote them at current cost when we build your configuration rather than padding a listed number. Build a quote →

Do you stock the Nuvo-11000 in the US?

Yes. We're an official US distributor for Neousys and we configure, test and ship from Carmel, Indiana — so you're not waiting on international transit or clearing customs yourself.

We stock the six-port E and LP configurations. Two-port and dual-slot DE variants exist from Neousys but aren't held in inventory; ask us if your build needs one.
