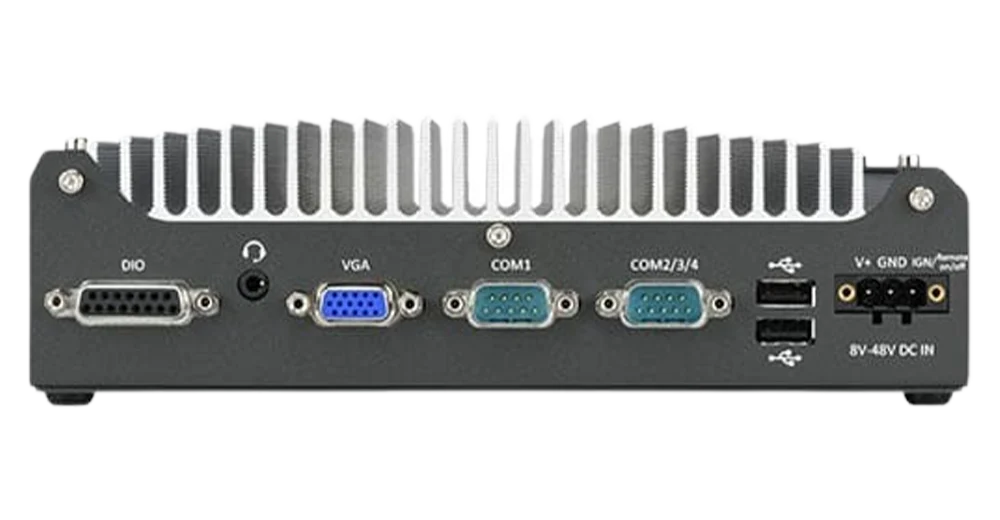

Ports
Detail

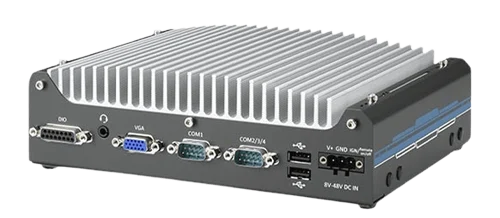

Nuvo-9531 Industrial Fanless PC
30 Years in Business3-Year WarrantyUS-Based Support

Industrial Fanless PC

Nuvo-9531

Intel® 12th-Gen Alder Lake Core™ Compact Fanless Computer with 4x 2.5GbE, 4x USB 3.2 & Hot-Swappable Storage

Processor

Intel® 12th-Gen Core™ i9/i7/i5/i3

Memory

Up to 32GB DDR4 3200

Storage

M.2 NVMe + Hot-Swap SATA

Dimensions

212 × 165 × 63 mm

Configure & QuoteDownload Spec Sheet

Full Specifications

Nuvo-9531 by Neousys — complete technical specifications

System
ProcessorIntel® 12th-Gen Alder Lake Core™ CPU (LGA1700, 35W/65W TDP)
i9-12900E/TE · i7-12700E/TE · i5-12500E/TE · i3-12100E/TE
Pentium G7400E/TE · Celeron G6900E/TE
ChipsetIntel® H610E Platform Controller Hub
GraphicsIntel® UHD Graphics 770 (32 EU)
MemoryUp to 32GB non-ECC DDR4 3200 SDRAM (1x SODIMM)
TPMdTPM 2.0
Storage & Expansion
M.2 NVMe1x M.2 2280 M-Key (PCIe Gen4 x4)
SATA1x 2.5″ hot-swappable tray (7mm HDD/SSD)
Mini PCIe2x full-size slots with internal SIM sockets
Power
Input8-48V DC via 3-pin terminal block
IgnitionOptional ignition power control
Mechanical

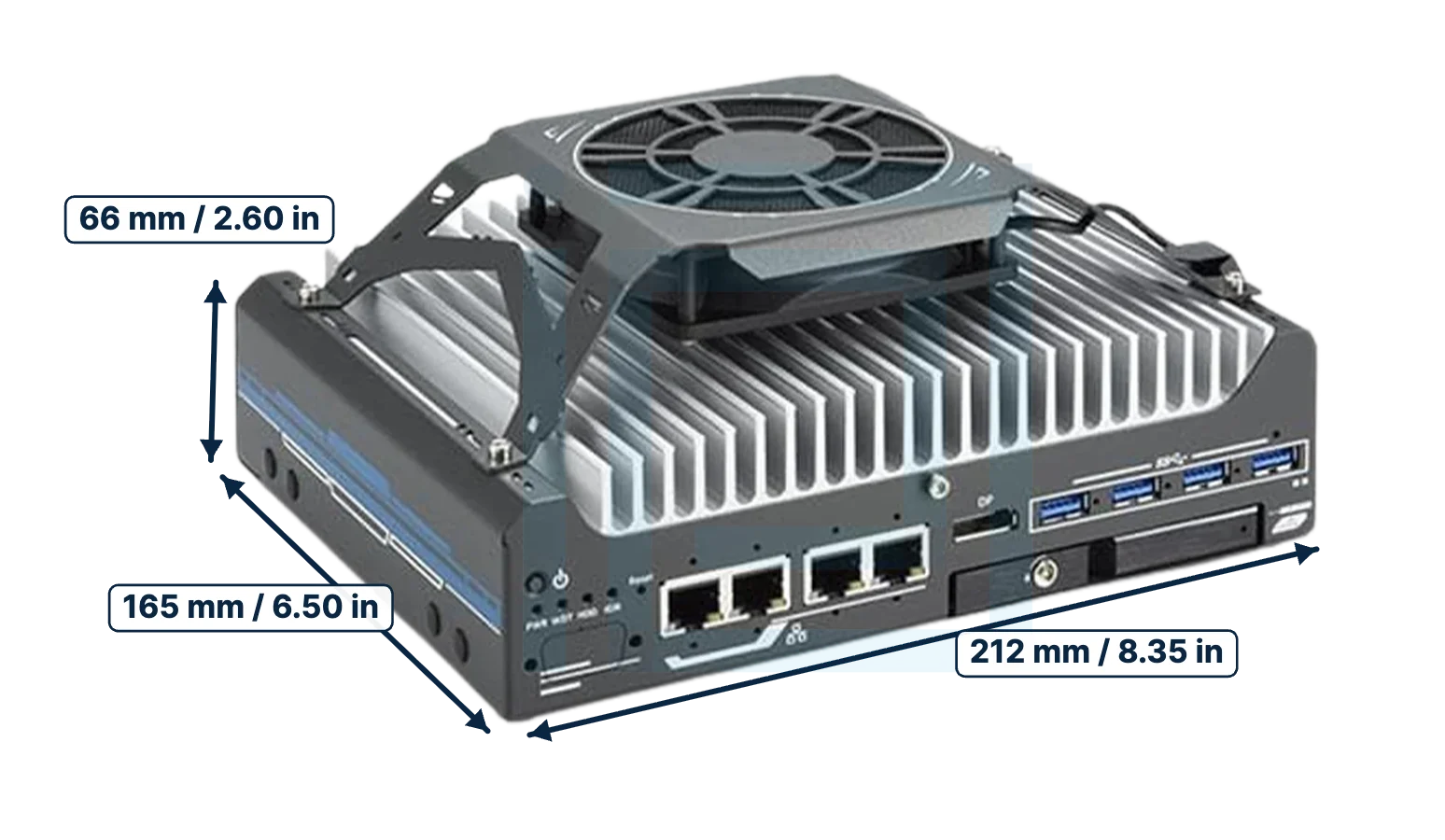

Dimensions212 × 165 × 63 mm (8.3 × 6.5 × 2.5 in)
Weight2.5 kg (5.5 lbs)
MountingWall-mount (standard) · DIN-rail (optional)
I/O & Connectivity
Ethernet4x 2.5GBASE-T (Intel® I226-IT)
PoE+Optional IEEE 802.3at PoE+ PSE, 100W total across 4 ports
Display1x VGA (1920×1200) + 1x DisplayPort (4096×2304)
USB4x USB 3.2 Gen1 (5 Gbps) + 2x USB 2.0
Serial1x RS-232/422/485 (configurable)
3x RS-232 (3-wire) or 1x RS-422/485
Audio1x 3.5mm combo jack (mic + speaker)
Environmental
Operating Temp-25°C to 60°C (with 35W CPU)
Storage Temp-40°C to 85°C
Humidity10-90% RH, non-condensing
VibrationMIL-STD-810G, Method 514.6, Cat 4
ShockMIL-STD-810G, Method 516.6, Proc I
NUVO-9531

TIP: When building your computer, each section allows you to select one option, multiple options, or no option if you’re unsure. Fill out as little or as much information as you know and we’ll take it from there!

LET’S BUILD YOUR INDUSTRIAL PC TOGETHER

TELL US YOUR INDUSTRIAL PC REQUIREMENTS

TIP: When building your quote below, each section allows you to select one option, multiple options, or no option if you’re unsure. Fill out as little or as much information as you know and we’ll take it from there!

Build Your Easy PC Quote

Your selections

Ideal for Applications Like:

🏭

Factory Automation

Machine vision, PLC integration, and real-time process control on the factory floor.

🚛

In-Vehicle Computing

Wide voltage input and vibration resistance for fleet management and mobile workstations.

📹

Surveillance & Security

PoE+ powers IP cameras directly. Four Ethernet ports for multi-camera NVR setups.

Frequently Asked Questions

What CPUs are compatible with the Nuvo-9531?
The Nuvo-9531 supports Intel 12th-Gen Alder Lake processors from Celeron through Core i9, in both standard (35W/65W) and low-power (TE) variants. Industrial PC can pre-install your chosen CPU before shipping.
Can I add PoE+ after purchase?
PoE+ is a factory option that must be specified at time of order. It provides IEEE 802.3at power delivery across all four 2.5GbE ports with a 100W total budget.
How does the hot-swappable storage work?
The front-accessible 2.5" SATA tray allows you to replace drives without powering down. Supports any standard 7mm SATA HDD or SSD.
Is custom configuration available?
Yes. Industrial PC builds every system to order. Choose your CPU, RAM, storage, OS, and accessories. Custom BIOS settings and burn-in testing available on request.

Ready to Build Your Nuvo-9531?

Custom-configured and tested before it ships. Talk to an engineer today.

Request a Quote →
