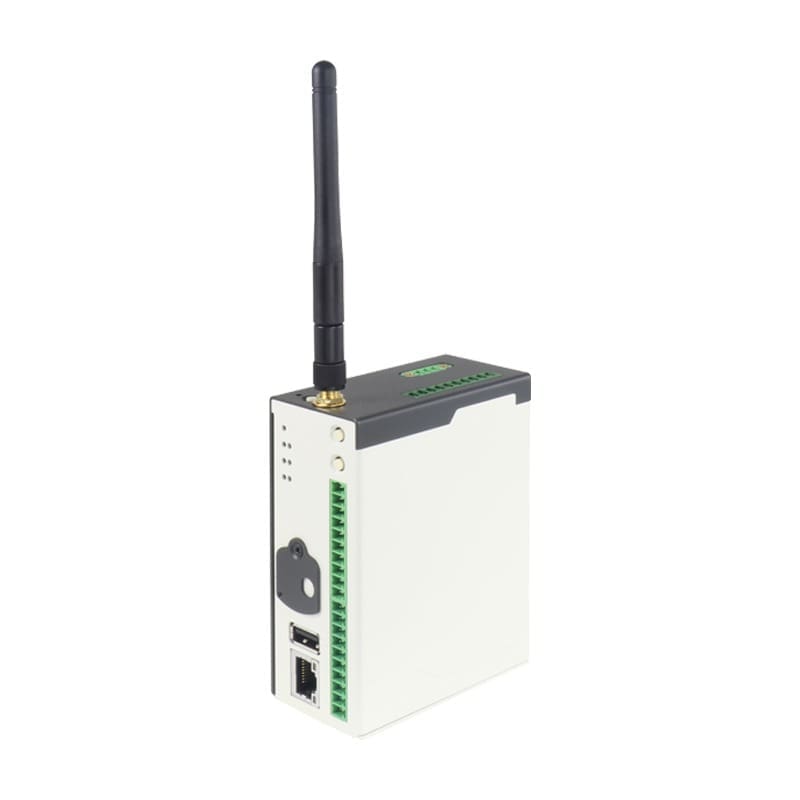

IGT-20

Industrial Grade IoT Gateway

  • Industrial grade ARM-based system with pre-built Debian
  • Compact Size, designed for wireless gateway application
  • Operating temperature from -25°C to 70°C
  • 8 to 25V wide-range DC input
  • Rich Local I/O – USIM Slot, USB, 10/100M LAN, and RS-232/422/485

Specifications

System
Processor TI Sitara AM3352 1GHz Processor
Memory 1GB DDR3L SDRAM
Operating System Debian 8 pre-installed
Front Panel I/O
Ethernet 1x 10/100M Ethernet by Integrated
USB 1x USB 2.0
SD Card 1x external T-flash socket support SDHC
SIM Card 1x external SIM socket
Isolated DIO 4-CH isolated DI and 4-CH isolated DO
Console 1x 3-wire RS-232
User LEDs 6x user-programmable LEDs
User Buttons 2x user-programmable buttons

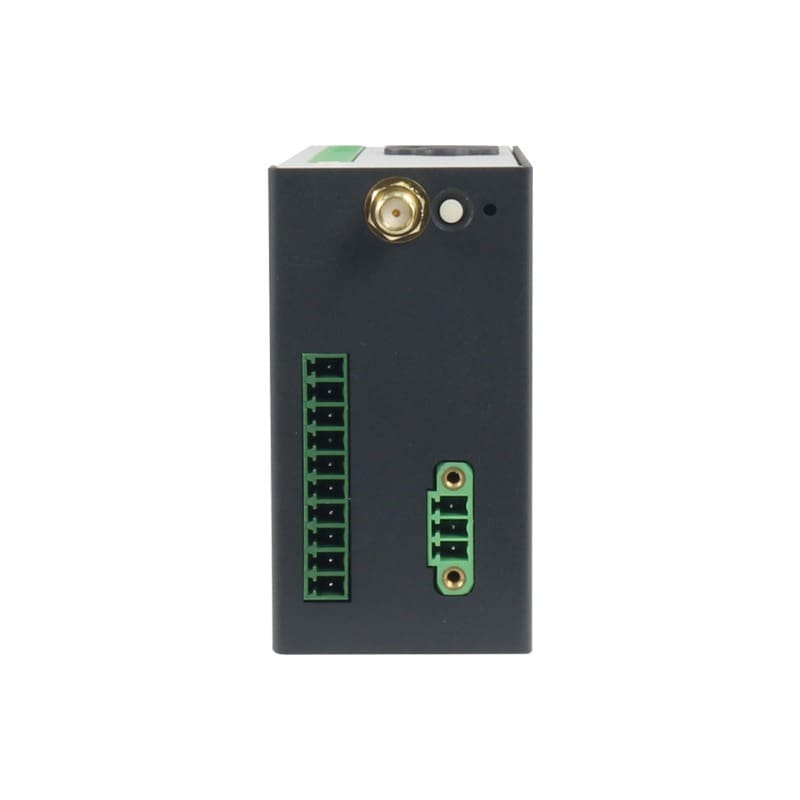

 Top Panel I/O
DC-IN 1x DC-input connector
Power Button 1x power button
Reset Button 1x reset button
Serial 2x Software Configurable RS-232/422/485
Antenna Hole 1x antenna hole for WiFi and 3G/LTE
Storage
SD Card 1x internal T-flash socket support SDHC
Expansion
PCI Express –
PCI –
Mini PCIe 1x Full size mPCIe with USB 2.0 only
Power Supply
Input 8~25V DC
Adapter –
Mechanical
Dimensions 1.61″ (W) x 3.03″ (D) x 4.09″ (H)
Weight 0.88 lbs
Mounting DIN Rail Mount
Environmental
Operating Temperature -25°C ~ 70°C
Storage Temperature –
Humidity –
Vibration 5 Grms
Shock 50 Grms
Certifications CE/FCC Class A
