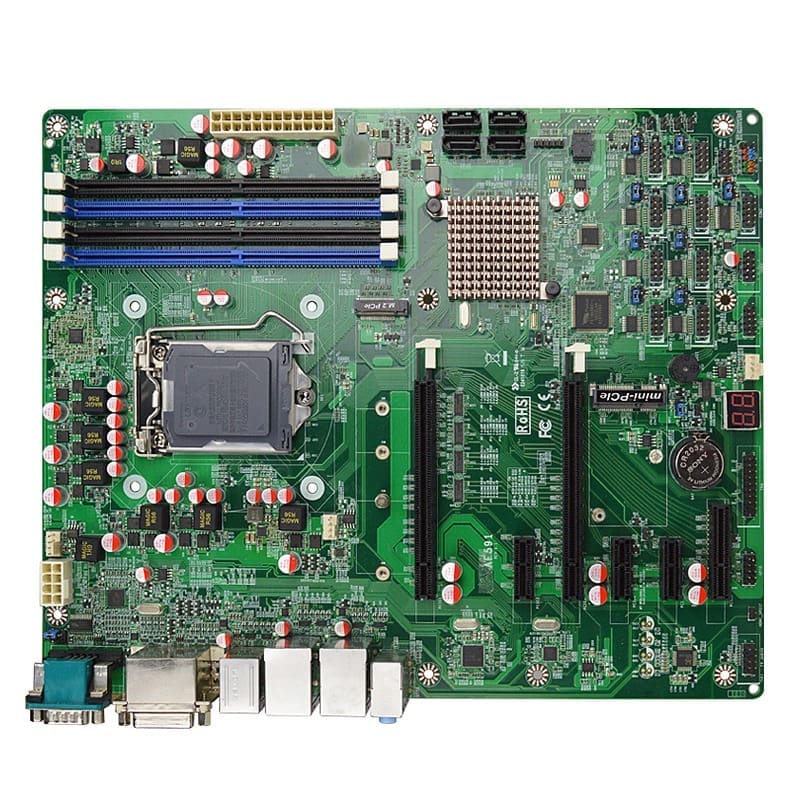

NAF591-Q170

6th Gen. Intel® Core™ i7/i5/i3 ATX Motherboard with 6x PCIe

  • 6th Generation Intel® Core™ i3/i5/i7
  • 2x GbE, 6x USB 3.0, 1x RS-232/422/485
  • 6x PCIe
  • Up to three independent displays – HDMI (up to 4K), DisplayPort (up to 4K), and DVI-D
  • Accomodates 4x SATA Drives for RAID 0/1/5/10 Support
  • Win 7, Win 10 and Linux support
Also available as a 4U Rackmount system
System
CPU Socket LGA1151 for 6th Generation Intel® Core™ i7/i5/i3/Celeron (Skylake)
Intel® Core™ i7-6700 4-Core (3.4/4.0 GHz, 8M, 65W TDP)
Intel® Core™ i5-6500 4-Core (3.2/3.6 GHz, 6M, 65W TDP)
Intel® Core™ i3-6100 2-Core (3.7 GHz, 3M, 51W TDP)
Chipset Q170
BIOS AMI UEFI 128MB SMT Flash ROM
Expansion
PCIe 1x PCIe x16
1x PCIe x16 (x8 bandwidth)
1x PCIe x4
3x PCIe x1
PCI –
Mini PCIe 1x Mini PCIe
Memory
Technology Dual-Channel DDR4-2133 MHz
Max. 64GB
Socket 4x UDIMM
SATA
SATA3 4x SATA3 (6.0Gb/S)
SATA Express 1x SATA Express
RAID RAID 0/1/5/10
M.2 1x M.2 slot (SATA + PCIe 3.0 x4, M-key, 2242/2260/2280/22110)

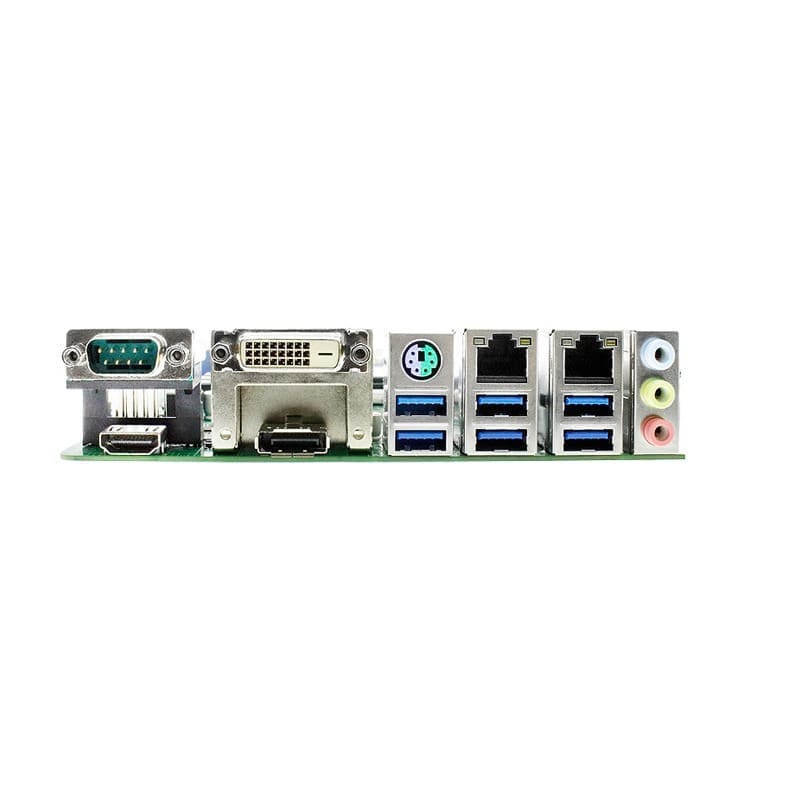

Rear I/O
DVI 1x DVI-D (1920 x 1080 at 60Hz)
HDMI 1x HDMI 2.0 (4096 x 2160 at 60Hz)
DisplayPort 1x DisplayPort 1.2 (4096 x 2304 at 60Hz)
Ethernet 2x GbE (1x I219-LM, 1x I211-AT)
USB 6x USB 3.0
Serial 1x RS-232/422/485
PS/2 1x PS/2
Audio 1x Audio Out
1x Audio In
1x Mic In
Internal I/O
USB 2x USB header for 4x USB 2.0
Serial 8x RS-232
1x RS-232/422/485
GPIO 10-pin GPIO Header
TPM 1x TPM 1.2 Header
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 85°C
Power Requirements
Input PWR ATX PWR (8 + 24)
Power On AT/ATX Supported
– AT : Directly PWR on as power input ready
– ATX : Press button to PWR on after power input ready
OS Support
Windows Windows 7 Pro (32/64-bit)
Windows 8.1 Pro (32/64-bit)
Windows 10 Pro (32/64-bit)
Windows 10 IoT Enterprise (64-bit)
Linux CentOS 7.0
Debian 7.0
Fedora 23
openSUSE 13.2
Ubuntu 15.10
RedHat 7.1
