NAF95-Q87

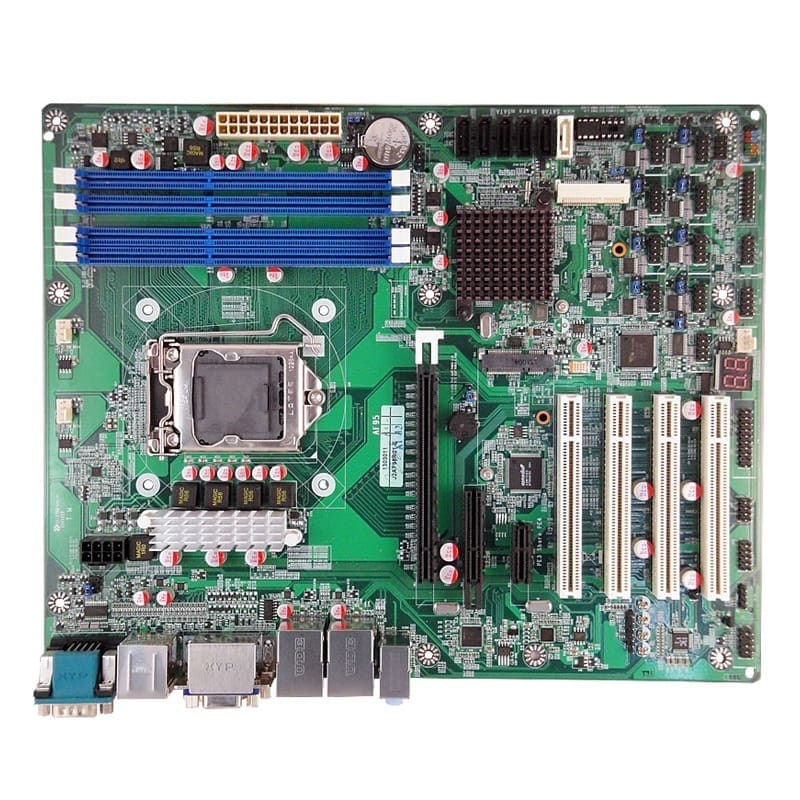

4th Gen. Intel® Core™ i7/i5/i3 ATX Motherboard with 3x PCIe & 4x PCI
- 4th Generation Intel® Core™ i3/i5/i7
- 2x GbE, 2x USB 3.0, 4x USB 2.0
- 3x PCIe, 4x PCI
- Accomodates 6x SATA Drives for RAID 0/1/5 Support
- Win 7 and Win 10 support
Also available as a 4U Rackmount system

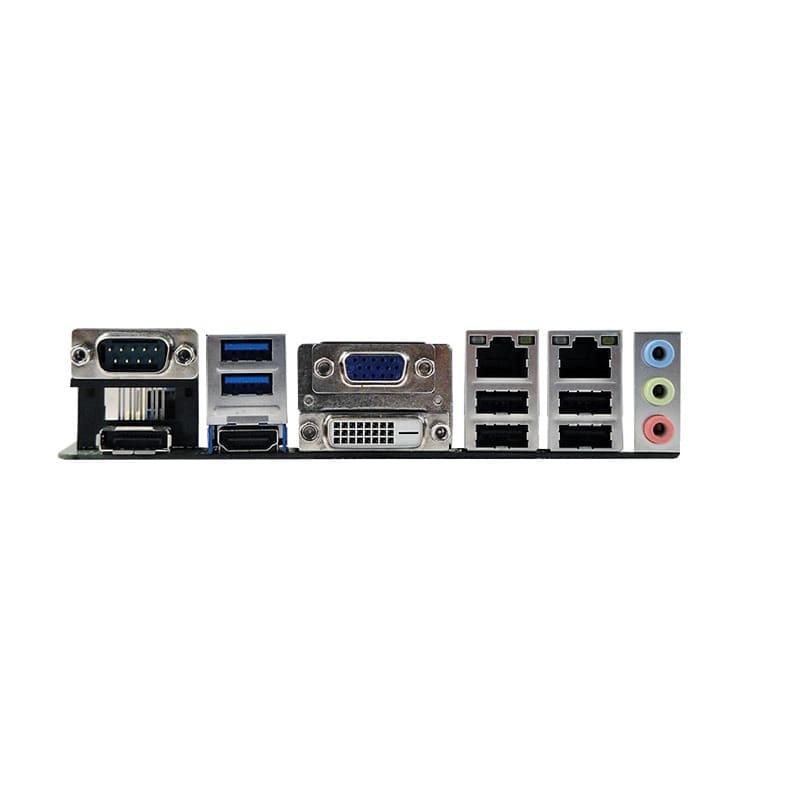

| System | |
| CPU | Socket LGA1150 for Intel® Core™ i7/i5/i3/Celeron (Haswell) |
| Core Number | (By CPU, Max 4) |
| Max Speed | (By CPU) |
| L3 Cache | (By CPU) |
| Chipset | Q87 |
| BIOS | UEFI |
| Expansion | |
| PCI | 4x PCI |
| Mini-PCIe | 1x |
| mSATA | 1x |
| PCIe | 1x PCIe x16 1x PCIe x4 1x PCIe x1 |
| CFast Card Socket | N/A |
| Memory | |
| Technology | Dual Channel DDR3 1066/1333/1600 MHz SDRAM |
| Max. | 32GB |
| Socket | 4x Long-DIMM |
| Graphics | |
| Controller | Intel® HD Graphics (By CPU) |
| VRAM | Shared Memory |
| VGA | 1x VGA |
| LVDS | No |
| HDMI | 1x HDMI |
| DVI | 1x DVI-D |
| DisplayPort | 1x DisplayPort max resolution 2560x1600 |
| MultiDisplay | Yes (Three Display) |
| Ethernet | |
| Ethernet | 10/100/1000 Mbps |
| Controller | GbE LAN1:Intel® 82574L, LAN2: Intel® I217LM (with v-Pro support) |
| Connector | 2x RJ-45 |
| SATA | |
| Max Data Transfer Rate | SATA2 (3.0Gb/S), SATA3 (6.0Gb/S), Supports RAID 0/1/5/10 |
| Rear I/O | |
| VGA | 1x VGA |
| DVI | 1x DVI-D |
| HDMI | 1x HDMI |
| DisplayPort | 1x DisplayPort (Max. 2560 x 1600) |
| Ethernet | 2x GbE |
| USB | 2x USB 3.0 4x USB 2.0 |
| Audio | 1x Audio Out 1x Audio In 1x Mic In |
| Serial | 1x RS-232 |
| eSATA | 0 |
| PS2 | 0 |
| Internal I/O | |
| USB | 2x USB 3.0 4x USB 2.0 |
| LVDS / inverter | 0 |
| VGA | 0 |
| Serial | 8x RS-232 1z RS-232/422/485 |
| SATA | 6x SATA3 (6.0Gb/s), Support RAID 0/1/5/10 |
| mPCIe | 1x |
| Parallel | 0 |
| mSATA | 1x mSATA |
| IrDA | 0 |
| GPIO | 8-bit GPIO |
| TPM Header | 1x TPM 1.2 Header |
| CIR Header | 1x CIR Header |
| PS/2 | 1x PS/2 Mouse/Keyboard Connector |
| Watchdog Timer | |
| Output | Output from super I/O to drag RESETCON# |
| Interval | 10-255 Sec/Min |
| Power Requirements | |
| Input PWR | ATX PWR (8 + 24) |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 85°C |
| OS Support | |
| Windows | Windows 7 Pro (32/64-bit) Windows 8.1 Pro (32/64-bit) Windows 10 Pro (32/64-bit) |
| Linux | - |
