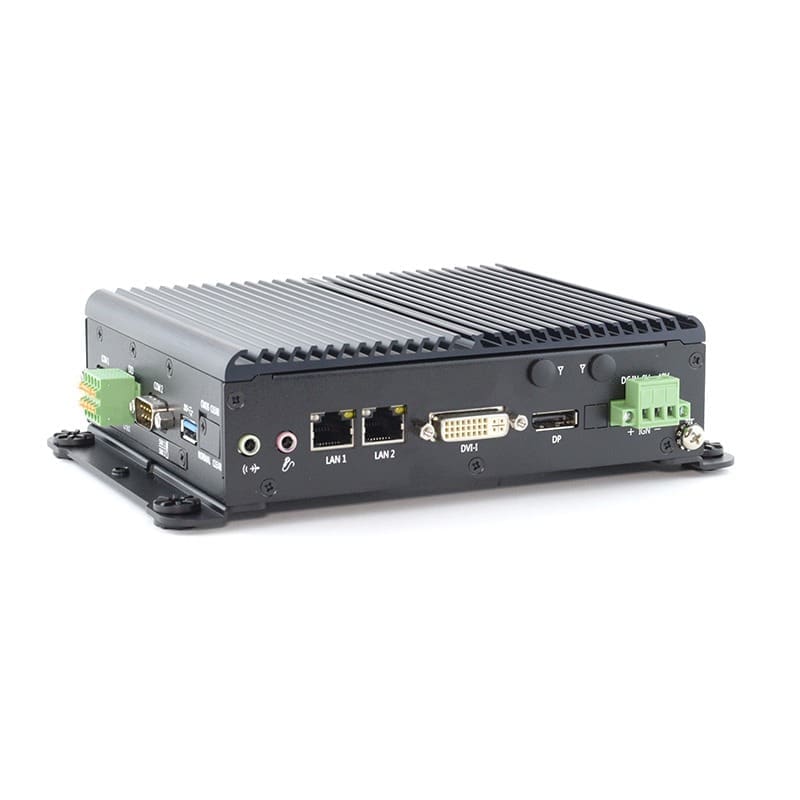

| System | |
| Processor |
Intel® Celeron® Bay Trail J1900 (2.42 GHz, 2M)
|
| Chipset | n/a |
| Graphics | Integrated Intel® HD Graphics |
| Memory | Up to 8GB SO-DIMM DDR3L |
| I/O | |
| Ethernet | 3x GbE (2x Intel® i210-AT, supporting Wake-on-LAN and PXE) |
| Video | 1x DisplayPort (Max. 1920 x 1200) 1x DVI-I (Max. 1920 x 1200) |
| USB | 4x USB 2.0 1x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Audio | 1x Audio Out 1x Mic In 1x Line Out |
| GPIO | 4x Isolated DI and 4x Isolated DO, 10-pin Terminal Block |
| Storage | |
| SATA | 1x Removable SATA Bay for 2.5″ SSD/HHD |
| mSATA | 1x full-size mSATA (shared by Mini-PCIe and CFast) |
| CFast | 1x CFast Socket (shared by mSATA) |
| Expansion | |
| Mini PCIe | 1x full-size Mini-PCIe socket (mux with mSATA) 1x full-size mini-PCIe |
| Power Supply | |
| Input | 9~48V DC with 3-pin terminal block connector |
| Power Mode | AT/ATX |
| Power Ignition | Power Ignition Sensing |
| Protection | Over Voltage Protection (OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
| Adapter | 60W Power Adapter (optional) |
| Mechanical | |
| Dimensions | 6.61″ (W) x 5.31″ (D) x 1.85″ (H) |
| Weight | 2.43 lbs |
| Mounting | Wall Mount DIN-Rail Mount (optional) |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C |
| Storage Temperature | -40°C ~ 80°C |
| Humidity | 10~90%, Non-condensing |
| Vibration | 5 Grms, 5-500 HZ, 3 axis |
| Shock | 50 Grms, Half-sine 11 ms |
| Certifications | CE/FCC Class A |
