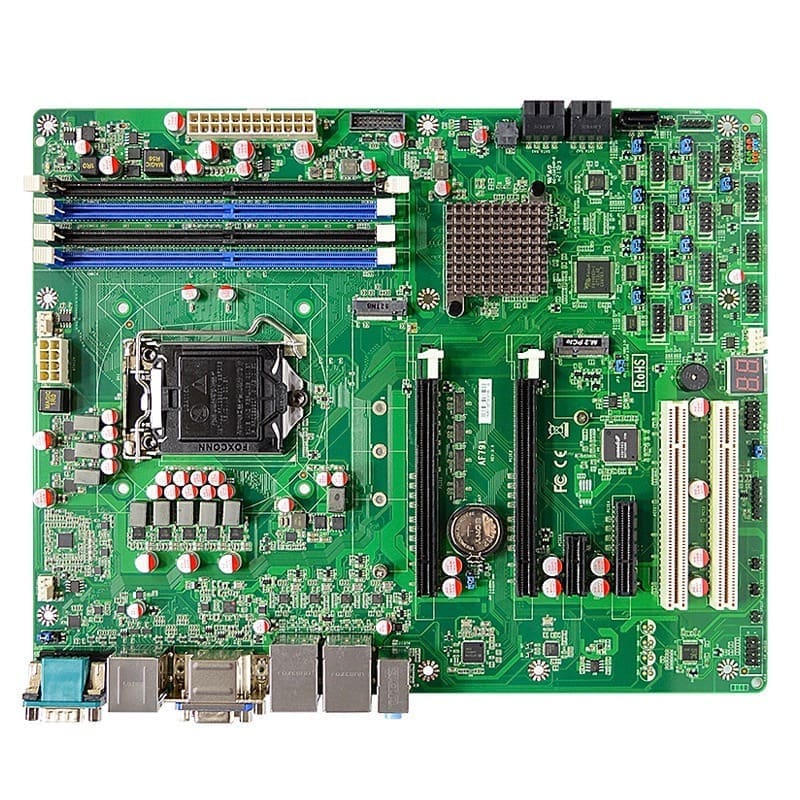

NAF791-Q370

8th Gen. Intel® Core™ i7/i5/i3 ATX Motherboard with 4x PCIe & 2x PCI

  • 8th Generation Intel® Core™ i3/i5/i7
  • 2x GbE, 6x USB 3.0, 1x RS-232/422/485
  • 4x PCIe, 2x PCI
  • Up to three independent displays – HDMI (up to 4K), DisplayPort (up to 4K), VGA, and DVI-D
  • Accommodates 5x SATA Drives for RAID 0/1/5/10 Support
  • Win 10 and Linux support
Also available as a 4U Rackmount system
System
CPU Socket LGA1151 for 8th/9th Generation Intel® Core™ i7/i5/i3/Pentium (Coffee Lake)
Intel® Core™ i7-8700 6-Core (3.2/4.6 GHz, 12M, 65W TDP)
Intel® Core™ i5-8500 6-Core (3.0/4.1 GHz, 9M, 65W TDP)
Intel® Core™ i3-8100 4-Core (3.6 GHz, 6M, 65W TDP)
Chipset Q370
BIOS AMI UEFI 128MB SMT Flash ROM
Expansion
PCIe 1x PCIe x16
1x PCIe x16 (x8 bandwidth)
1x PCIe x4
1x PCIe x1
PCI 2x PCI
M.2 1x M.2
Memory
Technology Dual-Channel DDR4-2666 MHz
Max. 64GB
Socket 4x UDIMM
SATA
SATA3 5x SATA3 (6.0Gb/S)
RAID RAID 0/1/5/10
M.2 1x M.2 slot (SATA + PCIe 3.0 x4, M-key, 2242/2260/2280/22110)
Internal I/O
USB 1x USB header for 2x USB 3.1 Gen 1 (5 Gb/s)
2x USB header for 4x USB 2.0
Serial 8x RS-232
1x RS-232/422/485
GPIO 10-pin GPIO
TPM TPM 2.0 (optional)
Rear I/O
VGA 1x VGA (1920 x 1200 at 60Hz)
DVI 1x DVI-D (1920 x 1080 at 60Hz)
HDMI 1x HDMI 1.4 (4096 x 2160 at 30Hz)
DisplayPort 1x DisplayPort 1.2 (4096 x 2304 at 60Hz)
Ethernet 2x GbE (1x I219-LM, 1x I211-AT)
USB 4x USB 3.1 Gen 2 (10 Gb/s)
2x USB 3.1 Gen 1 (5 Gb/s)
Serial 1x RS-232/422/485
Audio 1x Audio Out
1x Audio In
1x Mic In
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 85°C
Power Requirements
Input PWR ATX PWR (8 + 24)
Power On AT/ATX Supported
– AT : Directly PWR on as power input ready
– ATX : Press button to PWR on after power input ready
OS Support
Windows Windows 10 Pro (64-bit)
Windows 10 IoT Enterprise (64-bit)
Linux Fedora 28.1.1
openSUSE Leap 15.0
Ubuntu 18.04
CentOS 7_1804
