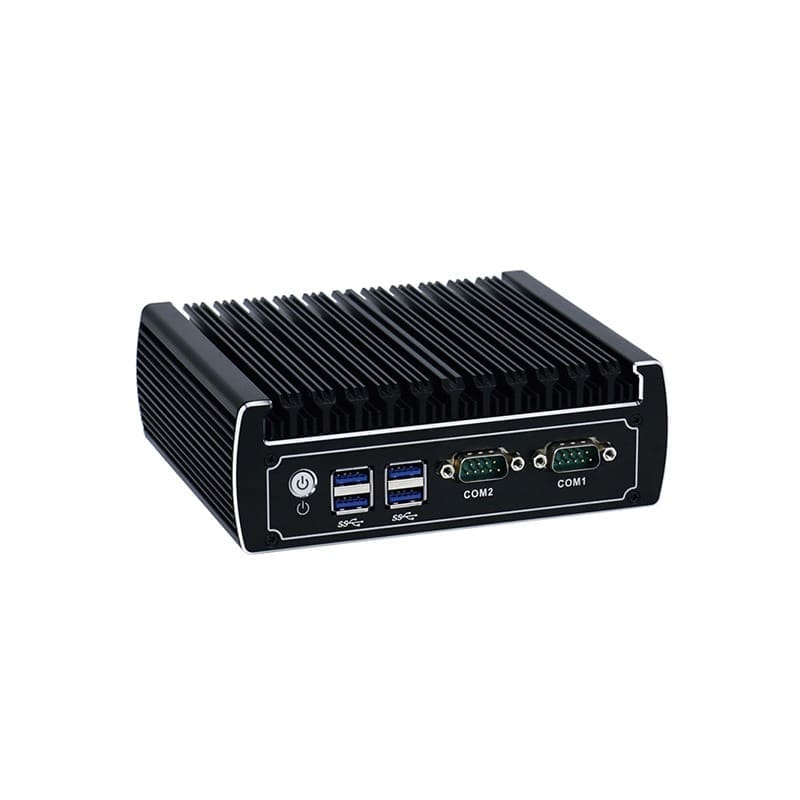

IPC-501

Compact, Dual-Core Intel® Core™ i3/i5 Fanless Computer

7th Generation Intel® Core™ i3 or i5 Processor
Dual-Core Skylake i3-7100U or i5-7200U processor.
Compact Fanless Chassis
Wall mountable fanless chassis with a temperature rating of -10°C to 50°C.
Dual Display
DisplayPort and HDMI ports for extended or duplicate displays.
Windows and Linux Support
Tested with Windows 7 Pro, Windows 8 Pro, Windows 10 Pro, and Linux operating systems.

Specifications

SYSTEM
Processor Intel® Core™ i3-7100U (2.4 GHz, 3M) – 2 Cores
Chipset SoC
Memory Up to 16GB SD-DDR4
VIDEO
Integrated Graphics Intel® HD Graphics 520
HDMI 1x HDMI
DisplayPort 1x DisplayPort
Multi-Display Support Y
I/O
Ethernet 2x GbE
USB 2x USB 2.0
4x USB 3.0
Serial 2x RS-232
Audio 1x Out
EXPANSION
Mini PCIe 1x Mini PCIe
STORAGE
SATA 1x SATA for Internal 2.5″ SSD/HDD
POWER SUPPLY
Input 12V DC with barrel power connector
Adapter 12V/5A power adapter
MECHANICAL
Dimensions 6.10″ x 4.98″ x 2.07″
155 mm x 126.5 mm x 52.5 mm
Weight 3.53 lbs
1.6kg
Mounting Wall
ENVIRONMENTAL
Operating Temperature -10°C ~ 50°C with SSD
Storage Temperature -10°C ~ 50°C
Humidity 0 ~ 95%, non-condensing
Vibration Other
Shock Other
Certifications CE, FCC
OPERATING SYSTEM
OS Support Win7Pro, Win7ES, Win8Pro, Win10Pro, Win10IoT, Ubuntu, Linux
Processor

Dual-Core Intel® Core™ i5-7000

Operating System

Windows 10 Pro (64-bit), Windows 7 Pro (32-bit), Windows 7 Pro (64-bit)
